Erie water treatment pHneutralizer Series Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

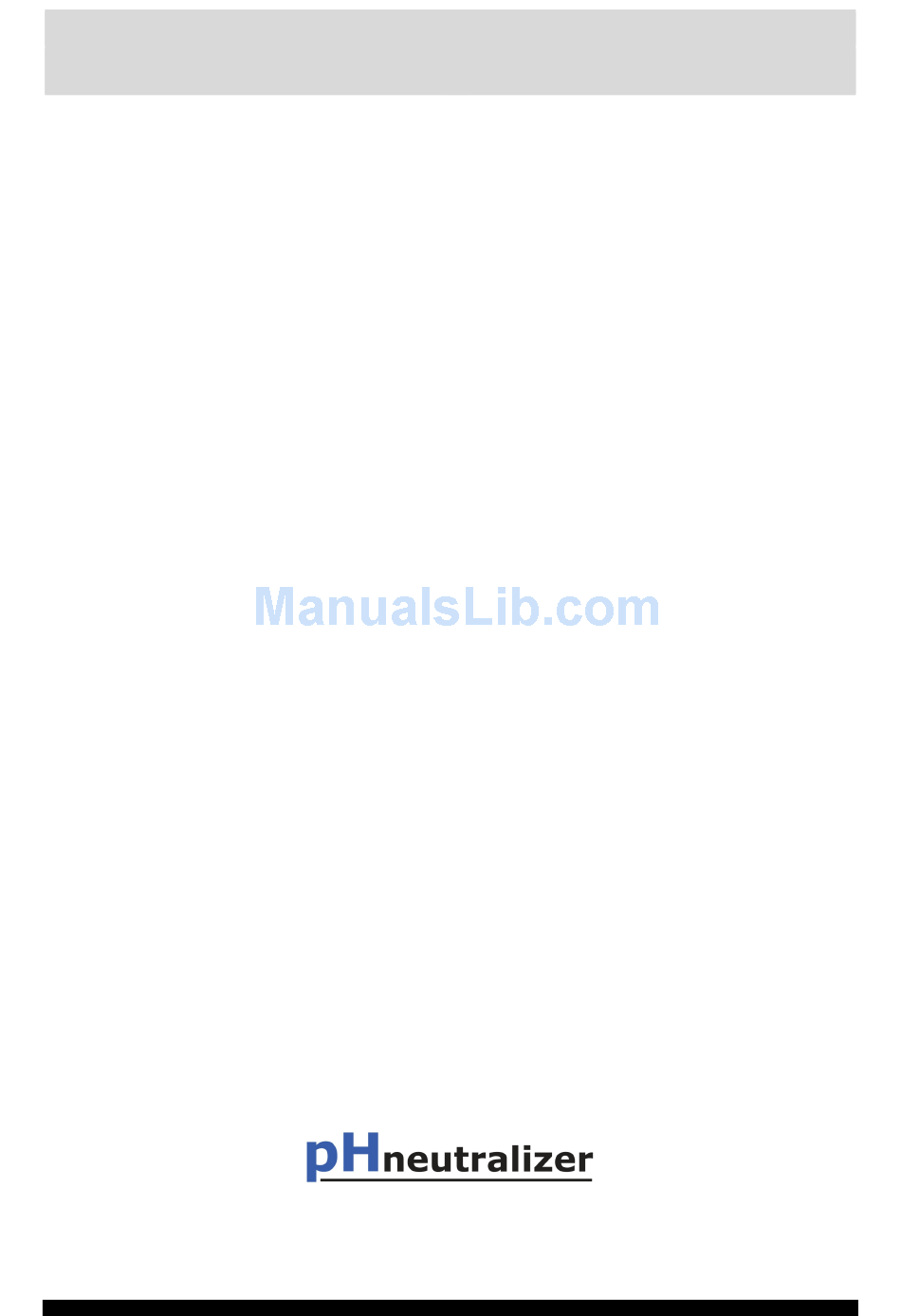

Technical Manual
WATER FILTER - pH correction
© 2014 erie water treatment
TM-EN-pHneutralizer-Rev2014.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pHneutralizer Series and is the answer not in the manual?

Questions and answers

Related Manuals for Erie water treatment pHneutralizer Series

Summary of Contents for Erie water treatment pHneutralizer Series

  • Page 1 Technical Manual WATER FILTER - pH correction © 2014 erie water treatment TM-EN-pHneutralizer-Rev2014.06...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Table of content ........................Page 2 Warning & Safety instructions ....................Page 3 Operating conditions & Requirements .................Page 4 Assembly..........................Page 5 Installation ...........................Page 6 Start-up ..........................Page 7 Electronic control panel .......................Page 8 Maintenance ........................Page 12 Hydraulic flow diagrams .......................Page 14 Troubleshooting ........................Page 15 Electrical wiring diagram ......................Page 16 Default parameter settings ....................Page 17...

  • Page 3: Warning & Safety Instructions

    WARNING & SAFETY INSTRUCTIONS Before you begin the installation of the water filter, we advise you read  and carefully follow the instructions contained in this manual. It contains important information about safety, installation, use and maintenance of the product. The actual system that you have received, may differ from the pictures/illustrations/descriptions in this Technical Manual.

  • Page 4: Operating Conditions & Requirements

    OPERATING CONDITIONS & REQUIREMENTS APPLICATION LIMITATIONS:   incoming pH: pHneutralizer: 6,0 - 7,0 pHneutralizer : 5,0 - 6,0 If the pH of the incoming water is below the stated levels, insufficient correction of the pH may occur, i.e. the pH at the outlet of the water filter may not be raised as expected.

  • Page 5: Assembly

    ASSEMBLY  For ease of transportation and installation, the filter media is NOT loaded in the pressure tank, but delivered in separate bags of 1 Cuft; it must be loaded on-site, after positioning of the pressure tank.  The gravel underbedding is already preloaded in the pressure tank.

  • Page 6: Installation

    INSTALLATION INLET & OUTLET DRAIN   Check the water pressure at the place of installation of We recommend the use of a stand pipe with air trap. the water filter; it should never exceed 8,3 bar.  To prevent backflow from the sewerage system into the ...

  • Page 7: Start-Up

    START-UP PRESSURIZING 1. Make sure the bypass system is in 'bypass' position. 2. Make sure the electronic controller of the water filter is in service mode. 3. Open the mains water supply. 4. Open a cold treated water faucet nearby the water filter and let the water run for a few minutes until all air is purged and all foreign material that may have resulted from the installation is washed out;...

  • Page 8: Electronic Control Panel

    ELECTRONIC CONTROL PANEL Picture 5 REGENERATION MODE In regeneration mode the display shows the remaining symbol button function regeneration time and the remaining cycle time: to advance to the next SCROLL parameter Rgn:123 CycY:456 to increase the value of the parameter The control valve can be reset to service mode at any time by to decrease the value of the...
  • Page 9 ELECTRONIC CONTROL PANEL PROGRAMMING INSTRUCTIONS – INSTALLER  Before entering the programming mode, make sure that the control valve is in the service mode. 1. Press the scroll button; the display will show: Language:English Press the up or down button to set the ...
  • Page 10 ELECTRONIC CONTROL PANEL PROGRAMMING INSTRUCTIONS - PARAMETER SET LEVEL  All configuration parameters on this water filter have been pre-programmed in the factory, to offer optimal performance in a wide range of applications and situations. See table at the end of this manual for default factory parameter settings.
  • Page 11 Page 11...

  • Page 12: Maintenance

    MAINTENANCE ROUTINE CHECKS FILTER MEDIA Regularly the user should perform a basic check to verify if the The filter media inside this water filter consists of 'self- water filter is functioning correctly, on the basis of the sacrificing' minerals, that dissolve in the acidic water to raise following control points: its pH to neutral level.
  • Page 13 MAINTENANCE SANITIZING THE WATER FILTER This water filter is manufactured from premium quality material and assembled in safe conditions to assure it is clean and sanitary. If installed and serviced correctly, this water filter will not infect or contaminate your water supply. However, as in any 'device' plumbed-in in your water distribution system, a proliferation of bacteria is possible, especially in case of 'stagnant water'.

  • Page 14: Hydraulic Flow Diagrams

    HYDRAULIC FLOW DIAGRAMS SERVICE BACKWASH PURGE Page 14...

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Untreated water to Open or defective bypass Close or replace bypass service Water filter in regeneration Wait until regeneration finishes or manually advance regeneration to end Valve body and timer out of synchronisation Synchronise valve body and timer Low level of filter media Replenish filter media Excessive service flow rate...

  • Page 16: Electrical Wiring Diagram

    ELECTRICAL WIRING DIAGRAM    = position switches   = power lead   = drive motor   = auxilliary contact (24V, max. 500mA)   = key pad Page 16...

  • Page 17: Default Parameter Settings

    DEFAULT PARAMETER SETTINGS Model pHneutralizer pHneutralizer Filter media, quantity (Cuft - Ltr) 1 - 28 1,5 - 42 1 - 28 1,5 – 42 Interval (days) Cycle 1: BACKWASH (min) Cycle 2: SLOW RINSE (min) Cycle 3: PURGE (min) Regen @ 0:00 0:00 0:00...

  • Page 18: Exploded View - System

    EXPLODED VIEW - SYSTEM Page 18...
  • Page 19 EXPLODED VIEW - SYSTEM Item Description Remark PT/1040/BA/DH Pressure tank 10x40 1 Cuft  PT/1054/BA/DH Pressure tank 10x54 1,5 Cuft  39042 Calcite multiple of 0,5 Cuft   39043 Calcite/Corosex (70-30% mix) multiple of 0,5 Cuft A1000 Gravel (4,3 kg) to be ordered per kg 38534 Riser tube assembly...

  • Page 20: Exploded View - Timer Head

    EXPLODED VIEW - TIMER HEAD Page 20...
  • Page 21 EXPLODED VIEW - TIMER HEAD Item Description Remark 70971 Power lead with plug  72263 Clamp 28/244/1 Plug (large) 71502 Screw, timer cover (3x) 15/222 Screw, back plate (2x) 70962 Back plate 2100/206 Drive shaft 15/222 Screw, drive motor assy (2x) 28/245/4 Cable clamp 71502...

  • Page 22: Exploded View - Valve Body

    EXPLODED VIEW - VALVE BODY Page 22...
  • Page 23 EXPLODED VIEW - VALVE BODY Item Description Remark 21/83 Drain connection 568/271/N Backwash flow control N (22,7 Ltr/min) 72678 Bolt, valve cover (6x) 568/254/3 Valve cover 185/154/1 O-ring, valve cover 186/112 O-ring, Teflon 72327 Washer, PE 568/260 Worm gear 568/259 Rotor cam 185/041/1 O-ring, rotor...

  • Page 24: Technical Data

    TECHNICAL DATA Technical specifications: Model pHneutralizer pHneutralizer Filter media, quantity (Cuft - Ltr) 1 - 28 1,5 - 42 1 - 28 1,5 – 42 Operating pressure min/max (bar) 2,0/8,3 Operating temperature min/max (°C) 4/38 Electrical connection (V/Hz) 230/50 Max. power consumption (VA) Hydraulic connection inlet/outlet 1”...
  • Page 25 © 2012 Aquion, Inc. PP-Neutralizer-Rev2014.03...
  • Page 26 © 2012 Aquion, Inc. PP-Neutralizer-Rev2014.03...
  • Page 27 © 2012 Aquion, Inc. PP-Neutralizer-Rev2014.03...
  • Page 28 © 2012 Aquion, Inc. PP-Neutralizer-Rev2014.03...
  • Page 29 AQUION, INC. Lammerdries-Oost 30c B-2250 Olen Belgium  +32 (0) 14-28.51.71  +32 (0) 14-28.51.70 RPR/RPM Turnhout BWT/TVA/VAT BE 0882.738.206  infobelgium@eriewatertreatment.com  www.eriewatertreatment.com...
