Summary of Contents for Futek IAA300

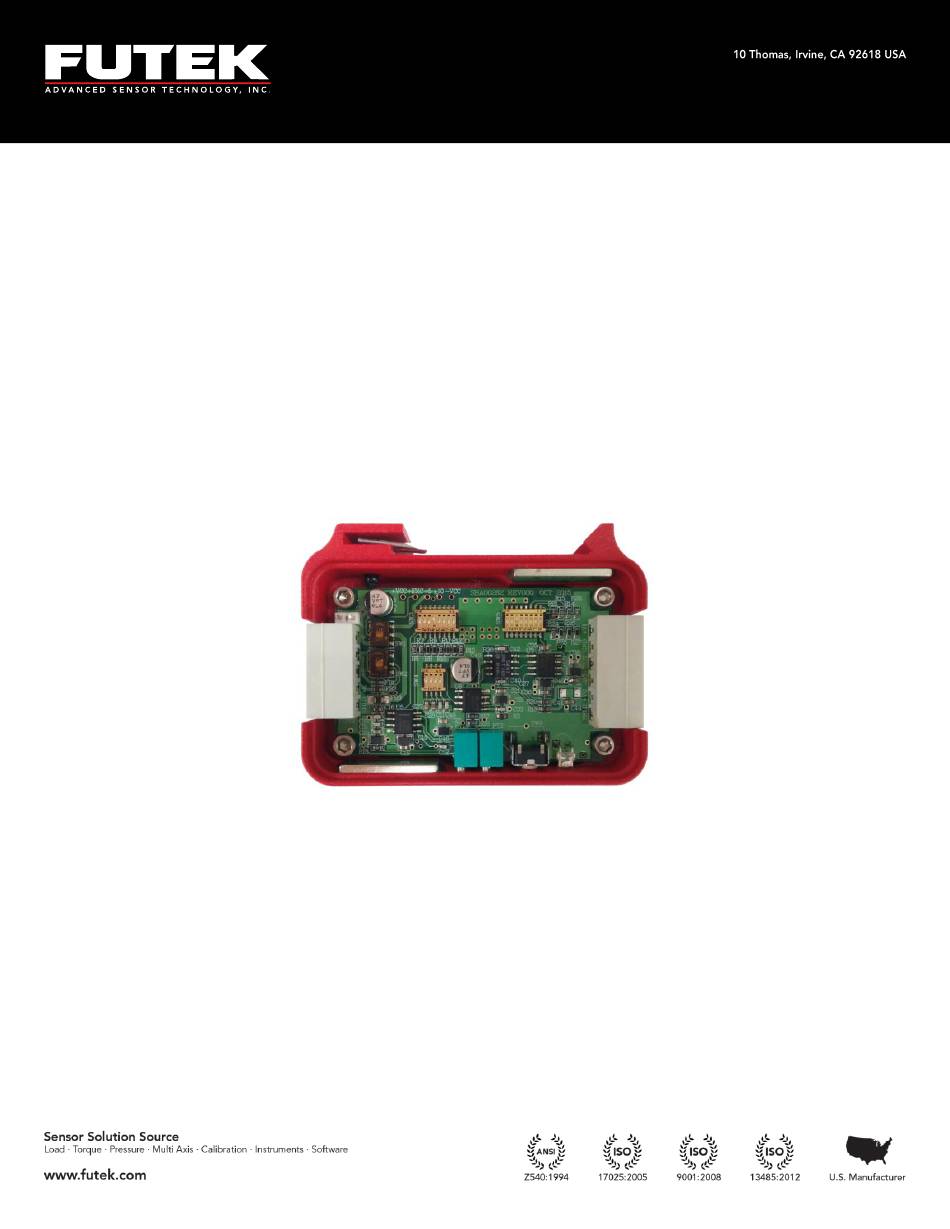

- Page 1 Tel: (949) 465-0900 Fax: (949) 465-0905 IAA300 Product Manual...
-
Page 2: Table Of Contents
Tel: (949) 465-0900 Fax: (949) 465-0905 Table of Contents Default Settings ..........................3 Connections ..........................3 Standard Span & Zero Adjustment ................... 4 Shunt Readings ..........................5 Switch Configurations ......................... 6 Excitation ........................... 6 Polarity ............................7 Gain ............................7 Bandwidth .......................... -
Page 3: Default Settings
Tel: (949) 465-0900 Fax: (949) 465-0905 Default Settings Input Range: +/-2 mV/V Excitation Voltage: 10 VDC Output Range: +/-10 VDC Shunt: 60.4 kΩ Connections Sensor Side 5 Position Screw Terminal Wiring Code Shield +Excitation +Signal Pin 1 -Signal -Excitation 6 Position Screw Terminal... -
Page 4: Standard Span & Zero Adjustment
Standard Span & Zero Adjustment Once all of the connections are complete, you can begin to set up the sensor/amplifier system. You will need to have the output from the IAA300 connected to a device so you can read the voltage. -
Page 5: Shunt Readings
2. Flip the correct DIP switches to attain the corresponding value 3. Press the Shunt pushbutton 4. While the shunt is enabled and the IAA300 is reading the simulated load, adjust the span (described above) to the correct output. Ex. If you are using a 2 mV/V sensor with a 350 Ω bridge and the default 60.4 kΩ... -
Page 6: Switch Configurations
Excitation There are two excitation values available on the IAA300: 10 VDC (default), and 5 VDC. To select the excitation, simply flip the DIP switch to the appropriate configuration. The excitation voltage controls the maximum output of the amplifier. -
Page 7: Polarity
DIP switch to the appropriate configuration. Ex. If you are using your IAA300 with a tension and compression load cell and you have tension setup as the positive direction, but now you would like to have compression as the positive direction, all you have to do is flip the DIP switch from the default polarity position (straight) to the reverse polarity position. -
Page 8: Bandwidth
Tel: (949) 465-0900 Fax: (949) 465-0905 Bandwidth There are five bandwidth settings available on the IAA300: 100 Hz, 1 kHz (default), 10 kHz, 25 kHz, and 50 kHz. To select the bandwidth, simply flip the DIP switches to the appropriate configuration. -
Page 9: Advanced Span And Zero Adjustment
However, it sometimes happens that the rated output from the sensor is not exactly 2.0 mV/V or 3.0 mV/V. The IAA300 has a ±10% of R.O. adjustment range so a sensor with an output close to one of the input ranges will work fine. -
Page 10: Appendix A (Specifications)
Tel: (949) 465-0900 Fax: (949) 465-0905 Appendix A (Specifications) Electrical Specifications Parameter Typical Unit Power Supply 12.5 Current Consumption Output Impedance Ohms Sensor Impedance 5000 Ohms Bandwidth (Setting 1) Bandwidth (Setting 2) 1000 Bandwidth (Setting 3) 10000 Bandwidth (Setting 4) 25000 Bandwidth (Setting 5) 50000...
