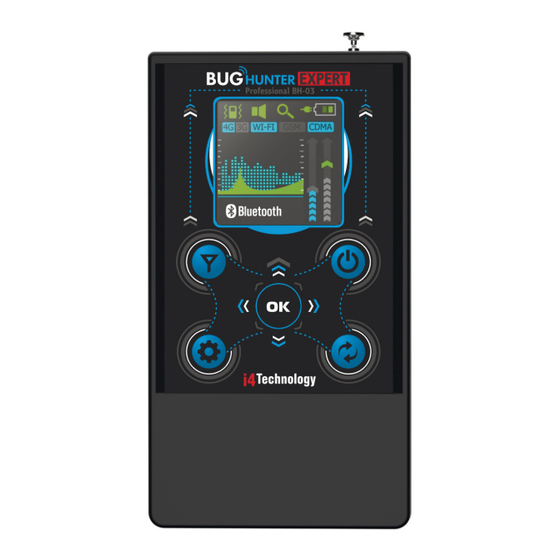

- Page 1 Anti-spy bug detector BugHunter Professional BH-03 Expert OPERATIONS MANUAL INTK.411153.006 RE...
-
Page 2: Table Of Contents
Anti-spy bug detector BugHunter Professional BH-03 Expert CONTENTS Introduction Speci cation and operation Application area Technical features Device components Internal design and operating Correct use Operating restrictions Before operating Intended usage Maintenance Troubleshooting Package and transportation Acceptance certi cate Manufacturer’s warranty... - Page 3 This operating manual is to get you acquainted with the construction, rules of operation (intended usage, technical maintenance, repair process, storage) of bug detector BugHunter Professional BH-03 Expert (hereafter referred to as the Product). The product is a device, intended to detect near eld radio transmitters such as wireless “bugs”, wireless microphones, wireless spy cams, portable radio sets, working cellphones,...
- Page 4 Anti-spy bug detector BugHunter Professional BH-03 Expert Main advantages of BugHunter Professional BH-03 Expert over similar devices: 1. The declared and real characteristics of the device are in strict conformity. 2. It covers the entire range of wireless “bugs” working frequencies (from 10 to 3500 MHz).
- Page 5 Anti-spy bug detector BugHunter Professional BH-03 Expert Attention! Read carefully this manual in order to provide continuous, successful and safe operation of the purchased product. Follow the rules, restrictions and instructions contained in this manual to increase the lifespan of the device and to use it more e ectively.
-
Page 6: Speci Cation And Operation
Anti-spy bug detector BugHunter Professional BH-03 Expert 1. Speci cation and operation 1.1 Application area 1.1.1 This device allows users to monitor the signal strength ranging from 10 to 3500 MHz and can also be used to detect transmitting devices, such as “bugs”, wireless microphones, wireless spy cams, portable radio sets, working cellphones, cellular signal killers and suppressors, etc., within the area nearby. -
Page 7: Technical Features
Anti-spy bug detector BugHunter Professional BH-03 Expert 1.1.3 Device is intended to be used at the temperature ranging from -10 to +40° , the relative moisture below 98% at the temperature of +25° and at the atmospheric pressure of 84-106,7 kPa. -
Page 8: Device Components
Anti-spy bug detector BugHunter Professional BH-03 Expert 1.2.2 The table below gives the information of the Product’s technical features. Table 1 Description Value Dimensions, mm, not more than 105 58 18,5 0,11 Weight with batteries, kg, max DC supply voltage (two AAA batteries), V... -
Page 9: Internal Design And Operating
Anti-spy bug detector BugHunter Professional BH-03 Expert 1.4 Internal design and operating 1.4.1 BugHunter Professional BH-03 Expert is a portable device that has an autonomous power supply. The case made of impact-resistant ABS plastic (item 1) has a battery compartment (item 2) with a battery cover (item 3).There are also membrane keyboard with 9 push-buttons (item 4), OLED-display (item 5) and micro-USB connector (item 6) for the charging unit placed in the case. - Page 10 Anti-spy bug detector BugHunter Professional BH-03 Expert 1.4.2 Picture 3 illustrates the display in the “search mode”. During the measurement process, the average (item 1) and peak (item 2) values of the received signal strength are being constantly displayed on the screen. The displaying is performed in logarithmic representation, on a selected sensitivity range scale, and as a graph of values for the last 5 seconds.
- Page 11 Anti-spy bug detector BugHunter Professional BH-03 Expert 1.4.3 The control buttons are used to: - turn the device on/o (by holding), and exit from a menu (by short pressing); - switch to the main settings menu and back (by short pressing);...
-
Page 12: Correct Use
Anti-spy bug detector BugHunter Professional BH-03 Expert 2. Correct use 2.1 Operating restrictions 2.1.1 Keep the battery compartment and battery contacts clean. 2.1.2 Change discharged batteries and recharge accumulators on time. 2.1.3 Before recharging accumulators installed into the product’s case, ensure that there are rechargeable batteries not the galvanic batteries installed. - Page 13 Anti-spy bug detector BugHunter Professional BH-03 Expert The device will switch to the “search” mode and the screen will look like in the Pic. 6. 841.13 MHz Pic. 6 Screen in the “search” mode Press and hold button for 2 seconds again to turn the device o .
- Page 14 Anti-spy bug detector BugHunter Professional BH-03 Expert - select «FILTERS» bar by pressing and con rm your choice by pressing button; - in the opened submenu (Pic. 8) select the lter you need and activate/deactivate it by pressing ( lter marker will change);...
- Page 15 Anti-spy bug detector BugHunter Professional BH-03 Expert 2.3.2.2 Sound adjustment This option gives an opportunity of selecting one of three available sound modes: 1) mute (internal speaker produces no sound while searching and setting up the device; while pressing buttons the con rmation sound is not produced also);...
- Page 16 Anti-spy bug detector BugHunter Professional BH-03 Expert Noti cation: 1. There is a prior mode demonstration while selecting a sound mode by pressing buttons. 2. An icon of selected sound mode is displayed in the top bar of the screen:...
- Page 17 Anti-spy bug detector BugHunter Professional BH-03 Expert Noti cation: The selected type of power supply is displayed in the top bar of the screen: - rechargeable type of power supply (accumulator) is selected, the charging is possible (the plug lights green);...
- Page 18 Anti-spy bug detector BugHunter Professional BH-03 Expert 2.3.2.5 Vibration level adjustment: this setting turns vibroindication on/o and de nes the level of vibration intensity. - In the main menu (Pic. 7) select “VIBRATION” bar by pressing button or button and con rm your selection by pressing...
- Page 19 Anti-spy bug detector BugHunter Professional BH-03 Expert 2.3.3.2.6 Quick guide - Press and hold button for 2 seconds to call the help menu. Text information shown in the Picture 13 will be displayed on the screen; MAIN SCREEN HOLDING BUTTONS...
- Page 20 Anti-spy bug detector BugHunter Professional BH-03 Expert SWITCHING TO SECURITY MODE Pic. 14 Switching to the “security” mode noti cation Next you’ll see the animation displayed within the graphs drawing zone. After animation the screen will turn o . Pic. 15 Switching to “security” mode animation When the device is in the “security”...
- Page 21 Anti-spy bug detector BugHunter Professional BH-03 Expert While changing modes by pressing button, the noti cation (Pic. 17) will appear on the screen for 2 seconds. After it the device will go to the “search” mode. SWITCHING TO SEARCH MODE Pic.
- Page 22 Anti-spy bug detector BugHunter Professional BH-03 Expert Current level of radio signal strength is displayed in real time as a graph of peak values (item 1, blue color on the background) and average values (item 2, green color on the foreground).
- Page 23 Anti-spy bug detector BugHunter Professional BH-03 Expert BLUETOOTH (BLUETOOTH radio modules); WLAN (wireless network such as Wi-Fi, Zigbee, LoRA etc.); Noti cation: In case several di erent standard sources are operating simultaneously the identi cation can be di cult, because only one protocol can be displayed on the screen at the moment. It is recommended to turn o all known radio transmission sources while searching.
- Page 24 Anti-spy bug detector BugHunter Professional BH-03 Expert 2.3.3.2.4 Practical recommendations on using the “search” mode: - before starting the search, switch o all radio-emitting devices if possible (Wi-Fi, smartphones, tablets, computers and other household and o ce equipment). It simpli es the search by keeping the place clutter-free, and makes it possible to use higher sensitivity while searching;...
- Page 25 Anti-spy bug detector BugHunter Professional BH-03 Expert - if the signal is periodic, the device will display its frequency in MHz; - if there is a strong enough and permanent signal level all over the room, it can mean that there is an powerful external source of radio transmission (cell phone tower, strong Wi-Fi access points).
- Page 26 Anti-spy bug detector BugHunter Professional BH-03 Expert In this case decrease the sensitivity by pressing button to the level on which the blue graph of peak values doesn’t “go into overdrive”. You may also fold down the antenna completely or partially. Continue your search considering the peak values graph;...
-
Page 27: Maintenance
Anti-spy bug detector BugHunter Professional BH-03 Expert 3. Maintenance 3.1 Keep the product clean. Periodically remove the dust by dry and clean cloth. 3.2 Keep the product from strokes and mechanical damage. 3.3 Recharge accumulators timely. The power level is indicated by the lling level and the color of battery sign located in the top bar of the screen. -
Page 28: Troubleshooting
Anti-spy bug detector BugHunter Professional BH-03 Expert 4. Troubleshooting Typical problems and remedies are speci ed in Table 3. Table 3 Cause Remedy Failure Batteries are fully Replace galvanic batteries or discharged recharge the accumulators The device is turned on, but there is no... -
Page 29: Acceptance Certi Cate
Anti-spy bug detector BugHunter Professional BH-03 Expert 6. Acceptance certi cate Anti-spy bug detector BugHunter Professional BH-03 Expert ‚ 4224-002-64062607-2011 Serial number _______________ Date of manufacture _______________ It is manufactured and accepted according to the valid technological documents and considered exploitable. -
Page 30: Certi Cation Details
Anti-spy bug detector BugHunter Professional BH-03 Expert 8. Certi cation details 8.1 The product meets the requirements of the Technical regulations of the Customs Union TR 020/2011 "Electromagnetic compatibility of technical means". Declaration of conformance TC RU D-RU. I49.B.08343. Validity period is 20.04.2021 inclusively. -
Page 31: Warranty Card
Anti-spy bug detector BugHunter Professional BH-03 Expert Warranty card Product name: BugHunter Professional BH-03 Expert Manufacturing number: Manufacture date: QC stamp: Sale date: Vendor’s stamp and signature The customer does not have any claims on quality of the product and the contents of delivery.
