Additel ADT209 User Manual

Loop calibrator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

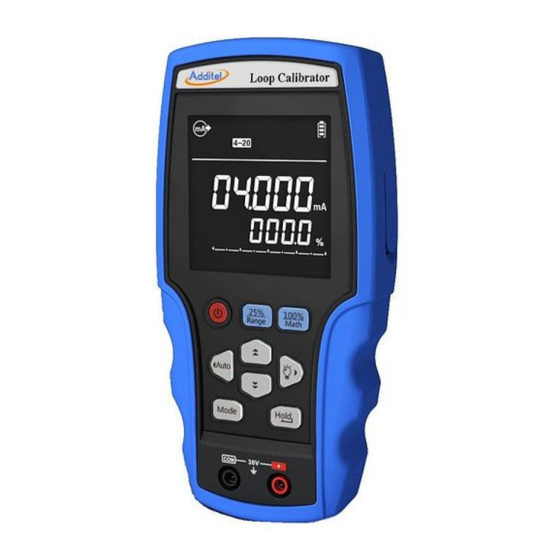

ADT209/210 Loop Calibrator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADT209 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Additel ADT209

Summary of Contents for Additel ADT209

  • Page 1 ADT209/210 Loop Calibrator...
  • Page 3 ADT209/210 Loop Calibrator User Manual (Version number: 1609V02) Additel Corporation.
  • Page 4 This manual is applicable to the ADT209/210 loop calibrator designed and produced by the Additel Corporation. This manual is written in English. If there are any discrepancy in the content of different language versions, the English version shall prevail. This manual subject to change...

  • Page 5: Table Of Contents

    CONTENTS 1. Warning Notice …………………………………………………………………………………………………………… 2. Product Description ……………………………………………………………………………………………………… 3. Basic Structure …………………………………………………………………………………………………………… 4. Keypad function …………………………………………………………………………………………………………… 5. Display ……………………………………………………………………………………………………………………… 6. Boot display ……………………………………………………………………………………………………………… 7. Main Function Operation ………………………………………………………………………………………………… ……………………………………………………………………………………………… 7.1 Measurement/Output Switch ………………………………………………………………………………………… 7.2 Backlight Brightness Adjustment ……………………………………………………………………………………………………………… 7.3 Keypad Lock ……………………………………………………………………………………………………...
  • Page 6 ……………………………………………………………………………………………… 8.2.1 Enter/Return To Menu ………………………………………………………………………………………………… 8.2.2 Switch Menu Items …………………………………………………………………………………… 8.2.3 Modify Setting Menu Parameter …………………………………………………………………………………………………………… 8.2.3 Data Entry …………………………………………………………………………………………………… 8.3 Auto Shutdown Setting …………………………………………………………………………………… 8.4 Automatic Shutdown Backlight Setting ………………………………………………………………………………… 8.5 Measurement Filter Parameter Setting …………………………………………………………………………………… 8.6 Automatic Ramp/Step Output Setting ……………………………………………………………………………………………………...
  • Page 7 9.1.1 DC Voltage Measurement …………………………………………………………………………………………………… 9.1.2 DC mA Measurement/Loop Transmitter Current Measurement …………………………………………………………… 9.1.3 Source/sink DC Current Output ……………………………………………………………………………………………… 9.1.4 Mechanical/live Switch Measurement ……………………………………………………………………………………… 9.2 General Specifications ……………………………………………………………………………………………………………… 10. Replace The Battery …………………………………………………………………………………………………… 11. Manufacturer Information ……………………………………………………………………………………………...

  • Page 8: Warning Notice

    Before removing the battery door, remove all test leads from the calibrator. 2. Product Description ADT209/210 is a multi-function, durable, hand-held loop calibrator. This calibrator offers six primary functions: current output, analog transmitter output, voltage measurement, switch measurement, transmitter loop measurement, and current measurement.

  • Page 9: Basic Structure

    210 Loop Calibrator Display Protective Adapter case jack Keypads 100% Range Math Nameplate ADT210 Loop Calibrator Auto Powered by 9V Alkaline battery or specified adapter. Measuring Hold Mode jack Additel Corporation USA Additel Corporation USA www additel com www additel com...

  • Page 10: Keypad Function

    4. Keypad function Short press -> 25% step measure/output measure/output Long press -> on/off Long press -> Switch range interface interface menu setting menu setting Short press -> Cancel/ interface interface Return to previous menu Short press -> Move left Short press ->...

  • Page 11: Display

    5. Display mA output Simulate transmitter Loop transmitter Voltage Switch output measurement mA measurement measurement measurement Range Battery indicator Keypad lock Engineering function Automatic ramp Filter icon Automatic step Calibration Main display standard Sub display Engineering unit Function indication Progress bar Menu Software/hardware Auto light...

  • Page 12: Boot Display

    6. Boot display Software version Full Screen /hardware version Voltage Measurement...

  • Page 13: Main Function Operation

    7. Main Function Operation 7.1 Measurement/Output Switch ADT209 and ADT210 provide the following functions: ◆ Voltage Measurement ◆ Switch measure ◆ Current output ◆ Simulate transmitter output ◆ Current measurement ◆ Loop transmitter current measurement In the measurement/output interface, you can press to switch through above functions.
  • Page 14 210 Loop Calibrator MEASURE V 100% Range Math Press Mode Auto to display Hold Mode The maximum voltage of 30V DC Fig 7.1 Voltage Measurement...

  • Page 15: Current Output/Simulate Transmitter Output

    7.5 Current Output/Simulate Transmitter Output In current output mode （ As Fig 7.2 ） the calibrator supplies DC current with loop power.In simulate transmitter mode （ As Fig 7.3 ）, the calibrator simulates a two-wire transmitter that has external power supply. Simulate transmitter 210 Loop Calibrator 210 Loop Calibrator...

  • Page 16: Range Switching

    7.5.1 Range Switching In the current output/simulate transmitter output interface, you can press and hold key to switch the current Range range. Current output/simulate transmitter output has 3 ranges: ◆ 4 ~ 20mA (0% ~ 100%) [default] ◆ 0 ~ 20mA (0% ~ 100%) ◆...

  • Page 17: Automatic Ramp/Step Output

    7.5.4 Automatic Ramp/Step Output In the current output/simulate transmitter output function, Auto you can press and hold key to select auto ramp/automatic 210 Loop Calibrator Loop transmitter 100% step output. Press andhold key to switch output function. current measurement Math 100% Long press key to switch range and press...

  • Page 18: Function Selection

    measurement/loop transmitter mA measurement has three ranges: 4 ~ 20mA (0% ~ 100%) [default] ◆ ◆ 0 ~ 20mA (0% ~ 100%) ◆ 0 ~ 24mA (0% ~ 100%) 7.6.2 Function Selection 100% In the current measuring/loop transmitter mA measurement interface, long press key to switch the Math...

  • Page 19: Menu Operation

    8. Menu Operation 8.1 Menu Structure 1 Calibration Calibration Automatic . 2 Restore factory settings Automatic shutdown shutdown settings See 8.10 Calibration time(min) No automatic shutdown 1 Battery voltage detection . 2 Board voltage detection Automatic shutdown Backlight shutdown backlight settings .

  • Page 20: Menu Operation

    8.2 Menu Operation 8. 2.1 Enter/Return to menu In the measurement/output display interface, long press key to enter the settings menu. Mode In any menu button, you can press key to return to the previous short menu until you exit. 8.2.2 Switch Menu Items In the menu interface, you can press Auto...

  • Page 21: Measurement Filter Parameter Setting

    backlight shutdown t time, 1/5/10 minutes are optional, or ON (the backlight is always on). 8.5 Measurement Filter Parameter Setting In the filter adjustment menu if the measurement is voltage, current or loop transmitter current, the filter coefficients will be displayed directly. If there are other items, you can press Mode key to switch between measurement items.

  • Page 22: Clear Menu Setting

    press key to cancel the entry. 8.7 Clear Menu Setting In the clear setting menu ,In the voltage measurement clear or current measurement clear Hold menu, you can press key to preform clear operation, the cleared measurement value will be observed in the main display interface.

  • Page 23: Self-Test Item Description

    8.9.3 Self-test Item Description Range Test Item Interface Schematic Notes a If the power is supplied only by the battery, the displayed voltage will be the battery voltage Supply voltage detection Supply voltage: 6V ~ 10V b If you insert the power adapter, the displayed voltage will be the adapter voltage a.3.3V Voltage: 3.2V ~ 3.4V...
  • Page 24 Current Output/Current If the range is exceeded 19.9mA~20.1 mA Measurement Self test -20mA calibration is required. The main display area Switch measurement self- displays OPEN test - OPEN The main display area Switch measurement displays CLOSE self-test - CLOSE LCD Detection All pixels will illuminate...

  • Page 25: Calibration

    8.10 Calibration We recommend your calibration standards to be at least four times more accurate than the ADT210. 8.10.1 Calibration Condition Note: Ensure the following critera are meet during the calibration: ◆ Ambient temperature ℃± ℃; relative humidity 45%-75% ; atmospheric pressure 86kPa-106kPa ◆...

  • Page 26: Restore Factory Calibration Data

    Temperature coefficient: -10°C~10°C and 30°C~50°C: ±0.005%FS/°C 9.1.1 DC Voltage Measurement ◆ Range:0~30V ◆ Resolution:1mV ◆ Input impedance:1MΩ ： ： ◆ Accuracy:ADT209 ±(0. 03%RD + 2mV) ADT210 ±(0.01%RD + 2mV) 9.1.2 DC mA Measurement /Loop Transmitter Current Measurement Range:0~24mA ◆ ◆ Resolution: 1μA...

  • Page 27: Source/Sink Dc Current Output

    ： ： ◆ Accuracy: ADT209 ±(0. 03%RD + 2μA) ADT210 ± (0.01%RD + 2μA) ◆ Loop transmitter current measurement: maximum load 700Ω 9.1.3 Source/Sink DC Current Output ◆ Range: 0~24mA ◆ Resolution:1μA ： ： ◆ Accuracy: ADT209 ±(0. 03%RD + 2μA) ADT210 ±(0.01%RD+2μA)
  • Page 28 ◆ Relative Humidity: 95%/30℃ 75%/40 ℃ 45%/50 ℃ ◆ Operating altitude: Maximum 3000m ◆ Vibration Shock: Random 2g, 5 to 500Hz 1m drop ◆ Power Requirements: A 9V alkaline battery (ANSI/NEDA 1604A or IEC6LR61) or standard DC9V adapter ◆ Battery Life: Output mode:18 hours(12mA /500Ω) Measurement mode:50 hours ◆...

  • Page 29: Replace The Battery

    10. Replace the battery Warming: ◆ To avoid false readings, the battery should be replaced immediately when the display indicates that the battery is low or does not start properly ◆ Use a 9V alkaline battery (ANSI/NEDA 1604A or IEC6LR61) Battery replacement: 1) Disconnect test lead from the input signal;...

  • Page 30: Manufacturer Information

    11. Manufacturer Information Additel Corporation 2900 Saturn St #B Brea, CA 92821, USA Phone: 714-998-6899 Email: service@additel.com Website: www.additel.com...
  • Page 32 Additel Corporation 2900 Saturn St #B Brea, CA 92821, USA Phone: 714-998-6899 Email: service @additel.com website: www.additel.com...

This manual is also suitable for:

Adt210Adt210is
