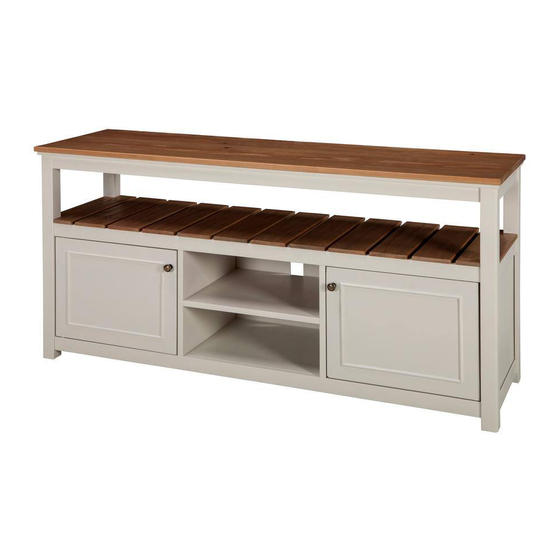

Thank you for purchasing the Savannah TV Stand from ALATERRE FURNITURE. We have found it

helpful to have a second person present during the assembly process.

NO.

DRAWING

DESCRIPTION

TOP

7/10/17

Alaterre Furniture

Ssvannah TV Stand

Accent Table Assembly Instructions

QTY.

SHELF

SUPPORT

Parts

1 of 5

TV Stand

Table of Contents

Do you have a question about the Ssvannah TV Stand and is the answer not in the manual?

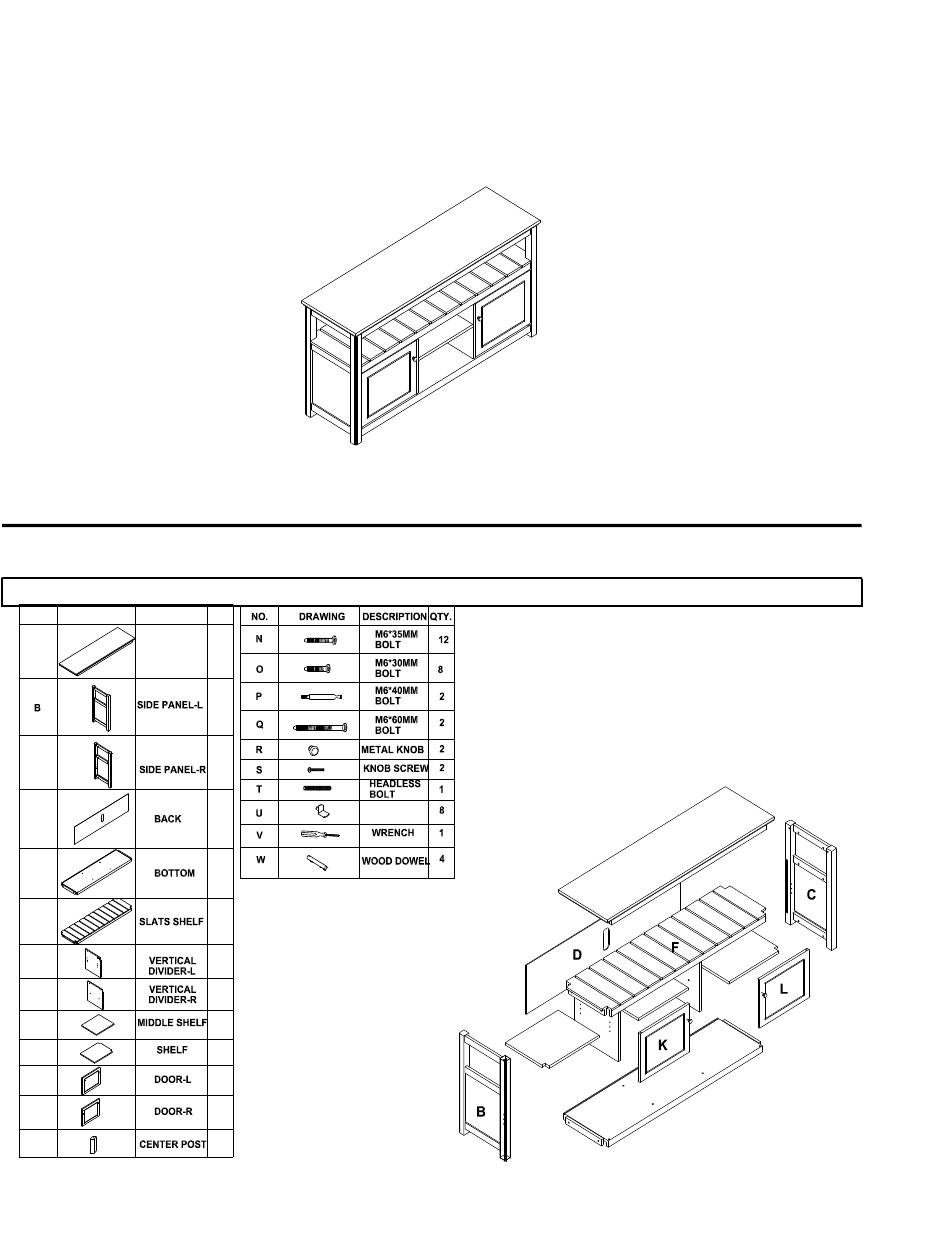

Page 1 Alaterre Furniture Ssvannah TV Stand Thank you for purchasing the Savannah TV Stand from ALATERRE FURNITURE. We have found it helpful to have a second person present during the assembly process. Accent Table Assembly Instructions Parts DRAWING DESCRIPTION QTY. SHELF...
Page 2 Step 1 Read through these instructions thoroughly before beginning assembly. We have found this to be of great value when assembling this product. Step 2 Remove all parts and hardware from packing material. Wooden pieces should be placed on a non abrasive surface to prevent damage to the finish.
Page 3 Step 5 Attach Side Assembly (C) to Top Assembly and Slat Shelft (A & F) using 4-35MM Hex Bolts (N). NOTE: DO NOT TIGHEN FIRMLY AT THIS TIME. Step 6 Align thru holes in Vertical Dividers (G & H) with inserts in underside of Slat Shelf. Insert 4 Dowel Pens (W) into holes in edge of Middle Shelf (F).
Page 4 Step 7 Attach Bottom (E) to Side Assemblies using 4-35MM Hex Bolts. Attach Bottom (E) to Vertical Dividers using 4 - 30MM Hex Bolts (O). Attached Center Post (M) by threading it in to insert on undside of Botom Panel (E). NOTE: AT THIS TIME TIGHEN ALL HEX BOLTS.
Page 5 Step 9 Attach Left & Right Doors (K & L) by aligning the Hole in top edge of door with the Pivot Bolt on undeside of top rail. Secure the door in place by threading 1 M6 * 60MM bolt (Q) thru the threaded insert in the front bottom rail and in to the hole in the bottom edge of Doors (K &...
