ASSEMBLY INSTRUCTIONS

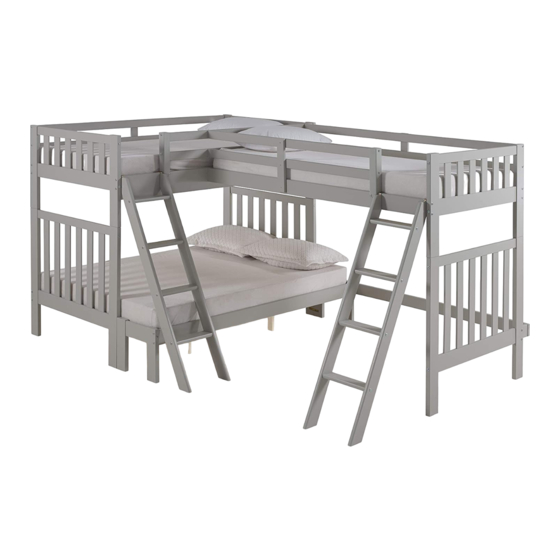

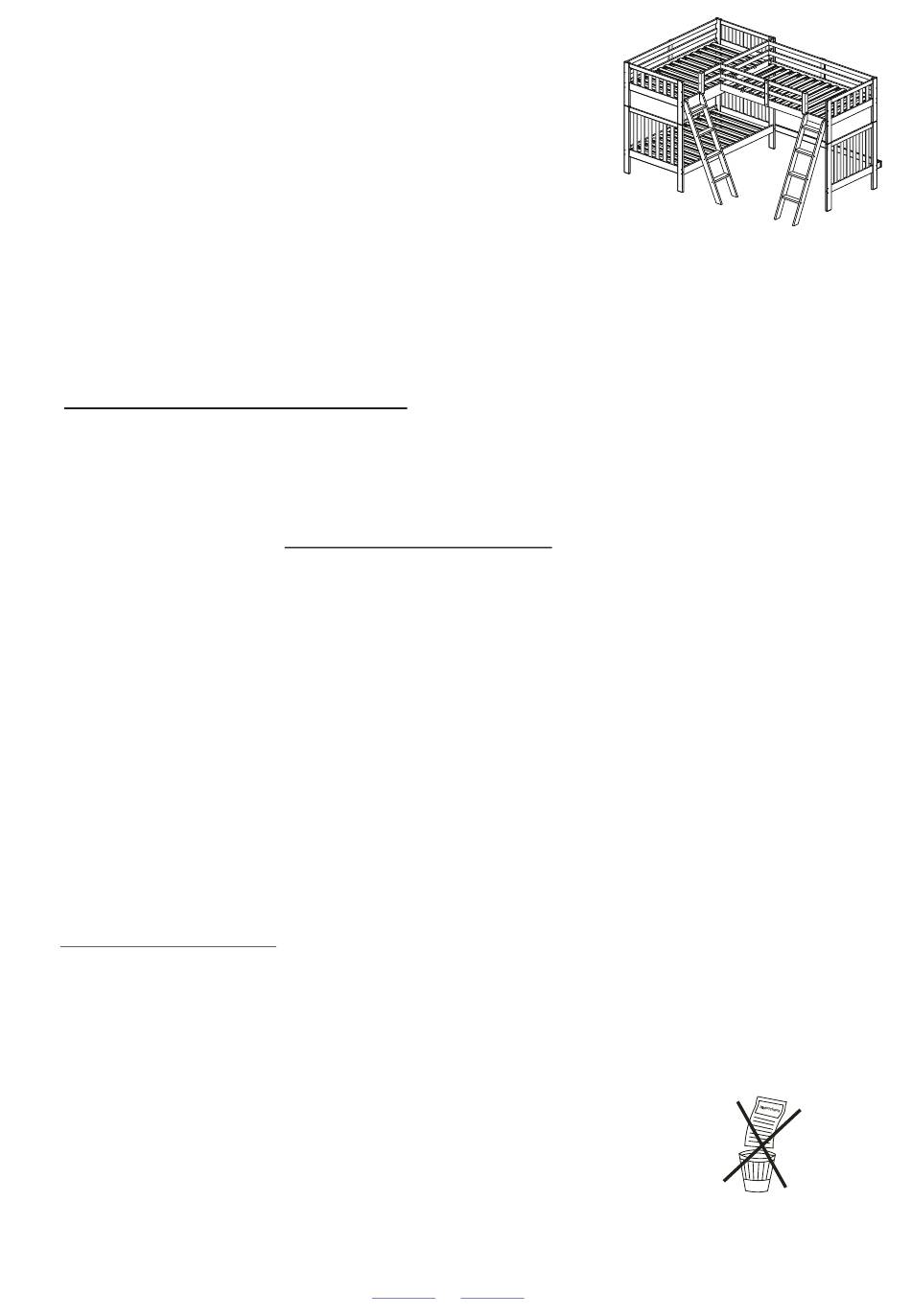

TRI-BUNK EXTENSION AURORA
Thank you for purchasing this quality product.
Be sure to check all packing materials carefully
for small parts which may have come loose in-
side the carton during shipment. Separate,
identify and count all parts and hardware.
Compare with the parts list to be sure all parts
are present.
"TO ALLOW FOR TOLERANCE DURNING ASSEMBLY,
DO NOT FIRMLY TIGHTEN BOLTS & SCREWS UNTIL COMPLETELY ASSEMBLED"
SIZE OF MATTRESS AND FOUNDATION
Use only Twin or Full Mattress with the following specifications on upper & lower bunks
Twin Mattress :37 1/2" - 3 1/ " Wide x 74"-75" long
The total thickness of Mattress and Foudation shoud not exceed 7" inches.
Do not use mattress without proper safe foundation.
1-Follow the information on the warning label appearing on the upper bunk end structure and on the carton. Do
not remove warning label from bed.
2-Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood
of entrapment or falls.
3-Surface of mattress must be at least 5 inches below the upper edge of guardrails.
4-Do not allow children under 6 years of age to use the upper bunk.
5-Prohibit more than one person on upper bunk.
6-Periodically check and ensure that the guardrail, ladder and other components are in their proper posi-
tion, free from damage, and that all connectors are tight.
7-Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8-Always use the ladder for entering and leaving the upper bunk.
9-Do not use substitute parts. Contact distributor or dealer for replacement parts.
10-Use of a night light may provide added safety precaution for a child using the upper bunk.
11-If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should
be placed against the wall to prevent entrapment between the bed and the wall.
12-Always use guardrails on both long sides of the upper bunk.
13-The use of water or sleep flotation mattresses is prohibited.
14-Keep these instructions for future reference.
STRANGULATION HAZARD
Never attach or hang items to any part of the bunk bed that are not designed for use with
the bed. For example, but not limited to hooks, belts or jump ropes.
..Warning - On Beds with finials that can be configured as Bunk beds!
Effective on Bunk Beds manufactured on or after March 10th, 2008, finials cannot be used.
The finials provided with certain beds, which are part of the design of the bed, are to be
used only in one of the lower configuration - that is as a Twin, Full, Queen or King
configuration.
These finials are never to be used in the upper structure in a Bunk Bed configuration.
Using the finials in the upper structure of a Bunk Bed will create a strangulation hazard.
Never use finials in the upper structure of a Bunk Bed.
A flat Mushrrom Cap made to conform to the requirement is provided to take place of
finials in the upper structure in Bunk bed configurations.
IMPORTANT: PLEASE READ INSTRUCTIONS BEFORE STARTING THE ASSEMBLY
All manuals and user guides at all-guides.com
9 8
SAFETY WARNINGS!
www.alaterrefurniture.com
133 Gallery Lane, Morrisville, VT
Ph:
802-888-7979
Fax:
802-888-3668
1 Of 25
