IBD181
EXAR XR21V1410
Serial Port Mini PCI-E Card(For RS-232)
User Guide
Version: 1.0

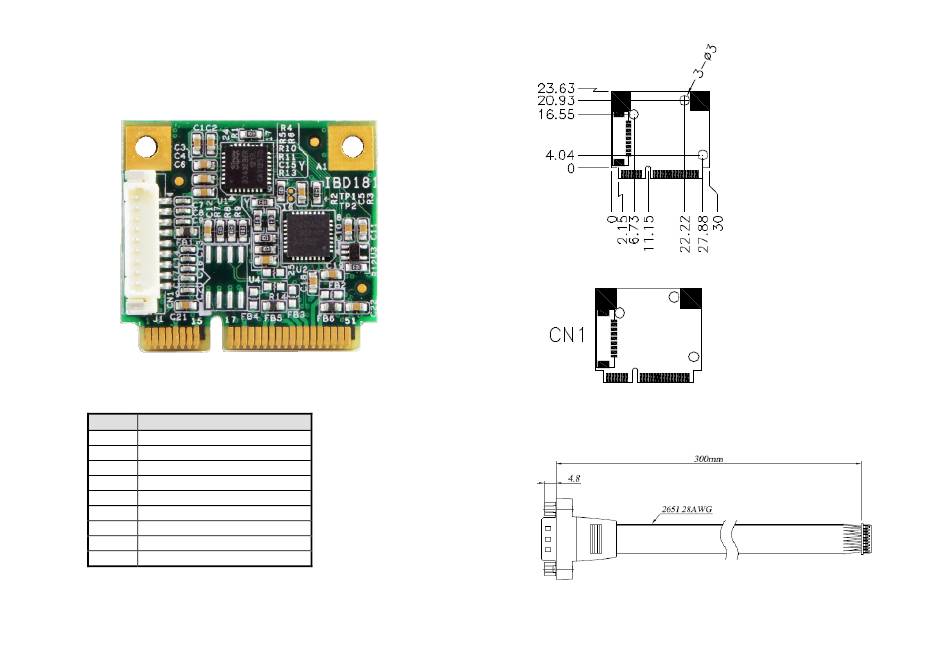

IBD181 Mini PCI-E Serial Port Card
CN1: COM1 Serial Ports
Matching connector: Molex P/N 51021-0900
Pin #
Signal Name
1
DCD, Data carrier detect
2
RXD, Receive data
3
CTS, Clear to send
4
GND, ground
5
TXD, Transmit data
6
RTS, Request to send
7
DSR, Data set ready
8
DTR, Data terminal ready
9
RI, Ring indicator
Page 1
IBD181 Mechanical Drawing
Cable Mechanical Drawing
Page 2
