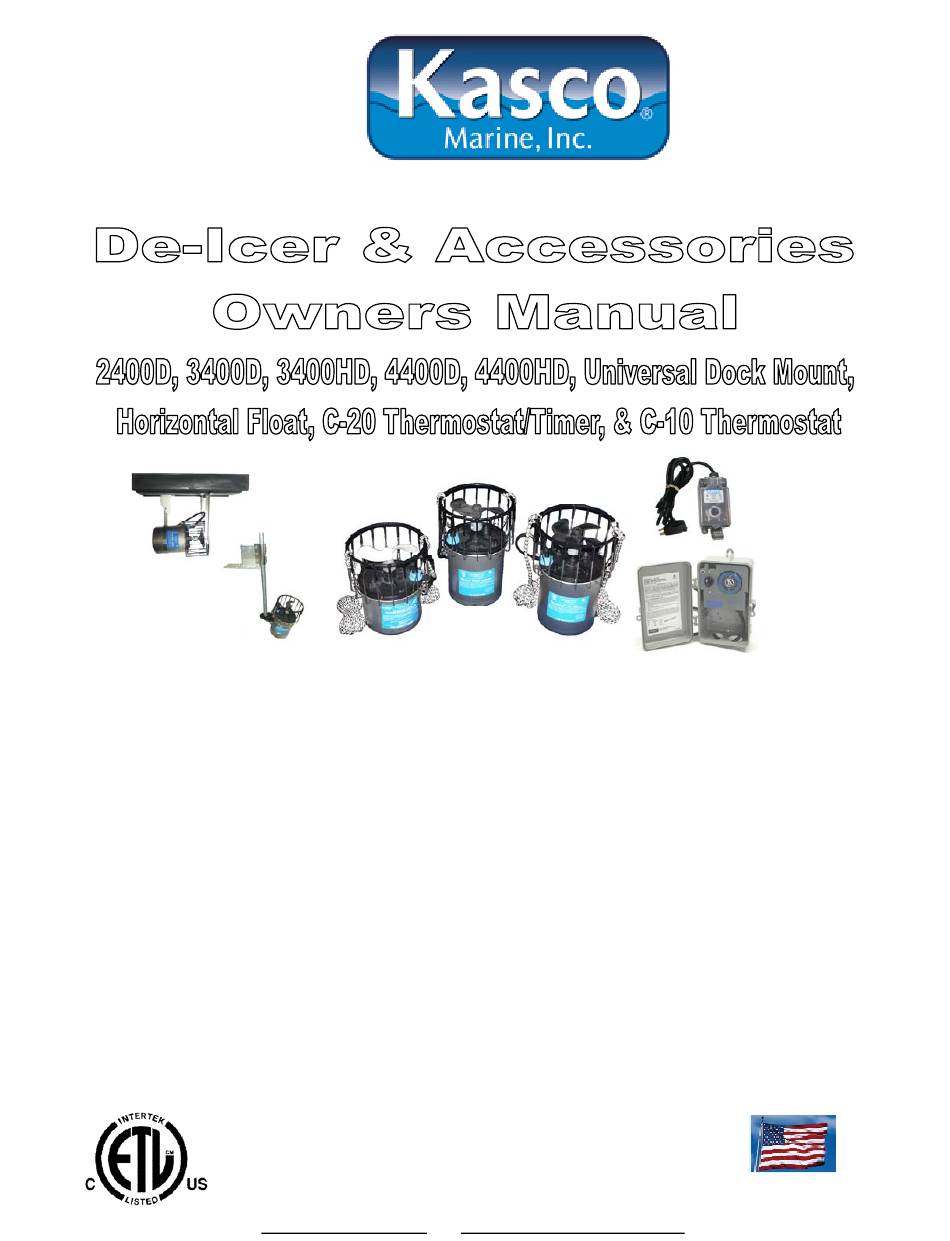

Kasco 2400D Owner's Manual

Universal dock mount, horizontal float, thermostat/timer, thermostat
Hide thumbs Also See for 2400D:

Advertisement

Quick Links

The Industry Leader in Ice Control Engineering
I.
Safety Instructions.............................................
II.
General Owner's Instructions................................
III.
IV.
Maintenance Recommendations.............................
V.
De-Icer Installation Instructions, Specs, & Sizing.........
VI.
VII.
C-10 Instructions...............................................
VIII.
C-20 Instructions...............................................
IX.
Universal Dock Mount Instructions.........................
X.
Horizontal Float Instructions.................................
XI.
Troubleshooting Tips..........................................
XII.
Customer Repair Form........................................
XIII.
Warranty Registration Information..........................
www.De-Icer.com * sales@kascomarine.com
CONTENTS
Kasco Marine, Inc.
800 Deere Rd.
Prescott, WI 54021
Phone (715) 262-4488 * Fax (715) 262-4487
2
3
4-5
6
7-9
10
11-12
13-14
15-16
17-19
20
21
22
Made in the USA
Rev. 8/2/07

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2400D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kasco 2400D

Summary of Contents for Kasco 2400D

  • Page 1: Table Of Contents

    15-16 Horizontal Float Instructions…………………………… 17-19 Troubleshooting Tips…………………………………... XII. Customer Repair Form…………………………………. XIII. Warranty Registration Information…………………….. Kasco Marine, Inc. 800 Deere Rd. Prescott, WI 54021 Made in the USA Phone (715) 262-4488 * Fax (715) 262-4487 www.De-Icer.com * sales@kascomarine.com Rev. 8/2/07...
  • Page 2 We at Kasco Marine, Inc. would like to both thank and congratulate you on your purchase of the De-Icer. We appreciate you choosing Kasco and for your purchase. Kasco is the industry leader of De-Icing equipment and technology. Your decision to purchase Kasco’s De-Icer will not disappoint you.

  • Page 3: General Owner's Instructions

    De-Icer and De-Icer accessory. WARRANTY Kasco De-Icers are the result of over 40 years of design and engineering. Kasco products are built to withstand the toughest conditions. Kasco Marine backs each De-Icer with a 2 Year Warranty. This warranty covers any and all manufacturers defects within 2 years from the date of purchase (See War- ranty, Warranty Claim, &...

  • Page 4: Warranty, Warranty Claim, & Return Policy

    The best method for establishing warranty period is registering your De-Icer online at the below address and/or the original receipt. If the customer has registered the De-Icer online at: www.de-icer.com/solutions_warranty_registration.htm , Kasco Marine will have a record of the purchase and will be able to determine whether or not the unit still car- ies warranty coverage.
  • Page 5 Any expedited shipping method for the return of the unit is at the customer’s expense. Kasco Marine will re- turn units repaired under warranty at our expense via ground freight within the continental United States.

  • Page 6: Maintenance Recommendations

    Even though Kasco De-Icers are the most clog-resistant on the market, it is impossible to protect against all items that can clog equipment and still maintain a flow of water.
  • Page 7 De-Icing is often referred to as more of an art form than an exact science because each situation is different and unique. Kasco offers three basic ways for De-Icer installation, Vertical or Rope Suspension, Universal Dock Mount Installation, or Angled or Horizontal Float Installation. Different De-Icing objectives may re- quire different mounting/installation options.
  • Page 8 When installing your Kasco De-Icer for suspended operation with the provided ropes, make sure the ropes or suspension lines are spread at least 8 to 10 feet apart. The high starting torque of your Kasco De-Icer may cause suspension lines that are too close together to twist up and possibly damage the electrical power cord.
  • Page 9 After installation and the unit is turned on, your Kasco De-Icer will swing up to an angle (the angle is dependent on how many cage wires you move the line) and the De-Icer will hold that angle during operation.

  • Page 10: Replacement Parts & Assembly Diagram

    REPLACEMENT PARTS & ASSEMBLY DIAGRAM...
  • Page 11 Thermostat dial on the C-10. It is recom- • Never lift your Kasco De-Icer or C-10 control by mended to set the temperature at 30 F (top black the power cable. This could damage the power numbers).
  • Page 12 Other lengths and gauges are available by special order. Specifications are subject to change without prior notice. All orders shipped via United Parcel Service. For Optional Kasco Parts or accessories, contact your lo- cal dealer or call Kasco Marine, Inc. at (715) 262-4488.
  • Page 13 (Please read completely before installing and operating your Kasco Equipment) CAUTION: PROGRAMMING: To ensure the safe operation and long life of your Kasco The advance design of Kasco’s C-20 gives you both time Equipment, always take the following precautions: and temperature control of your De-icer. The C-20 is wired •...
  • Page 14 Dockmaster’s daily inspection of the De- TWO YEAR LIMITED WARRANTY: Iced boats. Kasco Marine, Inc. warrants the C-20 to be free from defects B. A number of factors can increase freeze rates such as in material or workmanship under normal use and service.
  • Page 15 Position the band as secure the dock or piling base. Kasco urges that the close to the De-Icer cage as possible and tighten us- base be mounted as securely as possible.
  • Page 16 (If more than one set of holes align use the holes closest to the de-icer.) The Industry Leader in Ice Control Engineering. KASCO MARINE, INC. 800 Deere Road Prescott, WI 54021-1241 Phone (715) 262-4488 * Fax (715) 262-4487...
  • Page 17 If damages are found, immediately notify your secure the Adjustment Bracket to the Float using two carrier and your Kasco Marine, Inc. representative. 1/4” x 1/2” Stainless Steel Bolts and two Stainless Make sure you have all the parts needed. If any Steel Lock Washers.
  • Page 18 STEP SEVEN Insert the Spacer Bracket under the U-Bracket and inside the cage. Secure this assembly using one 1/4” x 1” Bolt and a 1/4” Lock Nut, and one 1/4” x 1-1/4” Bolt and a 1/4” Hex Nut. The longer bolt should be on the side of the U-Bracket that is closer to the cord clamp.
  • Page 19 Step Nine Horizontal Angled Up Angled Down STEP TWELVE Attach the Ropes to the front (on the cage) and back (around the Draw Band) of the motor. At this time, STEP TEN Attach the Angle Bracket on the motor to the Angle use the Nylon Tie provided to connect the power cord Bracket on the Float using two 1/4”...

  • Page 20: Troubleshooting Tips

    “My De-Icer turns itself off and back on without the thermostat and without tripping the GFI breaker.” Each Kasco De-Icer has a Thermal Overload built in that will turn the unit off when it overheats. Once the unit has cooled down, it will start back up. If you are noticing these symptoms, the unit should be unplugged immediately because the Thermal Overload will continue to turn on and off until burns out and damages the motor.
  • Page 21 3-5 years de- pending on use. • Address your Repair to Kasco Marine, Attn: Repairs (or to your Authorized Repair Center). • Shipping to Kasco or an Authorized Repair Center is paid for by the customer.
  • Page 22 De-Icer Warranty Information Please register your Kasco De-Icer online at www.de-icer.com/solutions_warranty_registration.htm Also, fill in the information below and keep for your records. Model # (Ex. 2400D)_______________________________ Serial # (Ex. 6001D21725)______________________________ Purchase Date:_____________________ Purchased From:___________________________________ Registration Date:___________________________ Kasco Marine, Inc. 800 Deere Rd.
