Installation Instructions for Equalise Backlit Mirror
Please read carefully before you start and retain for future reference
1x mirror
1x grommet
4x wall plugs 4x screws
Parts Included
PROCEDURE
The wall surface must be of suitable strength and construction. This mirror can be
mounted either portrait or landscape. The drain hole that is not in use i.e. whichever is not
at the bottom of the product should be sealed using the rubber grommet supplied.
Note: Wall plugs provided are suitable for Stone or Brick walls. For other wall types use
appropriate wall plugs. If in doubt consult an expert.
To ensure correct operation of the infrared sensor the mirror must be mounted so that
there is a minimum of 150mm clearance immediately adjacent to the sensor.
1) Carefully remove the mirror by removing the cover caps on the sides of the mirror and
loosening the securing screws through the holes (these should not be removed
completely), then separate from the main body. Place the mirror in a safe place for now.
The heated mirror pad should be disconnected by separating the plugs.
2) Mark the desired height of the mirror and draw a horizontal line on the wall (using a
spirit level) which corresponds with the height of the top holes in the back of the mirror
body. Holding the mirror body in place on the horizontal line, mark off all 4 holes in the
back of the mirror body. Also mark off where the electrical supply cable must be placed in
case this needs to be chased out locally for the installation. Place the mirror body to one
side and drill the holes as necessary for the wall plugs.
1
Insert the wall plugs and screw the mirror body in position having fed the power supply
cable through the rubber grommet in the mirror body. Make sure that all screws are
secure.
3) Ensure that the electrical supply is turned off at the mains. Remove the connection box
cover inside the mirror body and the cable clamp to allow the electrical connections to be
made as follows:
Colour Coding:
L - Live
N - Neutral = Blue
- Earth
Strip the mains PVC supply cable as necessary. Thread the power supply through the
rubber grommet on the switch box and make the necessary connections in accordance
with the current IEE Regulations. Firmly tighten all terminal connections. Make sure the
cable clamp is replaced and tightened and the connection box cover is replaced.
Tavistock Ltd, Brassmill Lane Trading Estate, Bath, BA1 3JF

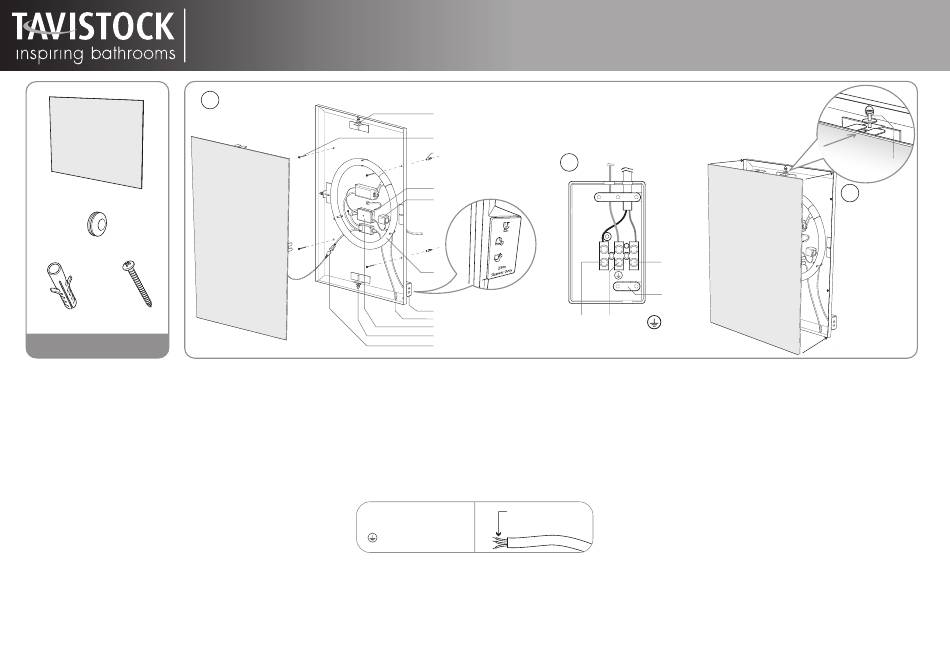

Mirror securing screw x 4
