Summary of Contents for midiplus O62

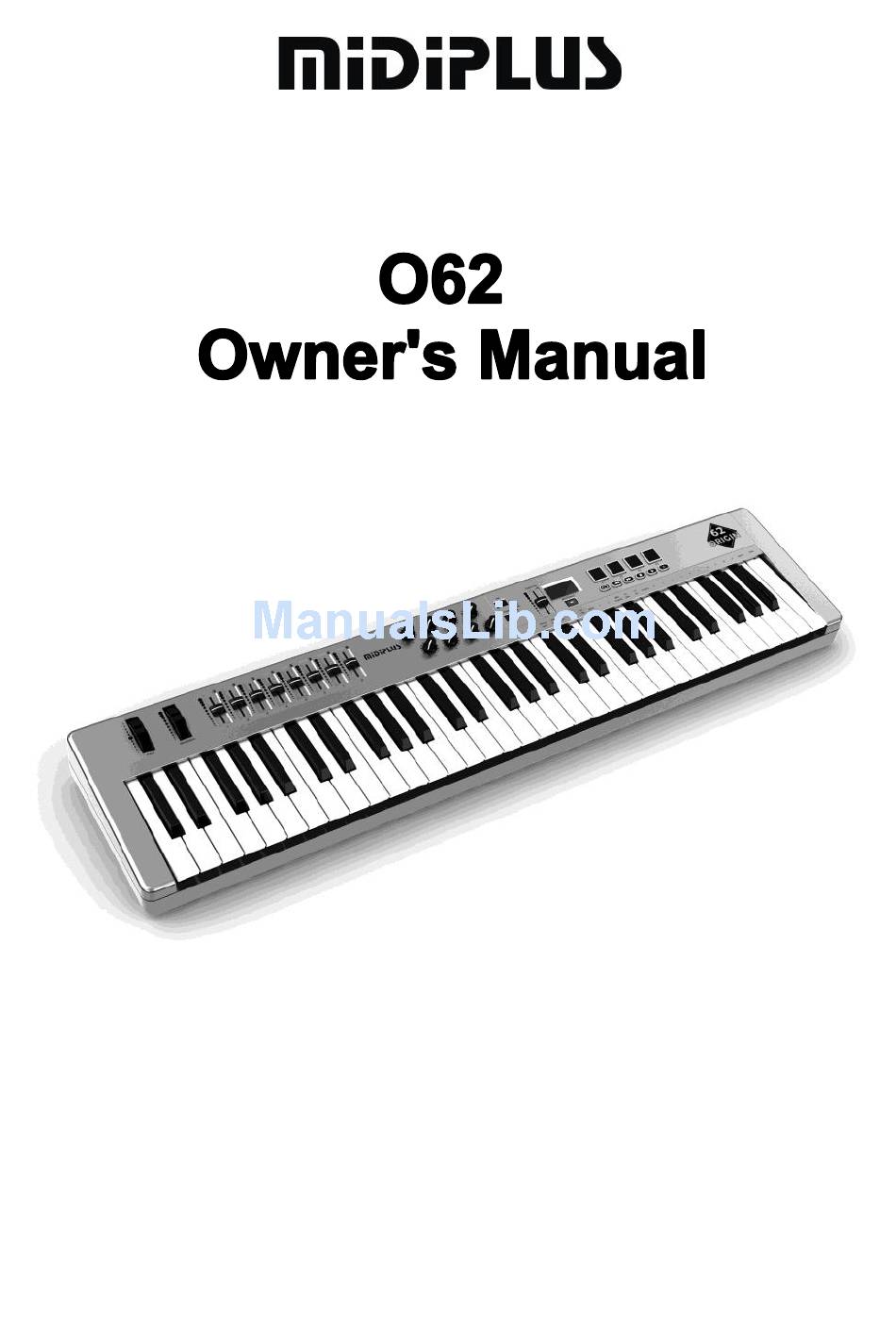

- Page 1 MIDIPLUS Co, Ltd.
-
Page 2: Table Of Contents
1.5 Power supply ................5 Chapter 2：The basic MIDI Controllers ..........5 2.1 O62 Function Buttons ..............6 2.1.1 O62 Function Buttons Screenshot ........6 2.1.2 Set Controller Buttons ............. 6 2.1.3 Set MIDI Button ............... 7 2.2 Setting ..................7 2.2.1 Velocity Curve .............. -
Page 3: Preface
O62 semi-weighted MIDI Controller. Owner’s Manual. One standard USB Cable. O62 Keyboard Overview Here are the features including in the O62 keyboard: 61 dynamic keys. Eight fully assignable 40mm sliders. Eight fully programmable knobs. -
Page 4: Chapter 1：Quick Start
MIDI device by oneself. Power Supply: USB power Chapter 1：Quick Start 1.1 O62 Overview 1.1.1 Front panel Overview 1.1.2 Rear panel overview http://www.midiplus.com.tw MIDIPLUS Co, Ltd. -
Page 5: Controllers Description
7. Data Entry 15. USB 1.1 Jack 8. Data display 16. USB Power Switch 1.2 Minimum System Requirement If you are using your O62 with a computer, the following minimum system requirements need: Windows Mac OS Pentium 3800 MHz or higher... -
Page 6: Installation
Mac) will be selected as the first midi input, while the MIDI Out port of O62 Out-1 (or Port 1) will be selected as the first midi output. If the MIDI software runs, and the MIDI-In and Out port in O62 are selected, the MIDI message will be received when playing the O62 keyboard. -
Page 7: Power Supply
MIDI instruments, please purchase a standard MIDI cable and use it to connect the Keyboard or USB MIDI OUT jack in O62 rear panel labeled "Keyboard "or "USB "to the MIDI IN jack of the other instrument. 1.5 Power supply Connect an USB cable from your computer to the O62. -
Page 8: O62 Function Buttons
2.1 O62 Function Buttons 2.1.1 O62 Function Buttons Screenshot 2.1.2 Set Controller Buttons There are knobs, sliders, trigger pads and transport which can be used to send any MIDI controller data on any MIDI channel. All the knobs and sliders can be stored into 16 different groups at any time. -
Page 9: Set Midi Button
Then you can use the Velocity Curve to change the responds to your key when pressed. Since MIDI supports 127 different velocity values (from 1 to 127), this function will allow you to choose the MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... -
Page 10: Initialization
Press the "MIDI" Button again (LED lights off) to save the edit. 2.2.2 Initialization The initialization will restore O62's factory settings, which will erase all the presets and the saved values. To do the Initialization, you need to do as follows: ... -
Page 11: Program & Bank
Buttons for setting MIDI parameter commands. The O62's global MIDI channel is assigned by the following steps: Press the "MIDI" Button and the LED under the button will light on. Press the "Channel" key. -
Page 12: Transpose
Use “DATA ENTRY” sliders or move “Octave UP & Down" Buttons to select a desired number. Press the "MIDI" Button again (LED lights off) to save the edit. 2.2.6 Controller Select The Control Select function (CTRL SEL) will allow you to begin. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw... - Page 13 Turn the “DATA ENTRY” sliders or Press the "Octave UP & Down" button to choose the channel. You can see the channel number on the LCD screen. Press the "MIDI" Button again (LED lights off) to save the edit. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
-
Page 14: Reset
Press the "MIDI" Button and the LED under the button will light on. Press a key on the Velocity key Left. The LCD screen will display the current Mackie state ("on" or "off"). Press the "MIDI" Button again (LED lights off) to save the edit. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
