Summary of Contents for midiplus 61U

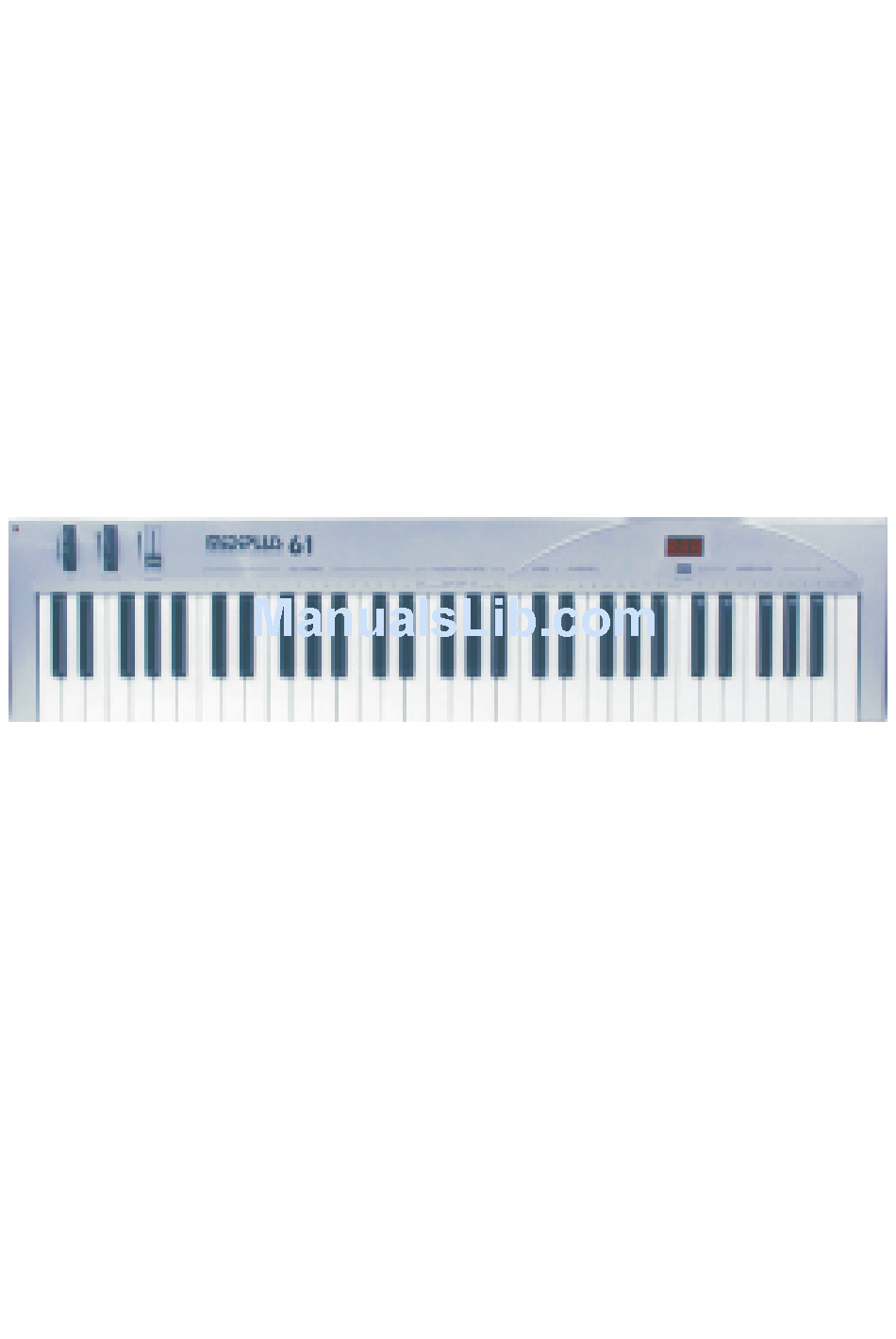

- Page 1 OWNER’S MANUAL MIDIPLUS www.midiplus.com.tw...
- Page 3 Contents Preface ........................1 Safety Information ....................2 Features ........................3 Operation .........................6 Rear Panel .......................12 Specifications ......................13 MIDI Implementation Chart ................14 Note Page .........................15...
-
Page 5: Preface
MIDIPLUS Please read the manual carefully to find out what you can do with your MIDIPLUS U. After reading this manual, you should have a clear understanding of how to transmit different MIDI messages to other instruments and equipments. -
Page 6: Safety Information
IMPORTANT SAFETY INFORMATION Please kindly note that it is very important to read the following safety instructions first. 1. Keyborad should be kept off water or wet environment nearby like bathroom or swimming pool. 2. Keyborad should be kept off heating elements nearby like a radiator or similar,also don`t put keyboard in the places with high tempearture or direct sunshine. -
Page 7: Features
Features - WHAT’S NEW - The MIDIPLUS 61U MIDI master controller keyboard is based on a powerful platform. It use an ARM7 chip to process the MIDI, bring you a nice feeling. USB 2.0 full-speed, powerful precessing capability, small latency time. - Page 8 To transmit MIDI data from your keyboard to other professional MIDI instruments, please purchase a MIDI cable and use it to connect the MIDI OUT jack of your MIDIPLUS 61U to the MIDI IN jack of the other instrument.Make sure that the MIDI “transmit” channel on your MIDIPLUS 61U matches the MIDI "receive"...
- Page 9 - Using the MIDI-Interface The MIDPLUS 61U Keyboard has a build-in midi-interface, which transfers the midi data from the keyboard to the computer, but also from the computer to the midi-out at the keyboard. The booth midi-outs are separate usable, to control a sound expander or maybe an effect device.
-
Page 10: Operation
Please kindly note that saving Preset Group and Velocity Curve setting have been MIDIPLUS 61U done via changing keyboard from Edit Mode to Normal Mode. provides several groups of MIDI commands and here will show you how to concretely use them :... - Page 11 For example, In normal mode,this slide controller is adjusting Volume and you want it to adjust Reverb. Here are operation steps: e and you want it to adjust Reverb. Here are operation steps: 1.Press MIDI / SELECT button to enter Edit Mode. 2.Press key Reverb Depth.
- Page 12 Octave Group The octave buttons transpose the keyboard up or down one octave.When the transpose buttons are pressed, the octave transpose amount appears in the numeric display,i.e -1. Transposer Group Press the MIDI/SELECT button and the TRANSPOSE Key you increase(#) or decrease(b) the notes by halftones.
- Page 13 Control Change data entry by Numeric keypad MIDIPLUS 61U allows you to use the numeric keys to specify your Control Change DATA parameter instead of data entry slide. These parameters are Set CTRL,Reset,transposer,MIDI Channel,CC No,Program.By pressing MIDI/SELECT button and CC data key and then the required number and finally the Enter key to finish.
- Page 14 Velocity Curve Selects one of eight Velocity Curves to customize the sensitive of the keyboard. When playing a velocity-sensitive sound (such as a piano), select a curve that provides the most natural response to your playing style. The selected Velocity Curve does not affect the outgoing MIDI velocity data; it affects the response of the internal synthesizer engine, both from the keyboard and from incoming MIDI data.
-
Page 16: Rear Panel
MIDI OUT Jacks This standard MIDI jack receives its source from the computer when software is set to MIDIPLUS 61U MIDI Out, and pass these MIDI messages to another MIDI instrument (works like MIDI through). -
Page 17: Specifications
75x23.7 x6.6 (cm) W eight P ower so urce D C 9V or P C US B P ort **If anything doesn't help, you can write an e-mail to our hotline mail to: help@ning-hui.com info@midiplus.com.tw and then we try to help you. -
Page 18: Midi Implementation Chart
MIDI Implementation Chart Function Transmitted Recognised Remarks Basic Channel Default Changed 1-16 Mode Default Mode 3 Messages Altered ************* Note Number 12-108 Octave Change True Voice ************* Velocity Note ON Note OFF AfterTouch Key’s Ch’s Pitch Bender Control Change Prog 1-128 Change :True＃... -
Page 19: Note
Note Page:... - Page 20 NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 21 MIDIPLUS www.midiplus.com.tw...
