Detecto 6570 Service Manual

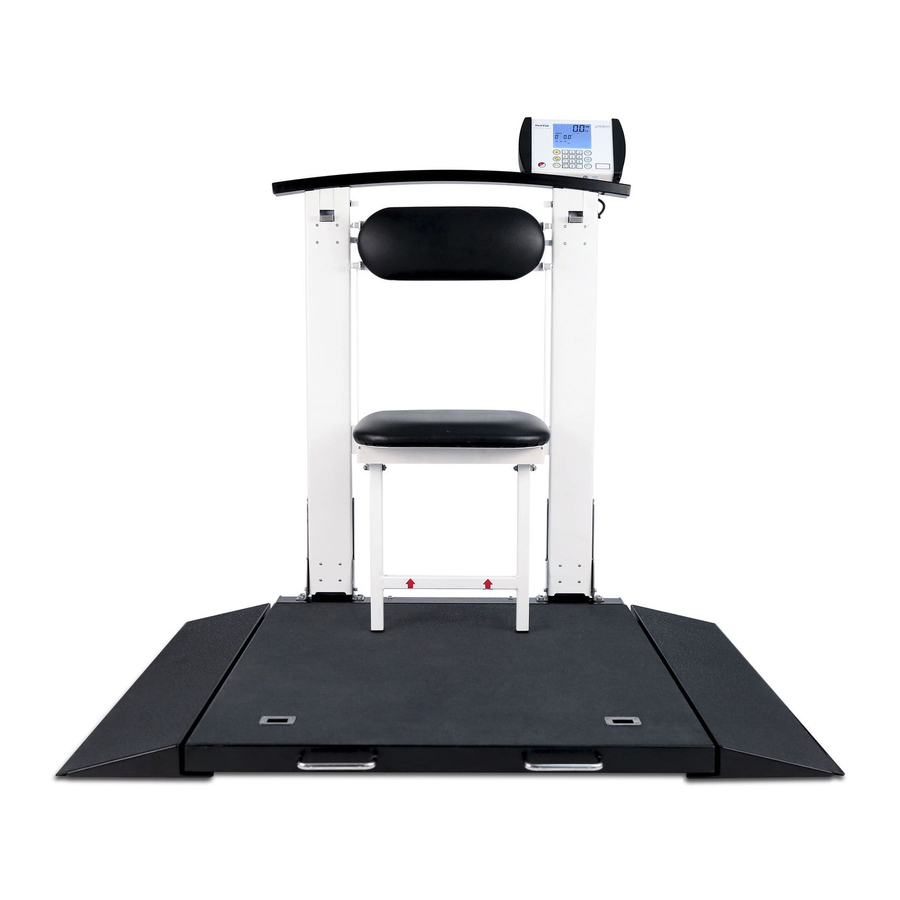

Portable wheelchair scale
Hide thumbs

Advertisement

Quick Links

Download this manual

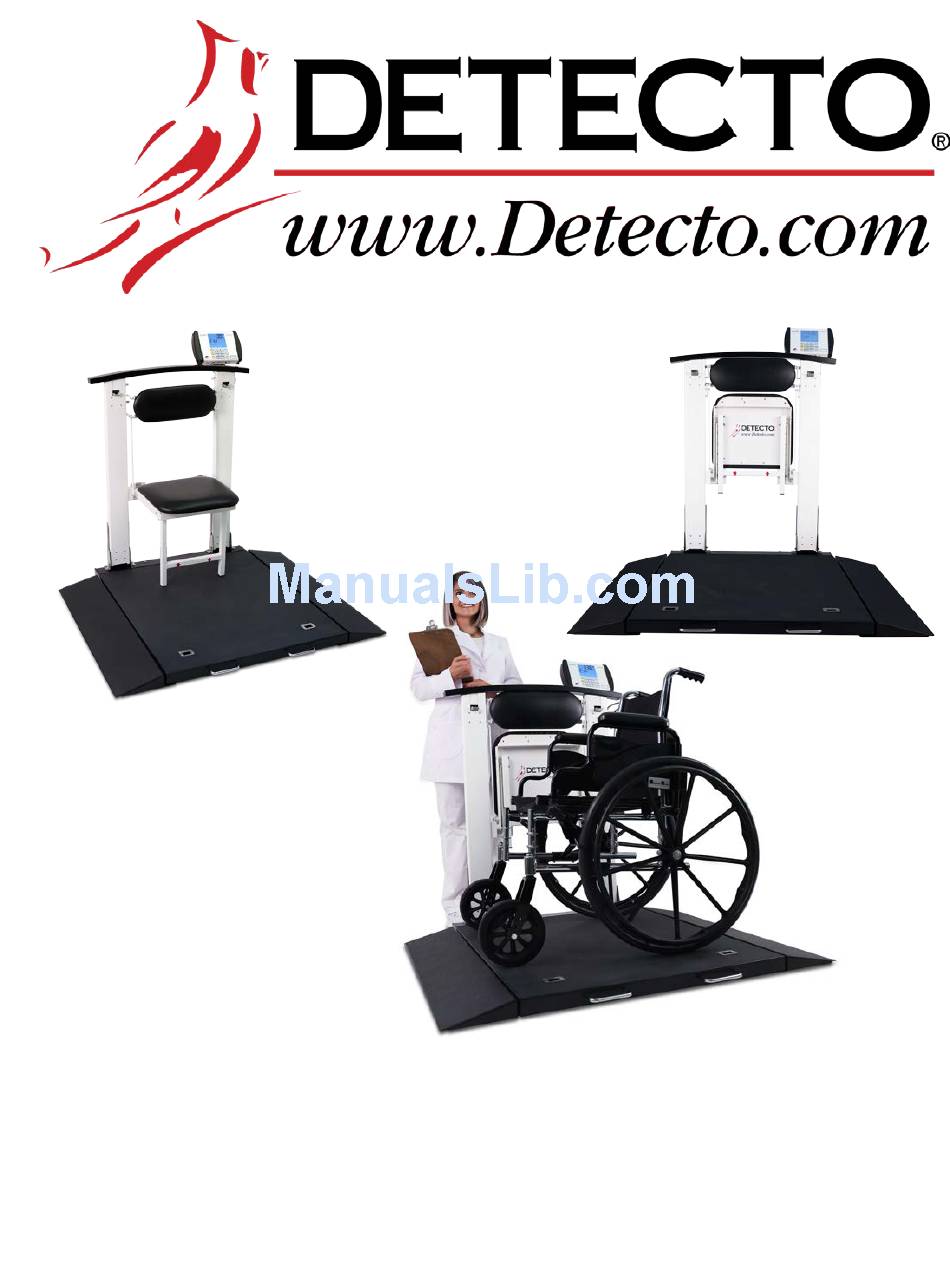

Model 6570
Portable Wheelchair Scale
Service Manual
0065-0725-0M – 6570 Service Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Detecto 6570

Summary of Contents for Detecto 6570

  • Page 1 Model 6570 Portable Wheelchair Scale Service Manual 0065-0725-0M – 6570 Service Manual...

  • Page 2: Fcc Compliance Statement

    Seller is not able to guarantee the result of any procedure contained herein. Nor can they assume responsibility for any damage to property or injury to persons occasioned from the procedures. Persons engaging the procedures do so entirely at their own risk. 0065-0725-0M – 6570 Service Manual...

  • Page 3: Care And Cleaning

    If required, a mild solvent such as mineral spirits can be used to remove oil, grease, tars, wax, and similar substances. Use a cloth dampened with mineral spirits and apply only to areas that are contaminated. Follow up the use of this mild solvent with detergent cleaning and rinsing. 0065-0725-0M – 6570 Service Manual...
  • Page 4 0065-0725-0M – 6570 Service Manual...
  • Page 5 MODEL 6570 PORTABLE WHEELCHAIR SCALE TEST PROCEDURE A. Equipment Required B. Scale Trim Adjustment C. Calibration D. Final Test 0065-0725-0M – 6570 Service Manual...
  • Page 6 Change the value by entering the new data using the numeric keypad, and then pressing the PRINT/ENTER key. 7. Follow the prompts listed in the MEDVUE SETUP TABLE. 0065-0725-0M – 6570 Service Manual...
  • Page 7 MONTH [1-12] = Enter current day of the month dAY [1-31] =. Enter current hour in 24-hour format HOUR [0-23] = Enter current minute MINUTE [0-59] = Enter current second SECONd [0-59] = 24 HOUR TIME = 0065-0725-0M – 6570 Service Manual...

  • Page 8: Final Test

    400 lb 399.8 lb To 400.2 lb 500 lb 499.8 lb- To 500.2 lb+ 5+2+3 900 lb 899.4 lb To 900.6 lb Then 5+1+4 Weight Positions Use these weights for Corner Test For Corner Test 0065-0725-0M – 6570 Service Manual...
  • Page 9 5-10 seconds. NOTE: Most adhesive backed items will not attain full strength until after 24 hours. It is critical that the above procedure be followed to obtain the maximum bonding strength of any adhesive. 0065-0725-0M – 6570 Service Manual...

  • Page 10: Parts Identification

    0065-0689-0A 6570 HANDRAIL WELDMENT 0065-0691-0A LEGS/CROSSBRACE WELDMENT 0065-0692-08 BACKREST PIN, SS RD 1/4 X 12 FT 0065-0698-0A 6570 COL. AND LATCH ASSY LH 0065-0699-0A 6570 COL. AND LATCH ASSY RH 0065-0703-0A UNIV. BASE ASSY 6560/6570 0065-0737-0A 6570 SEAT ASSY. 0065-0771-0A...
  • Page 11 Keep folding chair looseness to a minimum, while ensuring easy movement of linkages. 8. Torque bolts to between 20 to 25 ft-lbs. Chair should not be difficult to fold up, or so loose that it falls down during handrail fold-in. 0065-0725-0M – 6570 Service Manual...
  • Page 12 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Front View 0065-0725-0M – 6570 Service Manual...
  • Page 13 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Side View 0065-0725-0M – 6570 Service Manual...
  • Page 14 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Sections A-A, B-B, and C-C 0065-0725-0M – 6570 Service Manual...
  • Page 15 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Detail D and E 0065-0725-0M – 6570 Service Manual...
  • Page 16 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Sections F-F, M-M, and K-K 0065-0725-0M – 6570 Service Manual...
  • Page 17 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Detail G and H 0065-0725-0M – 6570 Service Manual...
  • Page 18 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Detail J and Section I-I 0065-0725-0M – 6570 Service Manual...
  • Page 19 PARTS IDENTIFICATION, CONT. Final Assembly – 0065-0770-0A, Wiring Schematic 0065-0725-0M – 6570 Service Manual...
  • Page 20 PARTS IDENTIFICATION, CONT. 6560/6570 Universal Base Assembly – 0065-0703-0A ITEM PART NUMBER DESCRIPTION 0065-0702-0A 6560/6570 WB WELDMENT 0065-B539-08 LATCH COVER PLATE, 14 GA, SS 304 HR BTTM BASE/DUAL COLUMN, 0065-0678-08 3 X 1-1/2 X 3/16 WALL TUBING 0065-0716-08 LFB-250P 6540-1624...
  • Page 21 PARTS IDENTIFICATION, CONT. 6560/6570 Universal Base Assembly – 0065-0703-0A NOTES: 1. Center and apply deck mat (item 22) and ramp mat (item 23) on top of deck (item 1) and ramps (item 6) before assembly. 2. HR BTTM base/dual column (item 3) must be attached to deck (item 1) before installation of load cells (item 4).
  • Page 22 PARTS IDENTIFICATION, CONT. 6560/6570 Universal Base Assembly – 0065-0703-0A 0065-0725-0M – 6570 Service Manual...
  • Page 23 PARTS IDENTIFICATION, CONT. 6560/6570 Universal Base Assembly – 0065-0703-0A Section A-A, Detail B, and Section C-C 0065-0725-0M – 6570 Service Manual...
  • Page 24 6549DS COLUMN SWIVEL BASE 0065-0697-08 SS SHT 12 GA.X48X96 0065-0704-08 TRANSITION PLATE, HRPO SHT 12 GA. X 48 X 96 0065-0748-0A COLUMN WELDMENT LH - 6570 0065-0758-0A COL. FACE SPOT WELD ASSY 0065-0797-0A LH HINGE BLOCK BACK PLATE 0065-0798-0A LATCH WELDMENT 6570...
  • Page 25 1. Apply Loctite (6560-1126) to threads of bolt. 2. Apply Loctite (6560-1061) to threads of bolt. 3. Be careful not to shred outer insulation of wire while installing item 12. 4. Install item 31 with 2-part epoxy (6560-0135) or similar adhesive. 0065-0725-0M – 6570 Service Manual...
  • Page 26 PARTS IDENTIFICATION, CONT. LH Column and Latch Assembly – 0065-0698-0A 0065-0725-0M – 6570 Service Manual...
  • Page 27 PARTS IDENTIFICATION, CONT. LH Column and Latch Assembly – 0065-0698-0A Detail B, C, Sections E-E and F-F 0065-0725-0M – 6570 Service Manual...
  • Page 28 SPACER, BRS TBG 1/4 OD X .025 WALL X 14 FT 6549DS COLUMN SWIVEL BASE, 0065-0697-08 SS SHT 12 GA.X 48 X 96 0065-0740-0A COLUMN WELDMENT RH - 6570 0065-0758-0A COL. FACE SPOT WELD ASSY 0065-0796-0A RH HINGE BLOCK BACK PLATE...
  • Page 29 PARTS IDENTIFICATION, CONT. RH Column and Latch Assembly – 0065-0699-0A 0065-0725-0M – 6570 Service Manual...
  • Page 30 PARTS IDENTIFICATION, CONT. RH Column and Latch Assembly – 0065-0699-0A Detail B, C, D, and Section E-E 0065-0725-0M – 6570 Service Manual...

  • Page 31: Statement Of Limited Warranty

    (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect. During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • Page 32 Cardinal Scale Manufacturing Co. 203 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 0065-0725-0M Rev A 09/18 0065-0725-0M – 6570 Service Manual...
