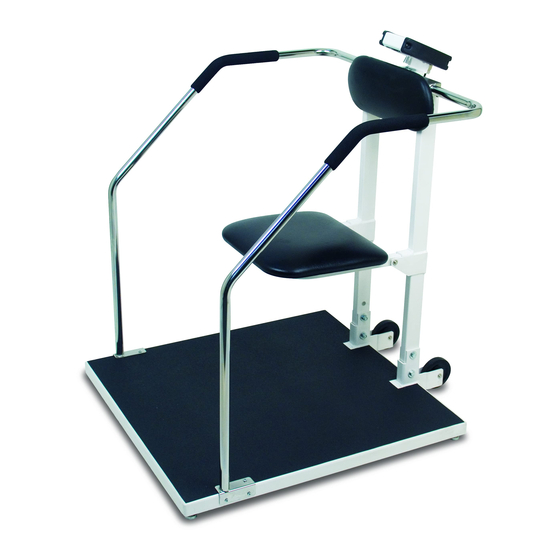

Digital Stand-On
Sit-Down Scale
Models 6868 & 6868KGEU
Operating Instructions
Technical Support: Ph: 866-254-8261  techsupport@cardet.com
0065-M502-O1 Rev C  6868 & 6868KGEU
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6868 and is the answer not in the manual?

Questions and answers

Related Manuals for Detecto 6868

Summary of Contents for Detecto 6868

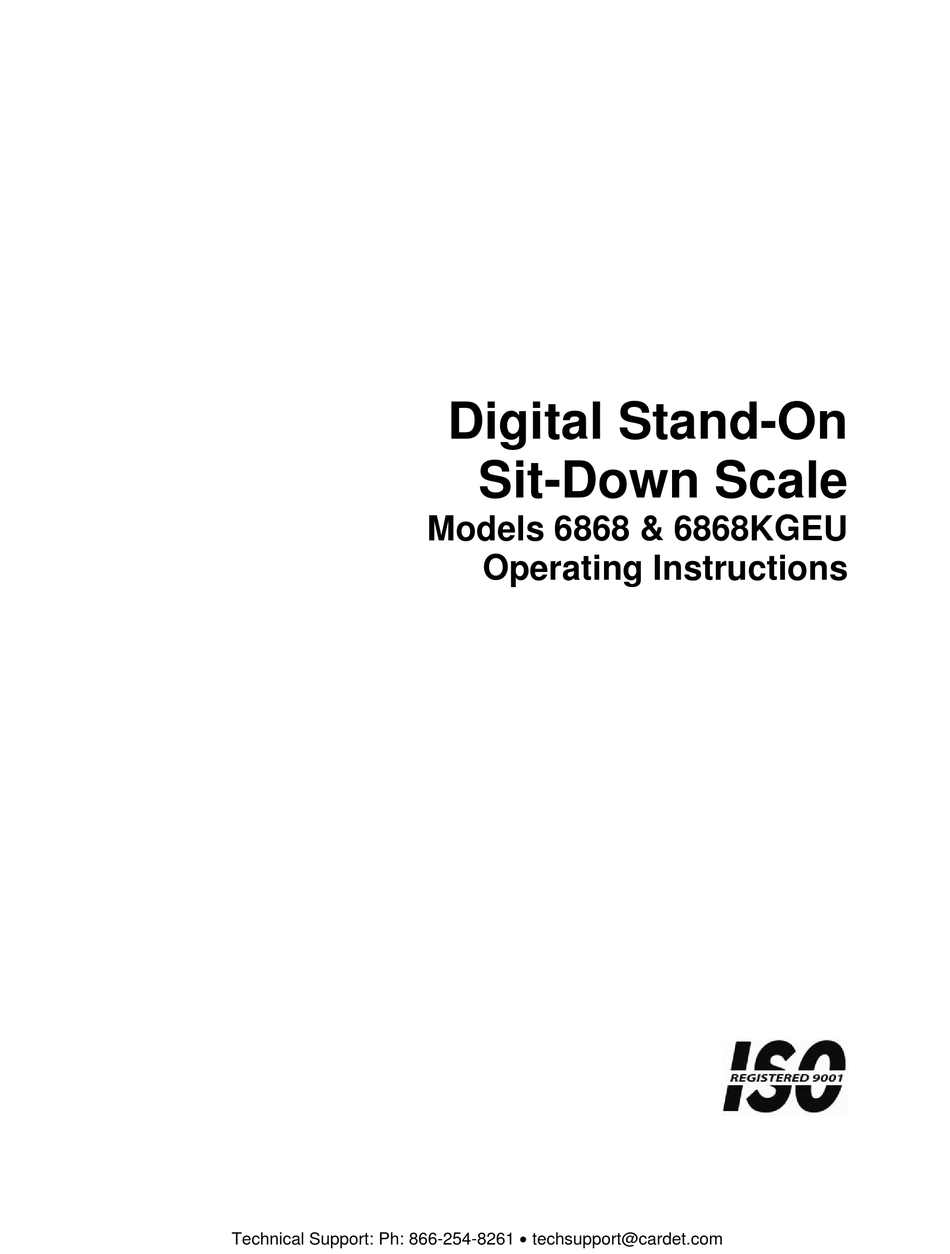

  • Page 1 Digital Stand-On Sit-Down Scale Models 6868 & 6868KGEU Operating Instructions Technical Support: Ph: 866-254-8261  techsupport@cardet.com 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 2 0065-M502-O1 Rev C  6868 & 6868KGEU...

  • Page 3: Fcc Compliance Statement

    Serial Number_______________________ PRECAUTIONS Before using this instrument, read this Date of Purchase ____________________ manual and pay special attention to all Purchased Form_____________________ "NOTIFICATION" symbols: ___________________________________ IMPORTANT ___________________________________ RETAIN THIS INFORMATION FOR FUTURE USE 0065-M502-O1 Rev C  6868 & 6868KGEU...

  • Page 4: Specifications

    DIGITAL STAND-ON / SIT-DOWN SCALE Thank you for purchasing our Model 6868 / 6868KGEU Digital Stand-On / Sit-Down Scale. It has been manufactured with quality and reliability at our factory in Webb City, MO USA. Your scale has been tested before leaving our factory to insure accuracy and dependability for years to come.
  • Page 5 7. To re-zero the scale, remove the patient from the scale and press the [ ZERO ] key. 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 6 7. To re-zero the scale, remove all weight from the platform and press the [ ZERO ] key. 0065-M502-O1 Rev C  6868 & 6868KGEU...

  • Page 7: Error And Status Displays

    Motion is present when indicator is attempting to perform one of the following operations: Power Up Zero or Zero Weight Display CALib Indicates calibration is necessary. AdErr ErrA ErrAL Consult your scale service representative. ErrAH EE Err Scale weight exceeds scale capacity OCAP 0065-M502-O1 Rev C  6868 & 6868KGEU...

  • Page 8: Part Identification

    PART IDENTIFICATION Load Cell and Foot Mounting Detail 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 9 PART IDENTIFICATION, CONT. 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 10 PART IDENTIFICATION, CONT. 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 11 PART IDENTIFICATION, CONT. 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 12 HANDRAIL L/H LFB-250M LOAD CELL 0065-B108-08 ALUM. FOOT 6021-0106 SCW PAN HEAD 6-32x3/8 S.S. TYPE F PHIL DR 6540-1122 RUBBER FOOT 1930-B205-08 SHIM 399R1048 PUSH NUT 6540-1205 WHEEL 593GR986 SERIAL TAG 0033-B110-08 DISK UHMW 0065-M502-O1 Rev C  6868 & 6868KGEU...
  • Page 13 GROMMET .43 THK x .25 I.D. FOR 1/4” PANEL 6690-0001 LEVEL BUBBLE 6560-1072 LOCTITE ADHESIVE 0033-B438-0A 750 INDICATOR MOUNTING 6540-0021 HOLE PLUG 6560-0009 ADHESIVE 6024-0009 WASHER FLAT 3/8”  6800-1045 OPTIONAL AC ADAPTER: 100-240VAC/12VDC @ 1A  NOT SHOWN 0065-M502-O1 Rev C  6868 & 6868KGEU...

  • Page 14: Statement Of Limited Warranty

    (1) year from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • Page 15 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
  • Page 16 0065-M502-O1 Rev C  6868 & 6868KGEU...
