iCarsoft Multi-system Scanner i980 User Manual page 12

(If you need the Register Code, please refer to steps 6~9.)
(If you have the Register Code, directly proceed to step 10.)
6. The Register Code can be found in your tool. Connect one
end of the supplied USB cord to your tool, and the other end
on the computer.
7. After the tool has powered up and entered the main menu
screen, move the highlight bar on the Tool Information and
press the [OK] button.

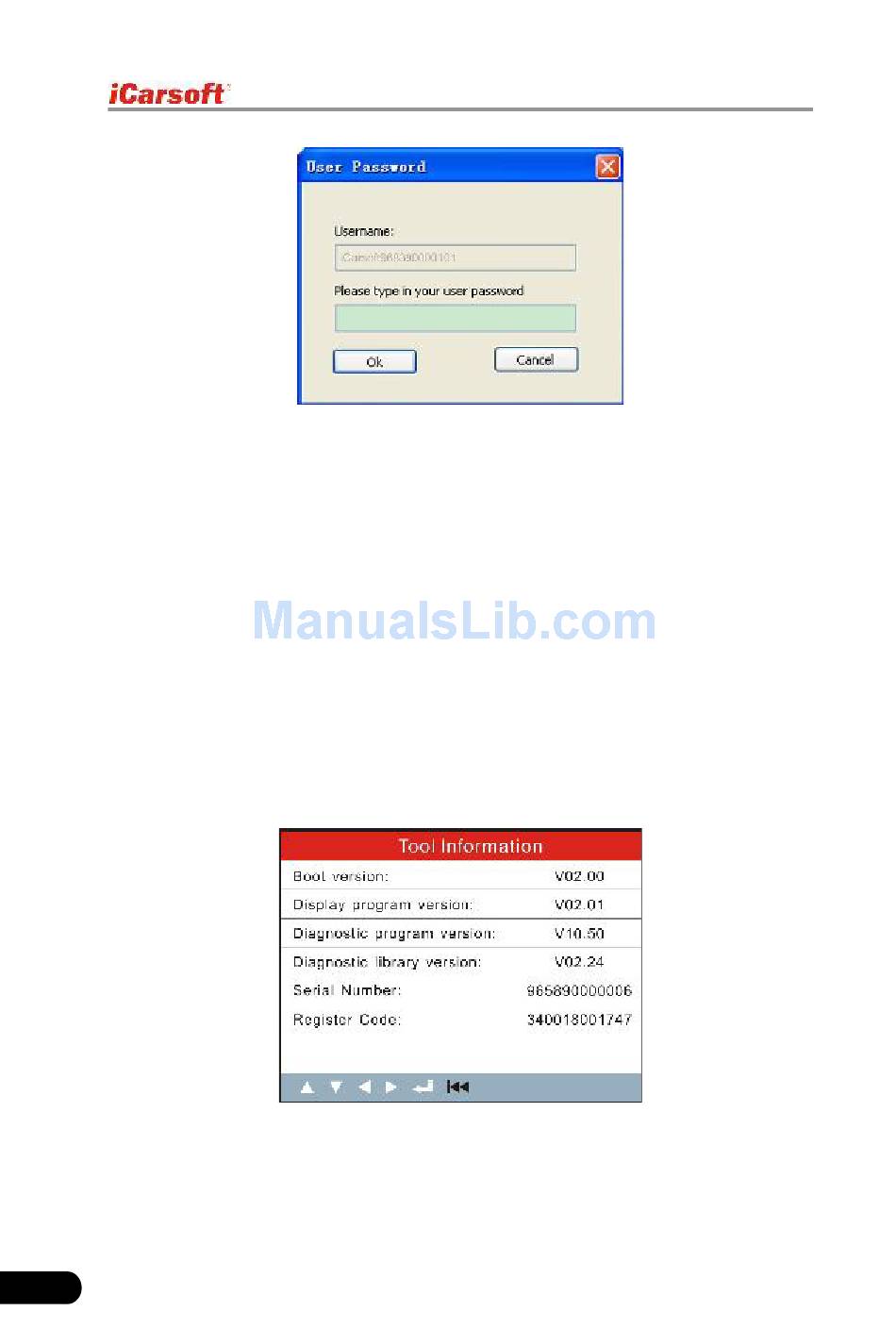

8. The Register Code shown in Figure 5-3 is the Register Code
needed in step 5.
(Return to step 5 and input the Register Code and then
10
Multi-system Scanner Series User's Manual
Figure 5-2
Figure 5-3
proceed)
