TP-Link TL-R470T+ Quick Installation Manual

Quick Installation Guide

Load Balance Broadband Router
TL-R470T+
MODEL NO.
2

Hardware Connection

1 Connect the WAN port of the router to the cable or DSL
modem via Ethernet cable. Here we take the ADSL modem
from TP-LINK as an example.
2 Connect a LAN port of the router to the computer by an
Ethernet cable.
3
2
7106504439 REV3.0.0

Package Contents

TL-R470T+
Ethernet Cable Power Cord
Load Balance Broadband Router
MODEL NO. TL-R470T+
Resource CD QIG
The provided power cord may be different due to local
3 Connect the AC power cord to the AC power socket on the
router, and the other end into an electrical outlet. The router
will work automatically and the LED will display as the LED
Descriptions shown.
TL-R470T+
TD-8816
Internet
1
1

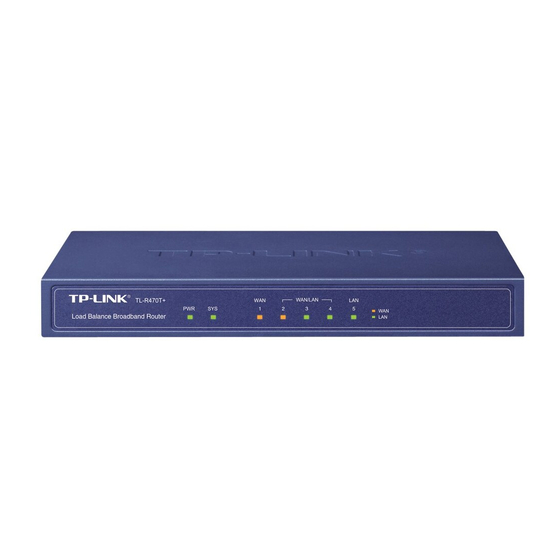

Physical Description

• Front Panel
• Back Panel
• LED Descriptions
Indication
Name Status
On (Green) The router is powered on
PWR
Off The router is powered off
Flashing (Green) The router works properly
SYS
On/Off The router has a hardware error
On There is a device linked to the corresponding port but not active (Green indicates the
(Green/Yellow)
corresponding port is working as a LAN port, and yellow indicates WAN port)
WAN, LAN Flashing The corresponding port is transmitting or receiving data (Green indicates the
(Green/Yellow) corresponding port is working as a LAN port, and yellow indicates WAN port)
Off There is no device linked to the corresponding port
3
Click "Start" "Control Panel"
1 For Windows XP/2000: "Network
and Internet Connections" "Network Connections", and
.
then find "Local Area Connection" icon and click it. Then click
"Properties".
For Windows Vista/7: Click "Start" "Control Panel" "View
network status and tasks".
For Windows Vista For Windows 7
Click "View Status" Click "Local Area Connection"
Select the " Internet Protocol (TCP/IP) "/" Internet Protocol
2 "
Version 4 (TCP/IPv4)" and click the " Properties".
For Windows XP/2000 For Windows XP/2000 For Windows 7/Vista
3 Select "Obtain an IP address automatically " and "Obtain
server address automatically ". Then click "OK".
DNS
For Windows XP/2000 For Windows 7/Vista
