TP-Link TL-R470T Quick Installation Manual

Load balance broadband router
Hide thumbs

Advertisement

Quick Links

Quick Installation Guide

Load Balance Broadband Router
TL-R470T+
MODEL NO.
2

Hardware Connection

1
Connect the WAN port of the Router to the Cable or DSL
Modem via Ethernet cable.
Here we take the ADSL Modem
from TP-LINK as an example.
2
Connect a LAN port of the Router to the computer by an
Ethernet cable.
3
2
7106503654

Package Contents

TL-R470T+
Ethernet Cable
Power Cord
Load Balance Broadband Router
MODEL NO.
TL-R470T+
Resource CD
QIG
The provided power cord may be different due to local
power speci cations.
3
Connect the AC power cord to the AC power socket on the
Router, and the other end into an electrical outlet. The Router
will work automatically and the LED will display as the LED
Descriptions shown.
TL-R470T+
TD-8816
Internet
1
1

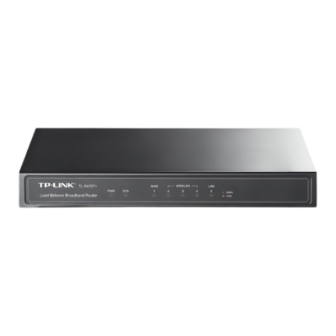

Physical Description

• Front Panel
• Back Panel
• LED Descriptions
Indication
Name
Status
On (Green)
The Router is powered on
PWR
O
The Router is powered o
Flashing (Green)
The Router works properly
SYS
On/O
The Router has a hardware error
On
There is a device linked to the corresponding port but not active (Green indicates the
(Green/Yellow)
corresponding port is working as a LAN port, and yellow indicates WAN port.)
WAN, LAN
Flashing
The corresponding port is transmitting or receiving data (Green indicates the
(Green/Yellow)
corresponding port is working as a LAN port, and yellow indicates WAN port.)
O
There is no device linked to the corresponding port
3
PC Con guration
Click "Start" "Control Panel"
1
For Windows XP/2000:
"Network
and Internet Connections"
"Network Connections", and
.
then find "Local Area Connection" icon and click it. Then click
"Properties".
For Windows Vista/7:
Click "Start"
"Control Panel"
"View
network status and tasks".
For Windows Vista
For Windows 7
Click "View Status"
Click "Local Area Connection"
Select the " Internet Protocol (TCP/IP)
"/"
Internet Protocol
2
"
Version 4 (TCP/IPv4)" and click the " Properties".
For Windows XP/2000
For Windows XP/2000
For Windows 7/Vista
3
Select "Obtain an IP address automatically " and "Obtain
server address automatically ". Then click "OK".
DNS
For Windows XP/2000
For Windows 7/Vista
