Summary of Contents for Optima Scale OPH-Z

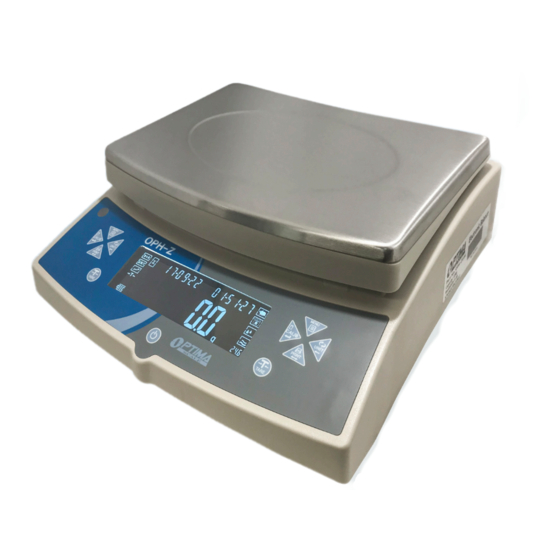

- Page 1 OPH-Z WEIGHING SCALE USER’S MANUAL optimascale.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Precautions Preparations and Set Up Key Explination Display Explination Calibration Operating Instructions Settings 7-11 Sepecifications Dimensions Contact Us... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS • To avoid damaging the battery do not keep charger plugged in once battery is fully charged • Avoid installing the balance in direct sunlight. This may cause poor performance or malfunctions. • Do not mix batteries, replace all 4 batteries at the same time •... -
Page 4: Preparations And Set Up
PREPARATIONS & SET UP • Place your balance on a flat, stable and level surface that is free of vibration and drafts and free from corrosive and strong magnetic fields as they have adverse effects on the weighing sensors • Level your balance by adjusting the feet to center the bubble in the spirit level •... -
Page 5: Key Explination
KEY EXPLANATION Powering On • Turn on the power by pressing the button located under the scale’s screen. Once on, the scale will flash the maximum capacity then enter the weighing mode and display “0” Menu • Press and hold MENU for 5 seconds to enter the settings mode •... -
Page 6: Display Explination
DISPLAY EXPLANATION Accumulate Symbol Quantity Symbol Current Symbol Menu Level/Date/Number Display Divider Line Unit Price Time/Number/Item Menu Item and Weighing Result Battery Symbol Zeroing Symbol Minus Symbol Tare Symbol Peak Holding Symbol Gross/Net/Tare Weight High/Low Limit Symbol Unit Symbol Temperature Symbol Filter Symbol Sensitivity Symbol Density Symbol... -
Page 7: Calibration
CALIBRATION When to calibrate • When the scale is initially installed • When the scale’s location has changed • After the scale has not been used for a long period of time • If ambient temperatures have changed greatly How to Calibrate (Span) •... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Preparation: • Turn machine on • Allow to warm up for five minutes To weigh: • Add weight to the scale, the display will show result • Use the unit key to change between units To tare: • The Tare function is used when you only wish to see the current change in weight, not the entire amount of weight that is on the scale •... -
Page 9: Settings
SETTINGS Hiding Units Operator can choose which units it wants to display by turning each unit on or off which will either display or hide each unit from the display screen. Instance LCD Screen Key (Order) Step Explanation Display Press and Hold 1. - Page 10 Date Setting Operator can setup machine date in the setting menu. Instance ( Example: 2015 Year - 05 Month -10 Day ) LCD Screen Key (Order) Step Explanation Display Press and Hold 1. Display Menu [MENU] Key Short Press [MENU] Key 2.
- Page 11 Time Setting Operator can setup machine time in the setting menu. Instance LCD Screen Key (Order) Step Explanation Display Press and Hold 1. Display Menu [MENU] Key Short Press [MENU] Key 2. Enter Into Setting Menu Short Press [CAL] Key 3.
- Page 12 Backlight On/Off Setting Operator can turn on/off/auto backlight in the setting menu. Instance LCD Screen Key (Order) Step Explanation Display Press and Hole 1. Display Menu [MENU] Key Short Press [MENU] Key 2. Enter Into Setting Menu Short Press [CAL] Key 3.
-
Page 13: Settings
Communication Settings LCD Screen Key (Order) Step Explanation Display Press and Hold 1. Display Menu [MENU] Key 2. Enter into Communication Setting Short Press [MENU] Key Two Times 3. Enter into Baud rate Setting Short Press [CAL] Key * Press [PRINT] key and select different baud rate in turns: 12: 1200bps, 24: 2400bps, 48: 4800bps, 96: 9600bps Short Press [MENU] Key 4. - Page 14 Unit Signal Unit Unit Exchange Rate Gram Carat 0.03527396200 Ounce 0.03215074700 Troy Ounce Pennyweight 0.64301493100 Grains 15.43235835000 Pound 0.00220462260 Newton 0.00980654189 Dram 0.56438222222 Taiwan Tael 0.02666666000 Singapore Tael 0.02645544638 Hong Kong Tael 0.02671725000 Tola 0.08573532418 T/A/R tola / anna / rati T.A.R 0 .
- Page 15 SPECIFICATIONS Features Benefi ts Large Capacity and High Resolution Works for various applications Rugged Construction Assures fast, stable, and reproducible results Large stainless steel pan Allows for easy weighing of large objects Date, Time and Temperature displays Advanced, user-friendly features Legendary VATN High Contrast LCD screen Ensures clear readings in any conditions Leveling feet with level bubble Makes it level even on uneven working surfaces...
-
Page 16: Dimensions
DIMENSIONS 8.5” 4.5” 12” 11.5” 12” CONTACT US Please e-mail sales@optimascale.com for any sales related question Please e-mail support@optimascale.com for any support related questions Don’t forget to visit our website at: optimascale.com...
