Summary of Contents for Connect Tech Rosie

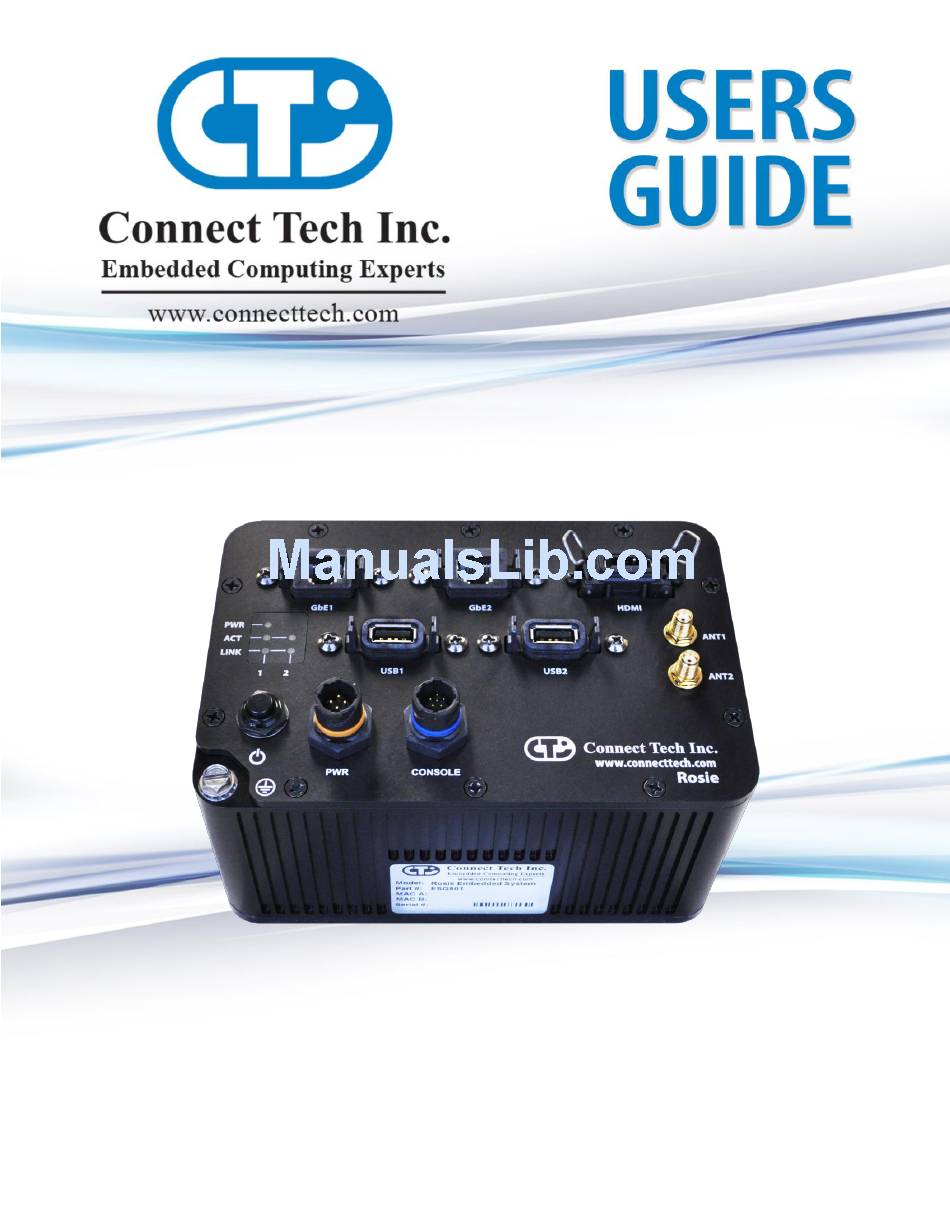

- Page 1 Rosie Embedded System Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00463 Revision 0.09 2018/07/31...
-
Page 2: Table Of Contents
Ingress Protection Package (IP68) ......................16 NVIDIA Jetson TX2/TX2i/TX1 Software ..................... 16 Mechanical Mounting Package ......................16 Mechanical Details ..........................17 ISO View – Rosie Embedded System without Mounting Brackets .............. 17 Cables ..............................19 Available Cables ............................19 Document: CTIM-00463... -
Page 3: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 4: Limited Product Warranty
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the outside of the package and sent prepaid, insured and packaged for safe shipment. -
Page 5: Revision History
Added cable drawing links, removed drawings from doc 0.06 2017/08/14 Updated LED Colour Information 0.07 2017/12/12 Updated TX2 specs 0.08 2018/02/06 Updated introduction and product images 0.09 2018/07/31 Added TX2i compatibility Document: CTIM-00463 Page 5 of 19 Date: 2018/07/31 Revision: 0.09 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 6: Introduction
Introduction Connect Tech’s Rosie is a small form factor, rugged embedded system based on the NVIDIA® Jetson™ TX2, TX2i, or TX1. Housed in a compact enclosure with optional mounting brackets, Rosie features revolutionary NVIDIA Maxwell™ architecture with 256 CUDA cores delivering over 1 TeraFLOP of performance with a 64-bit ARM A57 CPU. -
Page 7: Product Overview
Rosie Embedded System Users Guide www.connecttech.com Product Overview Connector Locations Document: CTIM-00463 Page 7 of 19 Date: 2018/07/31 Revision: 0.09 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 8: Connector Summary
Power Input Power Input Connector CONSOLE Console Port Console Connector Switch Summary Designator Function Description Power Button Power ON/OFF Rosie System Power ON/OFF Button Document: CTIM-00463 Page 8 of 19 Date: 2018/07/31 Revision: 0.09 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Detailed Feature Description
Image. Power Input The Rosie Embedded System accepts a single power input to power the entire System. An input range of +9.0V to +36.0V DC is required. In addition, both reverse polarity protection, and surge protection has been designed into the Rosie Embedded System. -
Page 10: Console
Users Guide www.connecttech.com Console The Rosie Embedded System has a console port to allow for remote or headless use of the System. With an RS-232 Link, the Console port allows for additional debug of the Rosie Embedded System. Function Console... -
Page 11: Usb 2.0
Protection section for details. Antenna 1 The Rosie Embedded System enables access to the NVIDIA Jetson TX2/TX2i/TX1 at its core. The external SMA Antenna 1 Connector is attached internally to the J8 U.FL on the Jetson TX2/TX2i/TX1. Function Antenna 1... -
Page 12: Antenna 2
Rosie Embedded System Users Guide www.connecttech.com Antenna 2 The Rosie Embedded System enables access to the NVIDIA Jetson TX2/TX2i/TX1 at its core. The external SMA Antenna 2 Connector is attached internally to the J9 U.FL on the Jetson TX2/TX2i/TX1. Function Antenna 2... -
Page 13: Switch Description
Rosie Embedded System Users Guide www.connecttech.com Switch Description The Rosie Embedded System has a single Power Button on the Front Faceplate. Power Button Function Power Button Location Power Symbol Ground Lug The Rosie Embedded System has a single Ground Lug on the Front Faceplate. -
Page 14: Typical Operation
Connect any additional system cables such as usb or ethernet Switch ON the Power Supply. DO NOT power up your system by plugging in live power The Rosie Embedded System will now auto start. Please allow it 15 to 30 seconds to power up into the Ubuntu Operating System System LED’s... -
Page 15: Current Consumption Details
Theoretical absolute maximum total draw of all functionality on the Rosie Embedded System Below are measurements taken with the Rosie Embedded System running in various configurations. Please refer to the NVIDIA Jetson TX2, TX2i or TX1 manual for full details on the current consumption and operational details. -
Page 16: Ingress Protection Package (Ip68)
Mechanical Mounting Package The Rosie Embedded System has an optional mounting package to allow for wall or rack mount use. Details of this mounting hardware can be seen in the Mechanical Detail ISO View’s show in the Mechanical Details section. -
Page 17: Mechanical Details
Rosie Embedded System Users Guide www.connecttech.com Mechanical Details A complete 3D STEP Model file of Rosie Embedded System can be downloaded here: http://www.connecttech.com/ftp/3d_models/ROSIE.zip ISO View – Rosie Embedded System without Mounting Brackets Document: CTIM-00463 Page 17 of 19 Date: 2018/07/31 Revision: 0.09... - Page 18 Rosie Embedded System Users Guide www.connecttech.com ISO View – Rosie Embedded System with Mounting Brackets Document: CTIM-00463 Page 18 of 19 Date: 2018/07/31 Revision: 0.09 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 19: Cables
Rosie Embedded System Users Guide www.connecttech.com Cables The following table summarizes the Rosie Embedded System cables available. Available Cables Drawing No. Part No. Description CTIC-00557 CBG219 Rosie External Power Cable CTIC-00558 CBG220 Console Cable Document: CTIM-00463 Page 19 of 19 Date: 2018/07/31 Revision: 0.09...
