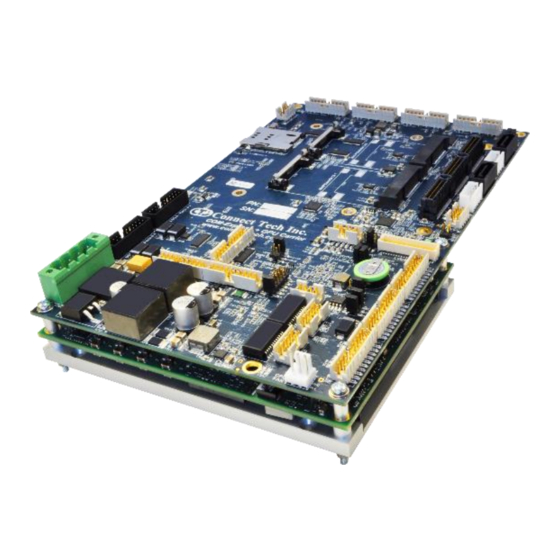

COM Express
VXG Series
Connect Tech Inc.
42 Arrow Road
Guelph, Ontario
N1K 1S6
www.connecttech.com
CTIM-00409 Revision 0.12 2018-03-16
®
+ GPU Embedded
System (VXG/DXG)
DXG Series
Tel:
519-836-1291
Toll:
800-426-8979 (North America only)
Fax:
519-836-4878
Email:
sales@connecttech.com
support@connecttech.com
Advertisement
Table of Contents
Related Manuals for Connect Tech VXG Series
Summary of Contents for Connect Tech VXG Series

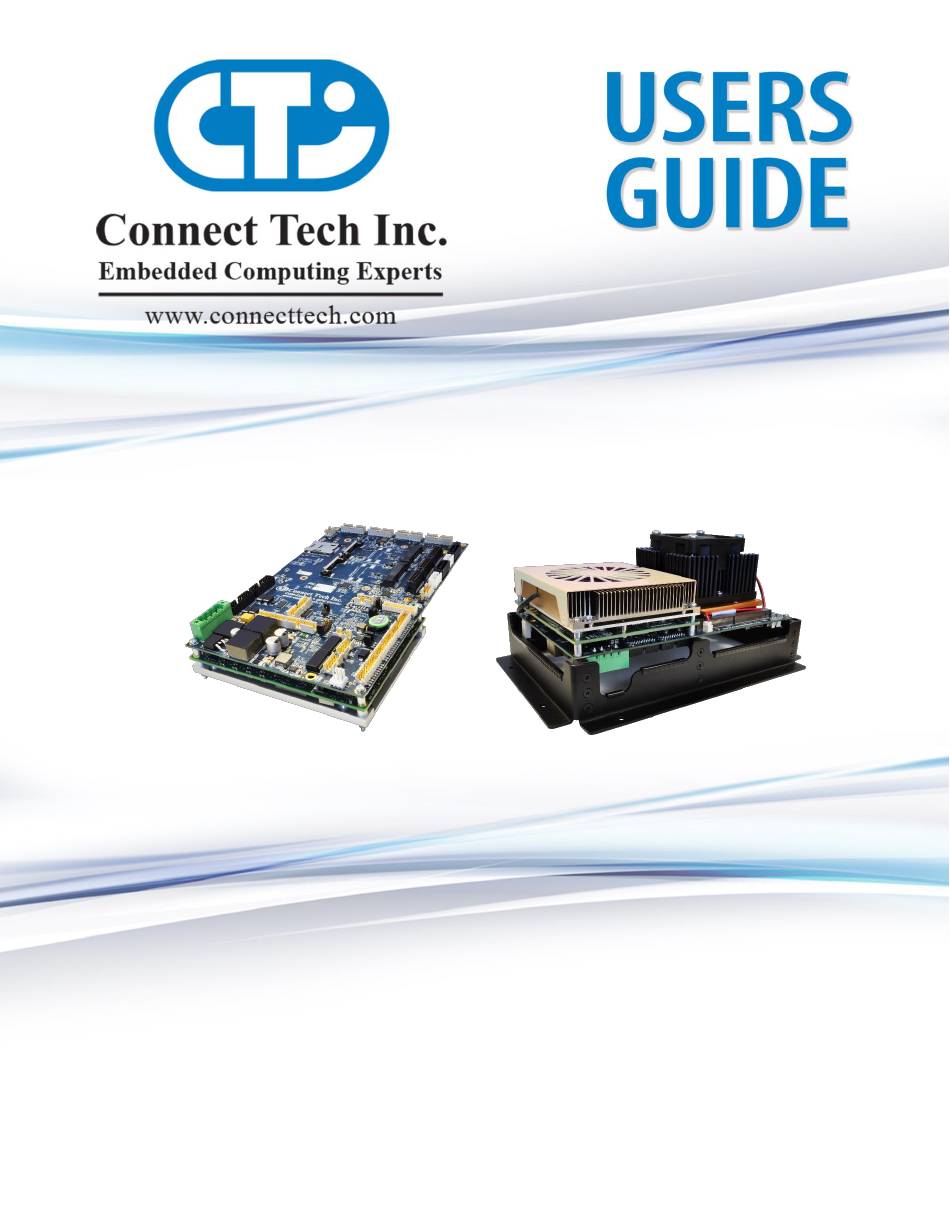

- Page 1 ® COM Express + GPU Embedded System (VXG/DXG) VXG Series DXG Series Connect Tech Inc. Tel: 519-836-1291 42 Arrow Road Toll: 800-426-8979 (North America only) Guelph, Ontario Fax: 519-836-4878 N1K 1S6 Email: sales@connecttech.com www.connecttech.com support@connecttech.com CTIM-00409 Revision 0.12 2018-03-16...
-
Page 2: Table Of Contents
CARD Connector ........................ 31 USB 3.0/2.0 Connector ........................31 Serial 32 Serial/GPIO Connector ........................32 Jumper – GPIO Power Selection (J800) ......................32 Document: CTIM-00409 Date: 2018-04-10 Page 2 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 3 Cables and Cable Kit Information ....................... 48 Cable Kits ..............................48 CKG053 – “Full” Cable Kit ....................... 48 CKG021 – “Starter” Cable Kit ......................48 Additional Available Cables ....................... 48 Document: CTIM-00409 Date: 2018-04-10 Page 3 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 4: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 5: One Year Limited Warranty
The Connect Tech Inc. 1-Year Warranty is only valid over the serviceable life of the product. This is defined as the period during which all components are available. Should the product prove to be irreparable, Connect Tech Inc. -
Page 6: Esd Warning
ESD Warning Electronic components and circuits are sensitive to Electro Static Discharge (ESD). When handling any circuit board assemblies including Connect Tech VXG/DXG System, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: ... -
Page 7: Introduction
Introduction Connect Tech’s COM Express ® + GPU Embedded System from Connect Tech combines the latest generation x86 processors with high-end Graphics Processing Units (GPU) all into a ruggedized small form factor ® ® embedded system. Choose from Intel® Xeon® E3-1515M/1505L options and from NVIDIA Quadro ®... -
Page 8: Product Features And Specifications
(0°C to +55°C ), and (-40°C to +85°C) Options Available Range Standoffs 4x PCIe/104 Female to Female Standoffs * * +12V DC input supported in some applications Document: CTIM-00409 Date: 2018-04-10 Page 8 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 9: Part Number And Ordering Information
0°C to +55°C 32GB DDR4 (+32°F to +131°F) DXG302 Intel® Xeon® E3-1515M V5, NVIDIA® Tesla® M6 0°C to +55°C 32GB DDR4 (+32°F to +131°F) Document: CTIM-00409 Date: 2018-04-10 Page 9 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 10: End Of Life Information
Part Numbers have been removed from the Part Number and SKU Information Table above. The remainder of the Manual includes information on the NVIDIA GeForce GTX 970, 950, 745M for Reference ONLY. For additional information and inquiries please contact Connect Tech Inc. Document: CTIM-00409 Date: 2018-04-10 Page 10 of 48 Revision: 0.12... -
Page 11: Product Overview
COM Express® + GPU Embedded System (VXG/DXG) Users Guide www.connecttech.com Product Overview Block Diagram Document: CTIM-00409 Date: 2018-04-10 Page 11 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 12: Connector Locations
COM Express® + GPU Embedded System (VXG/DXG) Users Guide www.connecttech.com Connector Locations Note: PCIe/104 Standoffs not Shown Document: CTIM-00409 Page 12 of 48 Date: 2018-04-10 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 13: Connector Summary
DP++ 0 COM Express DisplayPort++ 0 P26B DP++ 1 COM Express DisplayPort++ 1 P600 SD CARD microSD Card Connector P700 Vertical Screw Terminal Power Connector Document: CTIM-00409 Date: 2018-04-10 Page 13 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 14: Jumper Summary
Jumper selection for PCIe UART (EERPOM, Auto RS-485 Mode) and for RS-485 TX/RX Control J800 GPIO-V Jumper selection for the GPIO VCC (Can be +3.3V or +5V) Document: CTIM-00409 Date: 2018-04-10 Page 14 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 15: Detailed Feature Descriptions
TE Connectivity Board to Board Connector Carrier 3-6318491-6 Connector Manufacturer: TE Connectivity Mating 3-1827231-6 Connector Manufacturer: TE Connectivity Pinout Refer to COM Express R2.0 specification, Type-6 Document: CTIM-00409 Date: 2018-04-10 Page 15 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 16: Cpu Fan
CPU Fan Function CPU Fan Location Type Molex Solid Header with Friction Lock 22232031 Mating 22012035 (Or Equivalent) Cable Pinout Description TACH +VCC Document: CTIM-00409 Date: 2018-04-10 Page 16 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 17: Video/Display Outputs
FCI Minitek Double Row 5 x 2 98424-G52-10LF Mating 10073599-010LF Cable CBG120 Pinout Description Description DAC RED DAC GREEN DAC BLUE SC DDC HSYNC SD DDC VSYNC Document: CTIM-00409 Date: 2018-04-10 Page 17 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 18: Lvds Video (Com Express Output)
Jumper – LVDS Panel Power (J2) Function LVDS PANEL Power Location Modes Position Description +12V LVDS PANEL Power +12V LVDS PANEL Power +5V +3.3V LVDS PANEL Power +3.3V Document: CTIM-00409 Date: 2018-04-10 Page 18 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 19: Displayport Connector (Gpu & Com Express Output)
DisplayPort Connectors may require a change to the COM Express BIOS to swap output formats. However the GPU DisplayPort Connectors are Hot Swappable and require only a cable change. DisplayPort-HDMI/DVI Switching Diagram Document: CTIM-00409 Date: 2018-04-10 Page 19 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 20: Default Display Device
DDC DATA TMDS1- DDC CLK TMDS0+ Hot Plug Detect TMDS- +3.3V DP/TMDS SEL Note [5]: Cable assembly must tie high (+3.3V) for HDMI/DVI output Document: CTIM-00409 Date: 2018-04-10 Page 20 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 21: Com Express Bios Vga Display
GE bCOM6 L1400 COM Express Modules. Congatec conga-TS87 Main BIOS Screen Navigate to the Right to the Advanced Screen Navigate to the Graphics Screen Document: CTIM-00409 Date: 2018-04-10 Page 21 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 22 Primary Graphics Device – This sets the COM Express to be the Primary Graphics Device. Primary IGD Boot Display Device – This sets the VGA on the COM Express to be the Primary Display Device Document: CTIM-00409 Date: 2018-04-10 Page 22 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 23: Ge Bcom6 L1400
COM Express® + GPU Embedded System (VXG/DXG) Users Guide www.connecttech.com GE bCOM6 L1400 Main BIOS Screen Navigate to the Right to Chipset Screen Document: CTIM-00409 Date: 2018-04-10 Page 23 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 24 Primary Display - This sets the COM Express to be the Primary Graphics Device. However to change the Primary Display Device you will need to Navigate to the LCD Control Screen Document: CTIM-00409 Date: 2018-04-10 Page 24 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
- Page 25 The LCD Control Screen has the following control: Primary IGFX Boot Display - This sets the VGA on the COM Express to be the Primary Display Device Document: CTIM-00409 Date: 2018-04-10 Page 25 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 26: Graphics Processing Unit (Gpu)
The VXG/DXG System provides two external Fan connections. One of these is on the bottom side of the PCB near the GPU Module. Function GPU Module Fan Location Type Molex Pico-SPOX 087437-0343 Mating Pin Housing: 087439-0300 Terminals: 087421-0000 Cable Pinout Description +12V Document: CTIM-00409 Date: 2018-04-10 Page 26 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 27: Gpu Options
Memory Interface 128-Bit 256-Bit Memory Bandwidth 112 GB/s 320 GB/s Output Channels Power Draw 150W Single Precision Compute Power 2.29 TFLOPS 7.96 TFLOPS Open CL Document: CTIM-00409 Date: 2018-04-10 Page 27 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 28: Hd Audio
Additional drivers will be needed to properly operate audio on the VXG/DXG System. Some downloadable links can be found below. Windows XP Driver: http://www.cirrus.com/en/pubs/software/CS4207_WinXP_1-0-0-38.zip Windows 7/Vista Driver: http://www.cirrus.com/en/pubs/software/CS4207_WinVista_Win7_32-64-bit_6- 6001-1-30.zip Linux Driver: Included in kernels 2.6.30 and up. Document: CTIM-00409 Date: 2018-04-10 Page 28 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 29: 10/100/1000 Ethernet (Gbe)
Cable Pinout Description Description GBE 1 – ACT# +3.3V GBE 1 – LINK +3.3V GBE 0 – ACT# +3.3V GBE 0 – LINK +3.3V Document: CTIM-00409 Date: 2018-04-10 Page 29 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 30: Usb & Microsd
Location J727 Modes Position Jumper ON Jumper OFF VBUS Power ON VBUS Power OFF No Function No Function USB 2.0 on Connector SD Card Controller Document: CTIM-00409 Date: 2018-04-10 Page 30 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 31: Microsd Card Connector
Port B - SSTX- Port B - SSTX+ Port A - D- Port A - D+ Port B - D- Port B - D+ Document: CTIM-00409 Date: 2018-04-10 Page 31 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 32: Serial
Note: GPIO is not available on Intel® Core™ i7-3517 COM Express Module Jumper – GPIO Power Selection (J800) Function GPIO Power Location J800 Modes Position Description GPIO +5V +3.3V GPIO +3.3V Document: CTIM-00409 Date: 2018-04-10 Page 32 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 33: Rs-232 Serial Connector
Port B – RXD Port B – RTS Port B – TXD Port B – CTS Port B – DTR Port B – RI Document: CTIM-00409 Date: 2018-04-10 Page 33 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 34: Rs-485 Connector
Additional drivers will be needed to properly operate the 4 additional serial ports on the COM Express carrier. Drivers for this functionality can be found on the product page here: http://connecttech.com/product/com-express-gpu-embedded-system/ Document: CTIM-00409 Date: 2018-04-10 Page 34 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 35: Jumper - Serial Uart And Rs-485 Control (J728)
Control Control Control PCIe UART - Enable RS- Disable RS- 485 Port 1 - 485 Port-1 485 Port-1 RTS-RX RTS-RX RTS-RX Control Control Control Document: CTIM-00409 Date: 2018-04-10 Page 35 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 36: Mini-Pcie/Msata Slots
If you would prefer to have a single slot or both slots populated with half-length hardware at the time of your production order please contact sales@connecttech.com for further details. Document: CTIM-00409 Date: 2018-04-10 Page 36 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 37 SMB_CLK PCIe TX- SATA RX- SMB_DATA PCIe TX+ SATA RX+ USB D- USB D+ +3.3V +3.3V +3.3V +3.3V RESV RESV +1.5V +1.5V +3.3V +3.3V Document: CTIM-00409 Date: 2018-04-10 Page 37 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 38: Sim Socket
Users Guide www.connecttech.com SIM Socket Function SIM Socket Location Type Molex Push-Push SIM Card Connector 0475530001 Pinout Description UIM_PWR UIM_RST UIM_CLK UIM_VPP UIM_DATA SHELL SHELL Document: CTIM-00409 Date: 2018-04-10 Page 38 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 39: External Sata
SATA HDD, SSD, or mSATA. To allow for greater flexibility and customization, switching circuitry allowing for the selection of connecting to an external SATA plug or to the PCIe/104 Type 2 Connector has been added. Document: CTIM-00409 Date: 2018-04-10 Page 39 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 40: Jumper - Sata Ext-Pcie/104 Switching (J1)
PCIe/104 Type 2 Conn SATA 0 External SATA 1 PCIe/104 Type 2 Conn SATA 1 Note [11]: See SATA-PCIe/104 Switching for detailed description of functionality Document: CTIM-00409 Date: 2018-04-10 Page 40 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... - Page 41 Mating ASP-129646-03 Connector Pinout Refer to PCI/104-Express & PCIe/104 Specification, Rev 2.01 NOTE: PCIe/104 Type 2 (SATA in Banks 2/3, No PCIe x16 Link) Document: CTIM-00409 Date: 2018-04-10 Page 41 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291...
-
Page 42: System And Miscellaneous Connector
+12V to +48V for operation. Function Power Location P700 Type FCI Pluggable Terminal Block 20020108-G041A01LF Mating 20020003-G041B01LF (Or Equivalent) Pinout Description Document: CTIM-00409 Date: 2018-04-10 Page 42 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 43: Jumper - Power Control (J725)
This mode is useful if you intend the system to be powered on whenever power is applied, without the need for a power button. To turn OFF all power to the system, the input power must be turned OFF Document: CTIM-00409 Date: 2018-04-10 Page 43 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 44: Rtc Battery
External RTC Battery On-Board RTC Battery Jumper – RTC Battery Clear/Enable (J5) Function RTC Battery Clear/Enable Location Modes Position Description Clear RTC Enable RTC Document: CTIM-00409 Date: 2018-04-10 Page 44 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 45: Typical Hardware Installation Procedure
+12V HDD ACT RESET# D600 SD-ACT D601 SD-PWR D702 +VIN D703 D704 +3.3V See below for a diagram of where these LEDs are located. Document: CTIM-00409 Date: 2018-04-10 Page 45 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 46: Power Consumption
CPU & GPU Stress Test VXG001 - Booted to Windows 7, Quad DisplayPort video outputs, USB keyboard with system running CPU & GPU Stress Test Document: CTIM-00409 Date: 2018-04-10 Page 46 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 47: Mechanical Drawings And Models
VXG 2D Mechanical Dimensioned Plan View Drawing – All dimensions are shown in (mm) DXG 2D Mechanical Dimensioned Plan View Drawing – TBD Document: CTIM-00409 Date: 2018-04-10 Page 47 of 48 Revision: 0.12 Connect Tech Inc. 800-426-8979 | 519-836-1291... -
Page 48: Document: Ctim-00409
COM Express® + GPU Embedded System (VXG/DXG) Users Guide www.connecttech.com Cables and Cable Kit Information Cable Kits The following tables summarize the VXG/DXG System’s available cable kits from Connect Tech. CKG053 – “Full” Cable Kit Description Part Number Drawing No.
