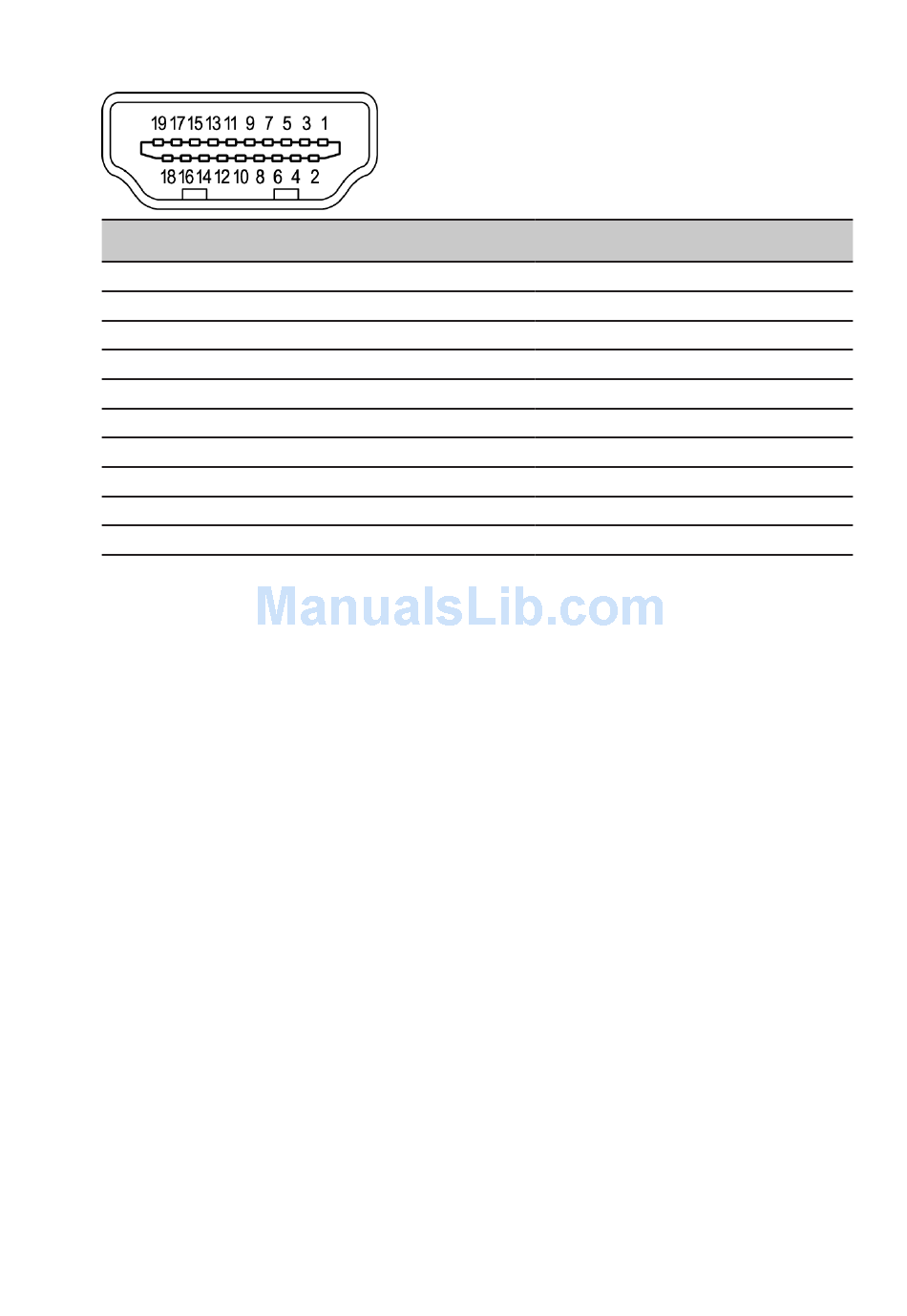

19-pin color display signal cable
PIN No.
1
3
5
7
9
11
13
15
17
19
X27 User Guide English
Description
TMDS Data2+
TMDS Data2-
TMDS Data1 Shield
TMDS Data0+
TMDS Data0-
TMDS Clock Shield
CEC
SCL
DDC/CEC Ground
Hot Plug Detect
PIN No. Description
2
TMDS Data2 Shield
4
TMDS Data1+
6
TMDS Data1-
8
TMDS Data0 Shield
10
TMDS Clock+
12
TMDS Clock-
14
Reserved (N.C. on device)
16
SDA
18
+5V Power
10
