Installation Guide
Perform network test
Once the Danfoss Link™ SCM and all other
devices in the system have been registered
and the Danfoss Link™ CC is placed in its final
position, perform a full network test (see
separate Danfoss Link™ CC manual) .
Transmission test (optional)

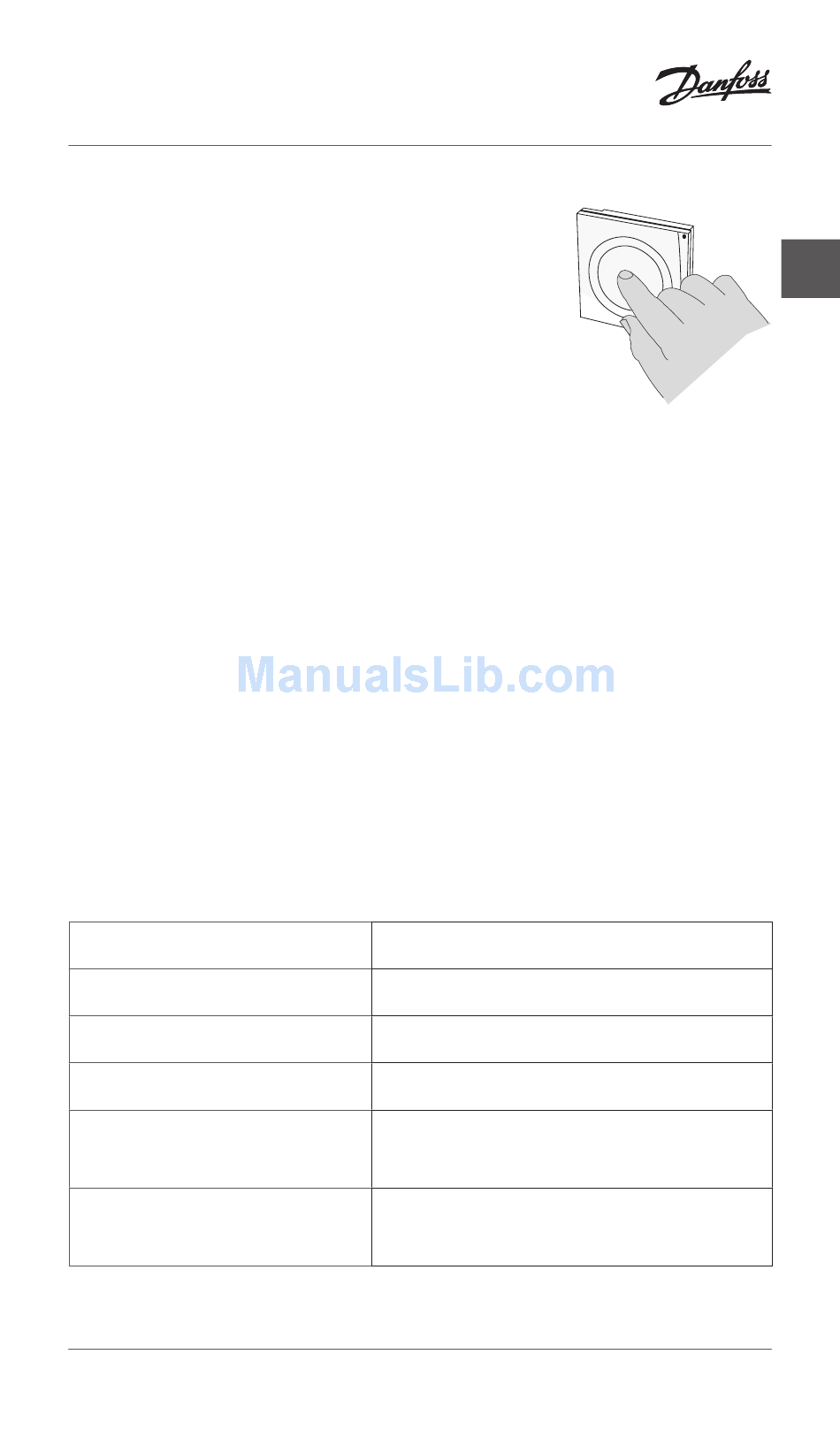

Initiate a transmission test on the Danfoss Link™ SCM by pressing
and holding the install button for more than 2 seconds . If the test
is satisfactory the green LED will flash and a message is displayed
on the Danfoss Link™ CC . If the test fails the red LED will slow
flash continuously .
Factory reset
Turn off the power to the device, then press and hold the install
button in front of the device for approx . 5 seconds while the
power is switched on again . The button must be held until LED
gives a red flash .
Status indicator
Green LED ON
Red LED ON
Green LED fast flash
Green LED short flash
Red LED slow flash
for 5 seconds
Red LED slow flash
continously
VIFZT102
Danfoss Link™ SCM
Away OFF
Away ON
Adding or link test
Ready for adding
Adding not OK
Transmission test not OK or lost
connection to Danfoss Link™ CC
© Danfoss
03/2013
GB
5
