Summary of Contents for Acclaim Lighting Dyna Graze HO Exterior DMX

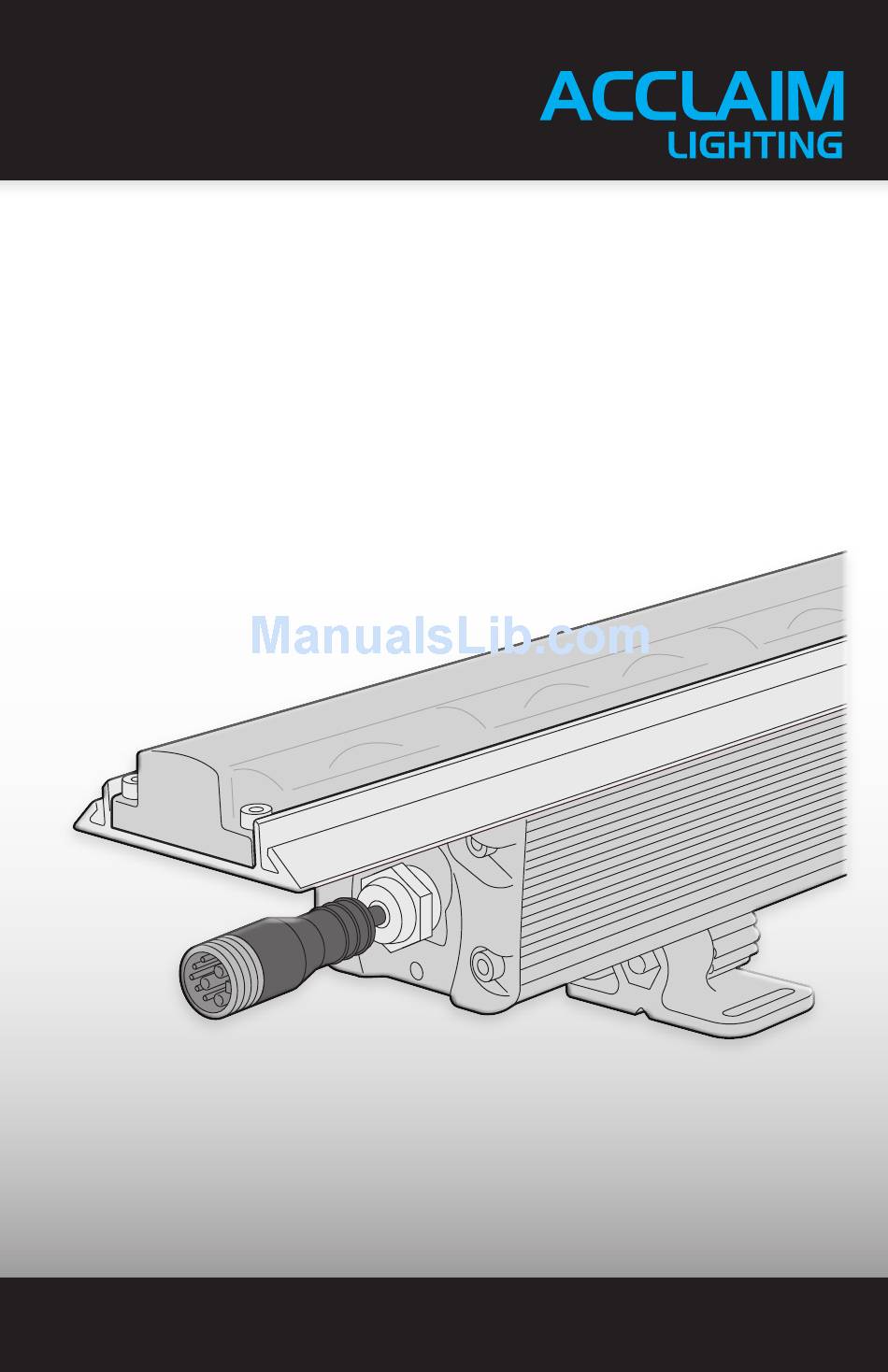

- Page 1 Dyna Graze HO Exterior DMX User guide...
-
Page 3: Table Of Contents
Contents Introduction ..............2 Welcome Safety Supplied items Optional extras Installation ................4 Mount adjustment Optional 90 bracket Fitting the glare shield Fitting an optional louver Power and control wiring DMX channel designations Operation ............... 11 Addressing fixtures DMX personality mode selection Testing emitter output Further information ............ -
Page 4: Introduction
Available in 1’ and 4’ lengths these robust units can be connected in series using combined power and DMX control cables (with IP67-rated connectors) to greatly simplify installation. In both 1’ and 4’ lengths, the Dyna Graze HO Exterior DMX range provides four emitter color options: •... -
Page 5: Supplied Items
Supplied items Dyna Graze HO Exterior DMX 1’ or 4’ with matching glare shield (and two small locking screws) Optional extras Feed cable plus end cap 10’ (3m) [DGHFC10] bracket [DYNAHMF90] Link cables 1’ (30cm) [DGHLC1] 5’ (1.5m) [DGHLC5] 10’ (3m) -
Page 6: Installation
Installation When installing each Dyna Graze fixture, ensure that the surface is level and that nothing is protruding to damage the mounting bracket(s). Suitable mounting surfaces include steel, aluminum, concrete or wood structures. Each mount base has two slots measuring 1” x 0.2” (25 x 5mm) and the base has a thickness of 0.16”... -
Page 7: Optional 90 O Bracket
Optional 90 bracket The standard mount brackets supplied with each Dyna Graze are able to achieve roughly 30 degrees (from vertical) tilt in either direction. To achieve tilt angles up to 90 degrees, you will need to replace the standard brackets with optional 90 brackets. -
Page 8: Fitting The Glare Shield
Fitting the glare shield Each Dyna Graze fixture is supplied with a glare shield which can be fitted on either side of the emitter housing to help conceal the emitters from side view. To insert the glare shield 1 Carefully slide the glare shield into either of the two channels located on either side of the emitter housing. -
Page 9: Fitting An Optional Louver
Fitting an optional louver Optional louvers are available to eliminate side spill in all directions. To fit an optional louver 1 Carefully slide the louver into the two channels located on either side of the emitter housing. Note: You may find that the louver is tight and difficult to slide in, particularly on the 4’ models. If so, smear a small quantity of petroleum jelly onto the angled lips of the louver to help it slide. -
Page 10: Power And Control Wiring
Power and control wiring Power and control are combined within the IP67-rated feed cables cords. Input and output connectors are FINEcables® M20 (3+5P), with a male input connector located at one end and female output connector at the other. Connector placements are such that abutted units can be directly connected without need for extra cables. - Page 11 Maximum number of fixtures The maximum number of fixtures that can be connected (using Acclaim Lighting cable sets) in a single series run is dependant on the supply voltage, as follows: 240/277VAC supply: 100 feet (30m) of total fixture length...
-
Page 12: Dmx Channel Designations
DMX channel designations The various Dyna Graze HO Exterior DMX variants apply their LED emitters to DMX channels in different ways, as summarized in the table below. The 1’ models always operate in Standard (STD) mode while the 4’ models use Extended (EXD) mode by default, but can be changed to standard (STD) mode using a DMX/RDM tool (see page 12). -
Page 13: Operation
Operation Addressing fixtures Dyna Graze HO Exterior DMX fixtures have no external controls and instead rely on RDM (Remote Device Management) for all configuration via the DMX interface. This allows multiple devices to be configured either before or after installation. -
Page 14: Dmx Personality Mode Selection
• Standard (STD) mode - All four emitter sections are addressed collectively. Note: Dyna Graze HO Exterior DMX 1’ models always operate in standard (STD) mode. For a summary of how channels are allocated in both modes for all the model variants, see page 10. -
Page 15: Testing Emitter Output
Testing emitter output After you have addressed each Dyna Graze HO Exterior DMX fixture we recommend that you also test each one prior to installation. This can be achieved with your RDM (Remote Device Management) tool. Various third party DMX/RDM tools are available; Acclaim Lighting particularly recommend the Swisson XMT-350 for this task. -
Page 16: Further Information
Further information Troubleshooting Luminaire doesn’t turn on • Check that power is correctly applied to the fixture and that there is no damage to the power input cord. • Use an RDM tool (such as the Swisson XMT-350) to check the settings and internal temperature of the fixture. -
Page 17: Specifications
Specifications Color models RGB, RGBW, RGBA or Dynamic White (2200-5000K) Beam angle options x 10 , 10 x 60 , 30 x 60 or 60 Illuminance (lm/ft 693 (RGBW 10 x 60 variant @ 100% - 1 foot section) Lumen maintenance (L 150,000 hours (25 Control DMX (+ RDM configuration) fixtures controlled in 1’... -
Page 18: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting™ will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 20 www.acclaimlighting.com...
