Summary of Contents for Acclaim Lighting Quad Eye

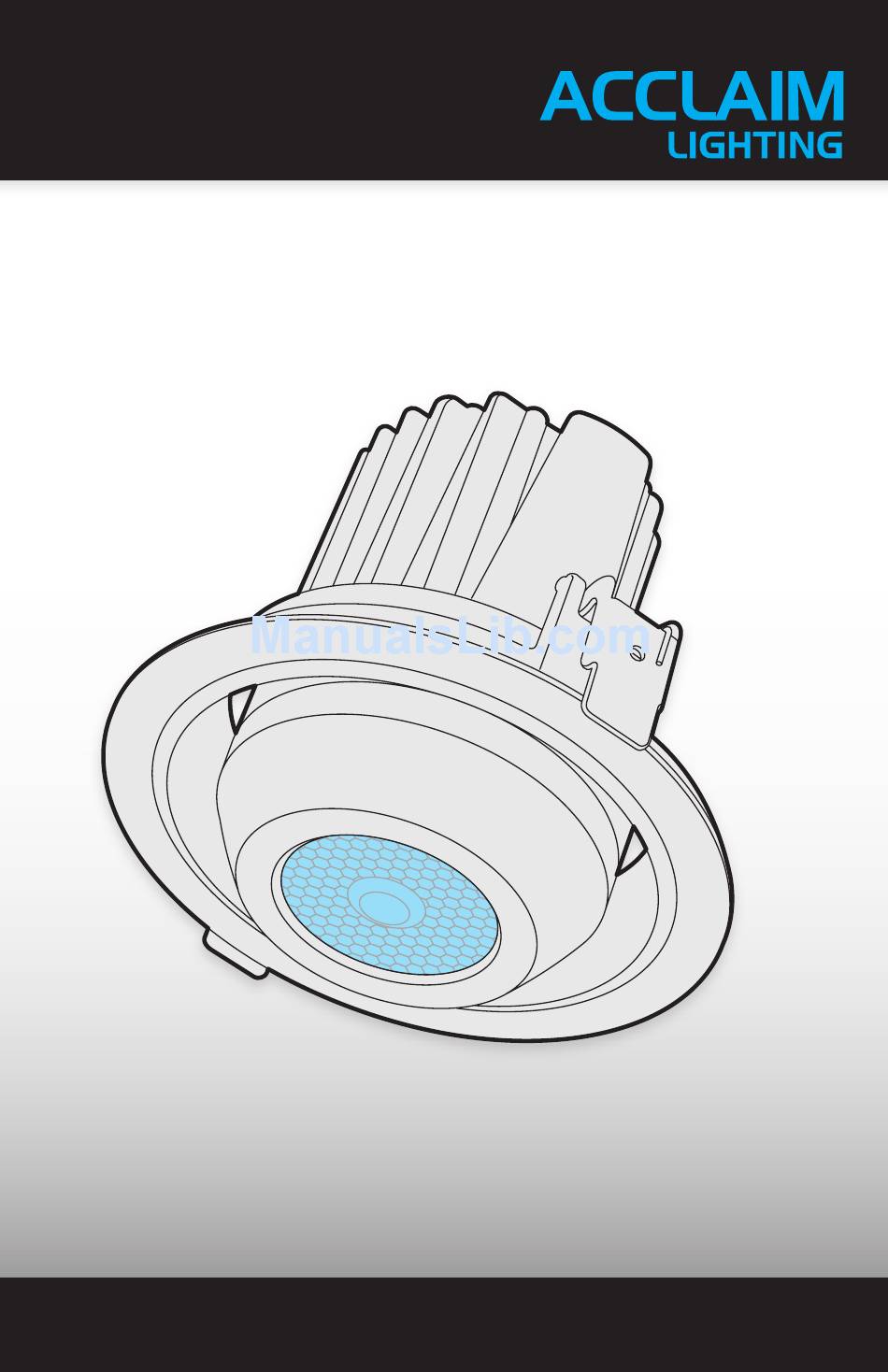

- Page 1 Quad Eye User guide...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............2 Welcome Safety Optional extras INSTALLATION ............4 Power and control wiring OPERATION .............6 Addressing fixtures Testing emitter output FURTHER INFORMATION ........8 Troubleshooting Specifications Dimensions Limited product warranty www.acclaimlighting.com... -
Page 4: Introduction
INTRODUCTION WELCOME Welcome to the Quad Eye from Acclaim Lighting. The Quad Eye is a high output downlight featuring a 10W CREE quad emitter mounted within an adjustable head that rotates and pivots. Each Quad Eye is fully configurable using RDM (Remote Device Management) and can be assigned to any set of DMX addresses (four per fixture). -
Page 5: Optional Extras
OPTIONAL EXTRAS Large power supplies (115-230VAC, 47-63Hz input) 24VDC 240W (powers 11x Quad Eye fixtures) [APS-240-24] 24VDC 480W (powers 22 x Quad Eye fixtures) [APS-480-24] DMX/RDM tool plus male 5pin XLR lead [XMT350] www.acclaimlighting.com... -
Page 6: Installation
Quad Eye fixtures are Non-IC (Insulation Contact) rated and so must have a minimum airspace of 1” (25mm) around and above its outer dimensions (see page 9). Due to the shape of the Quad Eye main body, it can swivel further in one direction than the other:... -
Page 7: Power And Control Wiring
POWER AND CONTROL WIRING Each Quad Eye fixture is supplied with attached power and data cords, roughly 3’ (0.9m) in length, terminated with bare tail connections. POWER Red: +24VDC Quad Eye fixtures require a regulated 24VDC power input: Black: 0V... -
Page 8: Operation
Management) for all configuration via the DMX interface. This allows multiple devices to be configured either before or after installation. Note: Each Quad Eye fixture is supplied with its DMX address set to 001 by default. Various third party DMX/RDM tools are available; Acclaim Lighting recommends the Swisson XMT-350 for this task. -
Page 9: Testing Emitter Output
TESTING EMITTER OUTPUT After you have addressed each Quad Eye fixture we recommend that you also test each one prior to installation. This can be achieved with your RDM (Remote Device Management) tool. Various third party DMX/RDM tools are available; Acclaim Lighting recommends the Swisson XMT-350 for this task. -
Page 10: Further Information
FURTHER INFORMATION TROUBLESHOOTING LUMINAIRE DOESN’T TURN ON • Check that power is correctly applied to the fixture and that there is no damage to the power input cord. • Use an RDM tool (such as the Swisson XMT-350) to check the settings and internal temperature of the fixture. -
Page 11: Dimensions
DIMENSIONS 5.31" (135mm) 3.35" (85mm) 0.71" (18mm) 4.72" (120mm) www.acclaimlighting.com... -
Page 12: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 14 www.acclaimlighting.com...
