Re b e l - B A R - 3 5 0
OPERATION INSTRUCTIONS

PRODUCT DESCRIPTION

Thank you for your purchasing of Rebel-Bar-350.

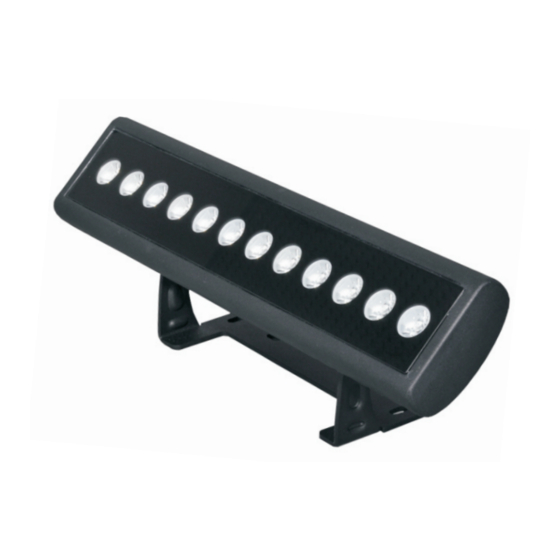

Rebel-Bar-350, using the latest Rebel LEDs, is a wall washer with high reliability. It features RGB
version of 12 RGB Rebel LEDs(4Red, 4Green & 4Blue), CW version of 12 cool white Rebel LEDs, WW
version of 12 warm white Rebel LEDs and NW version of 12 neutral white Rebel LEDs for user selection.
The beam angle of lens is available in 10deg, 25deg, 40deg and 10x35deg. Rebel-Bar-350 can be
controlled and set through a LED Setup Tool. For RGB version, up to 16,000,000 color effects can be
created. RGB, C&B and COLOR modes are for Slave Control. AUTO mode and MANUAL mode are for
With scientific fixing design, its adjustable lamp holders are excellently steady and easy to installation.
Thanks to the IP65 design, Rebel-Bar-350 is perfect for both indoor and outdoor applications. The
fantastic lighting effect makes Rebel-Bar-350 ideal for architectural wash applications and suitable for
high impact scene settings.

TECHNICAL SPECIFICATION

Color Range
Source Life
LED Type
Light Source
Power Supply
Power Consumption
Beam Angle
Listing
Control
IP Rating
Connection
Housing
Operating Temperature
Storage Temperature
Dimension
Weight
*NOTICE:
All rights reserved! Specifications and improvement in the design of the unit and this manual are subject to
change without prior notice.
16.7 million (24bit)
50,000 hours under normal operating conditions
Rebel LED
12pcs Rebel LEDs (4Red, 4Green and 4 Blue) for RGB version
\ 12pcs warm white Rebel LEDs for Warm White version
\ 12pcs cool white Rebel LEDs for Cool White version
\ 12pcs neutral white Rebel LEDs for Neutral White version
AC100-240V, 50/60Hz
30W Max.
o
o
o
o
10 /25 /40 /10x35 (oval)
CE certified
DMX 512 protocol
IP 65
8-pin IP67 waterproof connector
Aluminum extrusion in anodize process
o
o
0 C ~ +40 C
o
o
-20 C ~ +70 C
350(L) x 85(W) x 75(H)mm
1.1Kgs
-1-
