Blue Ox BX1958 Installation Instructions

Base plate

Advertisement

Quick Links

The front fascia and windshield washer reservoir are removed for baseplate installation.
Drilling is required. Trimming of air dam is required. The BX8869 is available for the vehicle. Attachment Tabs
are 17 inches center to center and a height of 21 1/2 inches.

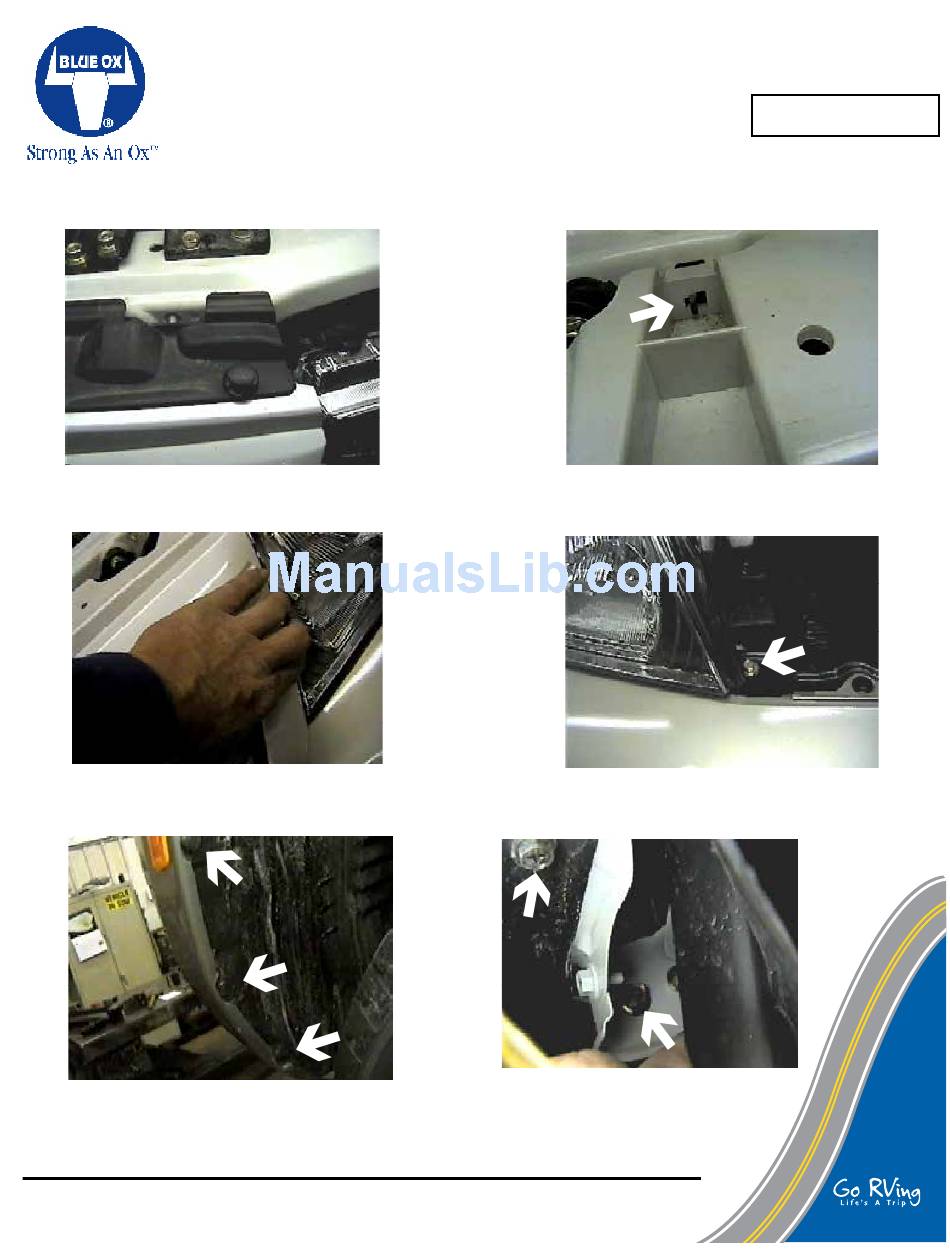

1. Remove the three push pins from black plastic
cover on top side of fascia, lift cover and set
aside.
3. Just inside of head lights pull grill forward to
release on both sides, lift up and set aside.
5. Remove the three push pins just forward of
the front tire, both sides.
© 2003, 05 Blue Ox Division, Automatic Equipment Mfg. Co. • One Mill Road, Industrial Park
Pender, Nebraska 68047 • Phone 402-385-3051 • Fax 402-385-3360 • www.blueox.us
Page 1 of 4
292-2550
BX1958 Installation Instructions
2003-04 Mitsubishi Montero
7/16/08
2. Release the four clips on the top edge of
fascia just under plastic in step 1.
4. Remove three metric bolts from the top of
metal bumper between headlights with the
10MM socket.
6. Pull plastic back just forward of front
tires and remove two metric bolts from
back side of fascia's corner with the
10MM socket, both sides.
Serial No.
TM
