QS4USB INSTALLATION INSTRUCTIONS
2009-2013 Aprilia RSV4 FACTORY / RSV4R
PN's Q940S, Q940R
WARNING!
USE ONLY IN RACE OR OTHER CLOSED COURSE APPLICATIONS AND NEVER ON
PUBLIC ROADS

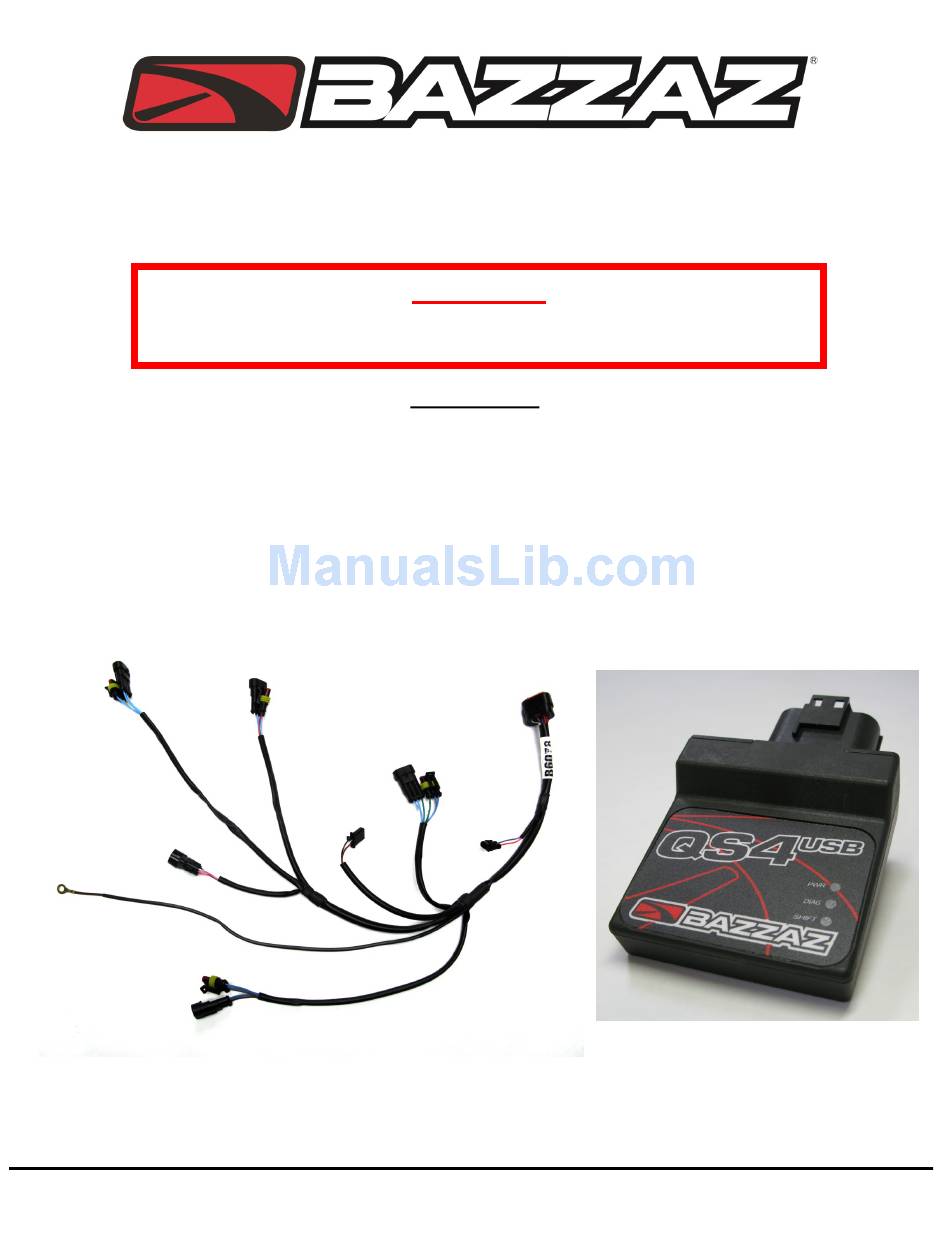

PARTS LIST:
QS4USB Control Unit
Bazzaz Harness
Shift Switch
DOWNLOAD Z-FI MAPPER SOFTWARE & ITS INSTRUCTIONS FROM WEBSITE
USB Cable
Velcro
Bazzaz stickers
Cable ties
Main
Coil #3
Coil #1
Coil #2
Shift
Switch
Shift
Light
Gear
Position
Sensor
Ground
Coil #4
Read through all instructions before beginning installation. If any problem is found, please carefully follow
through the installation steps again. If problem still persists, please call Bazzaz tech support department at
(909) 597-8300.
15330 Fairfield Ranch Rd., Unit E, Chino Hills, CA 91709 (909)597-8300 Fax (909)597-5580 www.Bazzaz.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bazzaz QS4USB
Summary of Contents for Bazzaz QS4USB
-
Page 1: Parts List
Coil #4 Read through all instructions before beginning installation. If any problem is found, please carefully follow through the installation steps again. If problem still persists, please call Bazzaz tech support department at (909) 597-8300. 15330 Fairfield Ranch Rd., Unit E, Chino Hills, CA 91709 (909)597-8300 Fax (909)597-5580 www.Bazzaz.net... - Page 2 See your service manual for air box removal instructions. Once the air box has been removed route the Bazzaz harness through the engine compartment in front of the engine down to the control unit mounted in the bracket on the frame. Connect the harness to the control unit, and secure the harness using supplied cable ties.
- Page 3 Route the remaining harness inside of the left frame spar. With the air box removed, connect the Bazzaz harness inline with the corresponding coils for the front two cylinders. Once these connections have been made, secure the harness routing neatly with cable ties and reinstall the air box.
- Page 4 Cylinder 1 Photo 4 6. Locate the Gear Position Sensor connectors found between the left side frame spar and the left rear cylinder head. Connect the mating Bazzaz connectors inline with the sensor and stock harness connectors. (Photo 5) Bazzaz Gear...
- Page 5 (Photo 8) Notes: (1) The female end of Bazzaz shift switches are cross tapped to allow them to be mounted to either the rear set or shift shaft heim joint regardless of the thread design. (2) If the replacement rod supplied with your kit contains fe- male style ends, it is design to allow the user to shorten its length to suit various aftermarket reset configurations.
