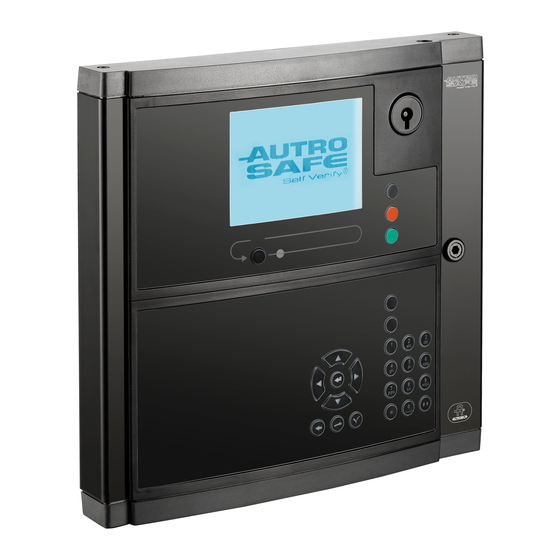

Autronica AutroSafe 4 Commissioning Handbook

Interactive fire detection system
Hide thumbs Also See for AutroSafe 4:
Table of Contents

Advertisement

Quick Links

Release 4
Commissioning Handbook
AutroSafe Interactive Fire Detection System
116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire And Security AS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutroSafe 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Autronica AutroSafe 4

Summary of Contents for Autronica AutroSafe 4

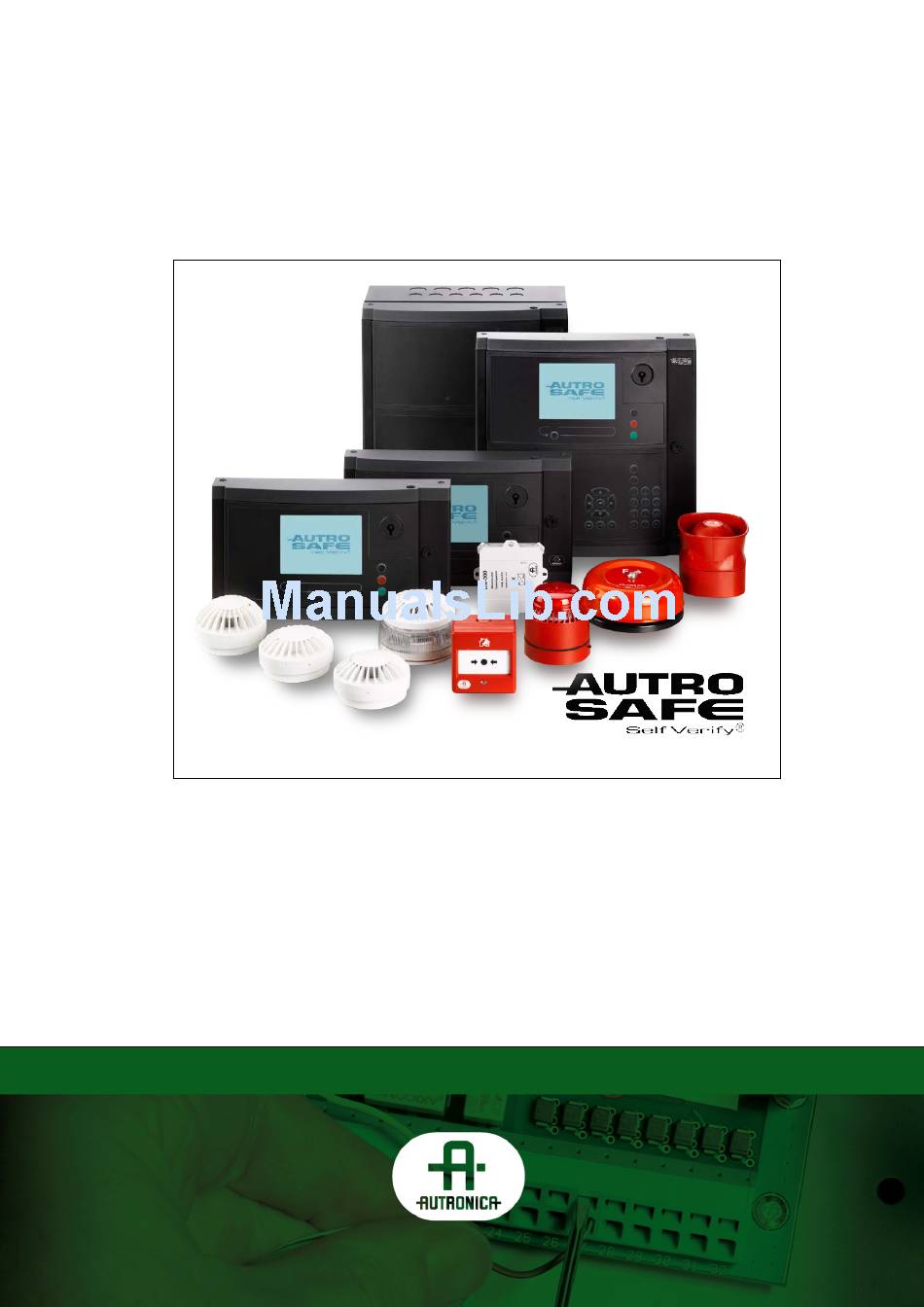

  • Page 1 Release 4 Commissioning Handbook AutroSafe Interactive Fire Detection System 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire And Security AS...
  • Page 2 This product should not be mixed with other commercial wastes for disposal. Commissioning Handbook, AutroSafe Interactive Fire Detection System, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security...

  • Page 3: Table Of Contents

    Introduction Table of Contents 1. Introduction ..............5 About the Handbook ................5 The Reader ..................5 Reference Documentation..............6 2. Quick Reference Guide ........... 7 Initial Commissioning ................ 7 Upgrading System Software and Configuration ........ 7 3. Verifying the Loops ............8 AS-2000 Loop Diagnostic Tool ............
  • Page 4 12.2 Invalid File on USB Stick ..............49 12.3 Data Transmission Timeout .............. 49 12.4 Corrupt File ..................49 12.5 Fail to Unpack Files ................50 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 4...

  • Page 5: Introduction

     Repeater Panel BU-BV-420  1.2 The Reader The handbook is intended to be used by Autronica Fire and Security trained service and technical personnel who are responsible for the installation of the AutroSafe Interactive Fire Detection System, Release 4.

  • Page 6: Reference Documentation

    Datasheet; Power Cabinet BP-405 116-P-BP405/CGB bp405_cgb Datasheet; Power Unit BPS-405 116-P-BPS405/CGB bps405_cgb Datasheet; Power Unit BPS-410 116-P-BPS410/CGB bps410_cgb Datasheet; AutroKeeper BN-180 116-P-BN180/CGB bn180_cgb Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 6...

  • Page 7: Quick Reference Guide

    Chapter 9 2.2 Upgrading System Software and Configuration For information regarding configuration upgrade and system software upgrade, refer to Chapter 10. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 7...

  • Page 8: Verifying The Loops

    (both positive and negative  wires) measure the loops’ total resistance, current consumption and  voltage drop earth fault  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 8...

  • Page 9: Consistency Check Of Configuration Data

    Loop Unit Index order on the loop (sequencially numbered). A branch-off is described by a decimal followed by a sequencial index. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 9...

  • Page 10: Importing Loop Data From The As-2000 Tool

    AutroSafe Configuration Tool. This tool allows you to generate configuration files, which then can be uploaded to target after the system has been verified. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 10...

  • Page 11: Power Commissioning

    5.1.2 Location of Switches The location of the dipswitch S5 and S6, plus the rotary switches X10 and X11 are shown on the drawing. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 11...
  • Page 12 Battery AFB pre F6 C2 Battery F2AL Dipswitch S6 F7 Battery BP-410/01 AH AH BP-405/01 Therm.+ AH AH Therm.- BATT Vcon Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 12...

  • Page 13: Autrofieldbus Addresses

    Switch address 01 Switch address 02 AutroFieldBus Switch address 03 Switch address 04 BSF-400 BSF-400 Switch Switch Address 02 Address 03 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 13...

  • Page 14: Power Board Configuration Switches

    S6-3 AutroFieldBus connected S6-4 S6-5 Battery ON: Battery connected OFF: Battery not connected S6-6 Power Unit Type ON: BPS-405 OFF: BPS-410 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 14...

  • Page 15: Calibration Procedure - Power Unit Bps-410

    Remove the resistor and reinsert the thermistor.  Insert the charger fuse F8 and re-connect mains power to the  power supply. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 15...

  • Page 16: Addressing Panels

    Number Series Hexadecimal values BS-420 1-31 01-1F BC-420 33-63 21–3F BC-440 33-63 21–3F BS-430 65-95 41-5F BU-420 97-159 61-9F BV-420 161-223 A1-DF Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 16...

  • Page 17: Location Of Switches

    The switches are located on the lower left hand side of the BSA-400 circuit board, easily accessible through the hole in the metal cover. The BSA-400 circuit board Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 17...

  • Page 18: Assigning Network Ids

    If there is a second network, this network can be set to 02, a third can be set to 03, etc. Switch X5 corresponds to the most significant digit in the address. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 18...

  • Page 19: Assigning Panel Ids

    41-5F BS-430 65-95 0 1 0 0 61-9F BU-420 97-159 1 1 0 0 A1-DF BV-420 161-223 1 0 1 0 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 19...
  • Page 20 Switch 1 2 3 4 BS-420 0 0 0 0 BS-420 0 0 0 0 BS-430 0 1 0 0 BU-BV-420 1 1 0 0 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 20...

  • Page 21: Verifying The System Before Startup

    Verify that all panels are assigned correct Panel IDs  Verfiy that all panels are assigned Network IDs  Check power for correct mains voltage  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 21...

  • Page 22: Startup Procedure

    Star Topology or Ring Topology. If both topologies are detected, the message: “Conflicting Network Structure” will appear, and it will not be possible to proceed. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 22...
  • Page 23 (Note that, to prepare the system for later reconfigurations or software upgrades, a hardware reset must be performed. Refer to Upgrading the System, chapter 10.) Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 23...

  • Page 24: Ip Number Structure

    Network ID. Note: Use automatic addressing mode if you are not absolutely sure how to set IP addresses. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 24...

  • Page 25: Automatic Addressing Mode

    When the automatic addressing is completed, you can either save the automatic addressing (proceed to next step), or set addresses manually (refer to chapter 8.3.2, Manual Addressing Mode). Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 25...
  • Page 26 3. Upgrade software 4. Upgrade config 6. Reboot panels When the IP addressing is completed, proceed to chapter 8.5, Uploading Configuration Files. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 26...

  • Page 27: Manual Addressing Mode

    Press 2 to save the manual addressing  When the manual IP addressing is completed, proceed to chapter 8.5, Uploading Configuration Files. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 27...

  • Page 28: Configuration Missing

    BS-420 01.01: 4.3.1 Commiss. Star BU-420 01.01: 4.3.1 Commiss. Star Config missing 1. Import config from USB stick 2. Reboot all panels Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 28...

  • Page 29: Configuration File

    When the configuration zip file is generated by means of the  AutroSafe Configuration Tool, copy the file to a USB memory stick (root catalogue). Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 29...

  • Page 30: Uploading Configuration Files To The System

    Insert USB stick in USB port Insert the USB memory stick into one of the USB host ports on the  BSA-400 Controller Board. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 30...
  • Page 31 4. Upgrade config 6. Reboot panels Remove the USB stick when the uploading is completed, then  press 6 to reboot the system. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 31...
  • Page 32 When the system is rebooted, the system will enter normal operation mode. To run initialization, press 1 or wait (countdown).  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 32...

  • Page 33: Configuration Mismatch

    BS-420 01.01: 4.3.1 Commiss. Star BU-420 01.01: 4.3.1 Commiss. Star Config model mismatch Verify Config 3. Upgrade software 4. Upgrade config 6. Reboot panels Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 33...

  • Page 34: Entering Required Access Levels

    3 ACCESS LEVEL 3 4 PRINTER 4 PRINTER 5 CHANGE LANGUAGE 5 CHANGE LANGUAGE 6 INITIALIZE 6 INITIALIZE 7 DAY/NIGHT TIMERS 7 DAY/NIGHT TIMERS Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 34...
  • Page 35 ACCESS LEVEL 3/ENTER ACCESS LEVEL 3 ACCESS LEVEL 3/ENTER ACCESS LEVEL 3 twice. Enter password: **** Enter password: **** Successfully Completed Successfully Completed Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 35...

  • Page 36: Verifying The System After An Upload

    Test all control functions. Activate alarms from at least one detector/manual call-point in each zone and a check that Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 36...

  • Page 37: Verifying Detection Loops During Normal Operation

    When the verification is completed, disconnect the tool/PC, re-  connect the cables, then re-place the fuses. Fuse A1 Reboot the system again.  and A2 Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 37...

  • Page 38: Upgrading The System

    Note that it is possible to upgrade both software and the  configuration in turn before rebooting, i.e. it is not necessary to reboot after each single upgrade. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 38...

  • Page 39: Upgrading Software During Normal Operation

    Software (see previous chapter). is completed. When the upgrade is completed, press 6 to run the Reboot System  command,. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 39...

  • Page 40: Upgrading When Panels Are Added/Removed

    Fast blink: upgrade failed is completed. Steady yellow light: Upgrade completed, remove stick to reboot the panel Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 40...

  • Page 41: Upgrading By Remote Access To A Web Site

    From the Service menu, press 6 to select Remote Access.  For further information, refer to separate handbook. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 41...

  • Page 42: Upgrading Software Version 4.0.1 To 4.1.1

    Wait until the blue LED indicator D22 (see illustration on next page)  goes off. The panel has now entered system fault condition. Go to chapter 10.7.3.  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 42...

  • Page 43: Preparing A System In System Fault Condition

    When the system is rebooted, the system will be upgraded (the new system software version) and the system will enter normal operation mode. Proceed with the upgrading procedure.  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 43...

  • Page 44: Upgrading Software Version 4.0.1 Or 4.1.1 To 4.3.1

    Connect the two system units to the original system AutroNet.  Restart the system and upgrade the new system configuration data  by using an USB stick. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 44...

  • Page 45: Example 4: Adding A Panel With Sw Version 4.3.1 To A System Running On Sw Version 4.1.1

    Connect the new panel to the system AutroNet.  Restart the system and upgrade the new system configuration data  by using an USB stick. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 45...

  • Page 46: Startup Procedure For A Dual Safety System

    Secondary System will be in Standby Mode (ready to take over control of the detection loops). Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 46...

  • Page 47: Guidelines - Startup Procedure

    Set dipswitch 1 in postion ON for the BN-180 that belongs to the  Secondary System Apply power to BN-180 (24V DV external power).  Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 47...
  • Page 48 Blinking light: the panel does not control all detection loops/loop units,  and/or loop control is being transferred. Actions must be taken. Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 48...

  • Page 49: Fault Messages During Uploading

    "Transfer to panel <NN> timed out" 12.4 Corrupt File File found, but it is corrupt (crc). Example: "Corrupt file AS_V4_0_0_1_C4_5.tar.bz2" Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 49...

  • Page 50: Fail To Unpack Files

    "Failed to unpack, file system error on panel <NN>" "Failed to unpack, panel error on panel <NN>" Commissioning Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-COMMISS/EGB Rev.F, 2014-04-01, Autronica Fire and Security AS Page 50...
  • Page 51 United Technologies Corporation (UTC) and employs more than 380 people with great skill and experience in the developing, manufacturing and marketing of fire safety equipment. Autronica Fire and Security AS is an international company based in Trondheim, a dynamic city known as the technological hotspot of Norway.
