Reassembly Of The Thermal Insulation - Danfoss ThermoDual-CM Quick Manual

Quick Guide

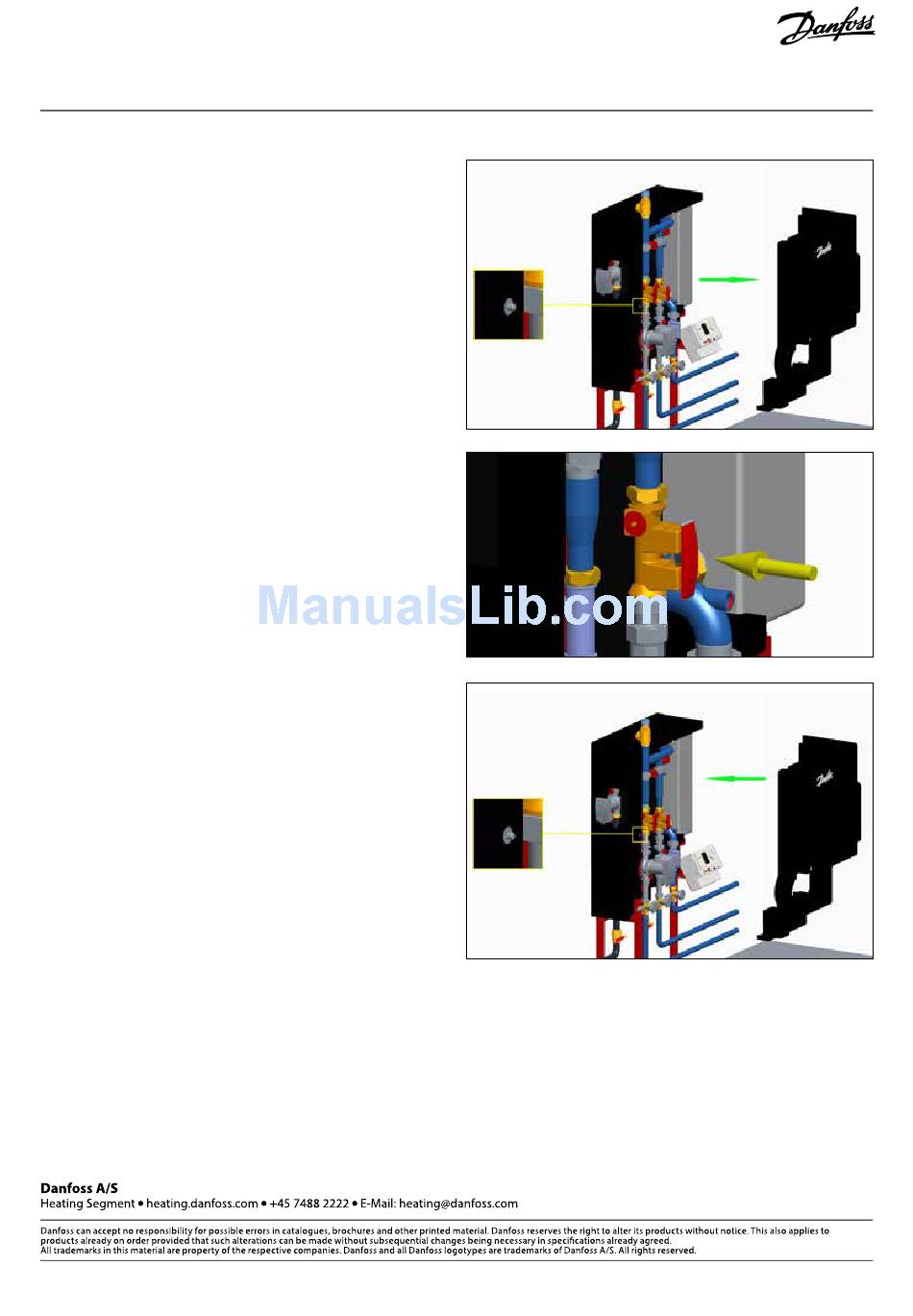

The front cover can be pulled out to the front. This is
connected with the rear via multiple connectors (tongue
and groove). Pull the cover as far forward horizontally as
possible to avoid damaging the connections.
The lower end part can then be easily pulled down
obliquely since it is held only by a groove between the
front and back parts. The left wall can also be pulled
It is now possible to carry out inspection and maintenance
work on the system, such as replacing defective
components, checking for leaks or re-tightening screw
You can also check and/or regulate the flow of circulation
on the balancing valve (Taco setter) as shown
The system can be drained after shutting off the 5 main
shut-off valves without removing the cover.
Further details can be found in the complete installation,
commissioning and operating instructions.

Reassembly of the thermal insulation:

The front insulation is installed in reverse order. Pay
particular attention to the correct positioning of the
connectors. Only when all tongue and groove connections
are correctly positioned should the front and back be
4
ThermoDual®-CM
forward horizontally.
connections.
in the picture on the right:
pressed together firmly.
