- Page 1 ATELLITE ATELLITE INDER INDER SK-3200 USER MANUAL...
-
Page 2: Table Of Contents
English CONTENTS 1. GUIDE ......................1 IMPORTANT SAFETY INSTRUCTIONS ........... 1 1.2 UNPACKING ....................1 1.3 PRODUCT OVERVIEW & ILLUSTRATION ..........2 2. OUTLINE ....................4 3. THE MENU OSD INSTRUCTION .............5 3.1 SAT SETTING ....................5 3.2 SIGNAL SCAN ....................6 3.3 TOOLS ......................7 3.4 SAT MANAGER .................... -
Page 3: Guide
English 1. GUIDE 1.1 IMPORTANT SAFETY INSTRUCTIONS Thank you for choosing our product. Before installation, we would like to remind you some notes, which is very important for operating safely and properly, as follows: • Be sure to read this user manual before starting your opera- tion. -
Page 4: Product Overview & Illustration

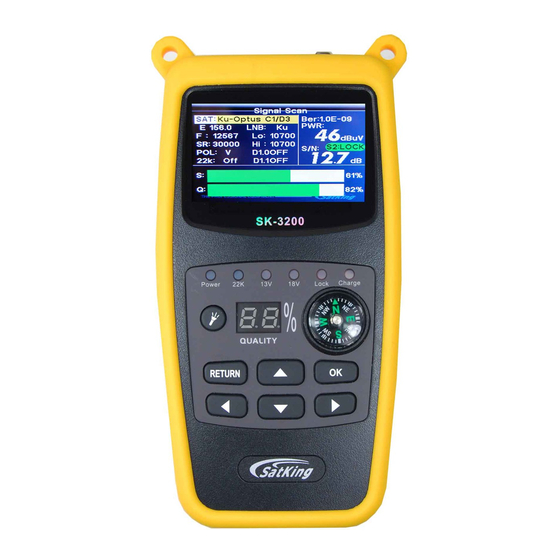

English 1.3 PRODUCT OVERVIEW & ILLUSTRATION Description Function RETURN RETURN KEY Right KEY DOWN KEY Left KEY Up KEY Torch Switch Compass Mechanical Compass Torch Torch Cover The battery cover Description Function Power Switch Turn on/off meter LNB IN Connect to satellite antenna cable LCD Screen Video display USB Port... -
Page 5: Outline
English 2. OUTLINE 3. THE MENU OSD INSTRUCTION • Digital meter for signal strength and quality If you have installed and connected the cables of the meter, • Sound and Light Alarm for Locking Signal open the power switch, into the main menu. •... -
Page 6: Signal Scan
English • Frequency: Frequency of the current transponder, input the then use YZ key to edit TP frequency. value by using the YZ keys. Move the cursor to SR, we can press , then use YZ key to • Symbrate: symbol rate of the current transponder, input the edit Symbol rate. -
Page 7: Tp Manager
English 3.5 TP MANAGER 4. TECHNICAL SPECIFICATION • Add Transponder TRANSMISSION STANDARDS • Edit Transponder DVB-S/S2 SATELLITE INPUT/DEMODULATION • Delete Transponder Connector Type F Type Input Frequency 950 to 2150 MHz Please refer to Satellite Setup. Signal Input Level -65 to -25 dBm 3.6 SYSTEM SETUP Band Switch Control 22KHz... - Page 9 ATELLITE INDER...
