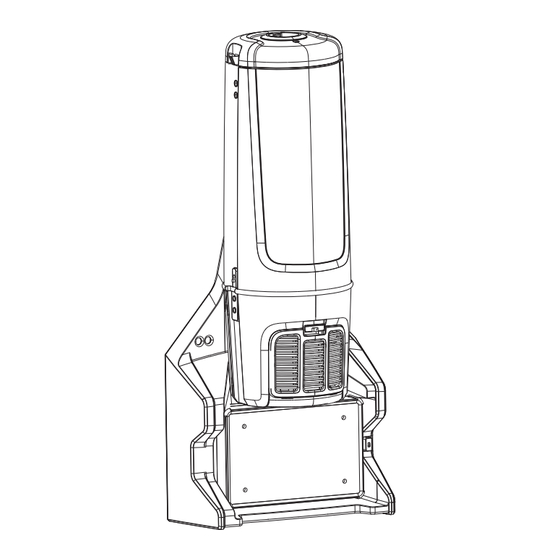

GD 5 Battery
Instructions for use
107415214 C (03. 2018)

Advertisement

loading
Need help?

Need help?

Do you have a question about the GD 5 Battery and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nilfisk-Advance GD 5 Battery

Summary of Contents for Nilfisk-Advance GD 5 Battery

  • Page 1 GD 5 Battery Instructions for use 107415214 C (03. 2018)
  • Page 2 Hose connection Adjustment of strap position on support plate Adjustment of tension ties on the strap’s support plate Adjusting the vacuum cleaner to sit comfortably...
  • Page 3 Battery module change Click  On/Off: Quick press Dust bag Boost/Eco: Long press...
  • Page 4 Bag filter HEPA filter Pre filter to be replaced by use of every 5-10 dust bags Exhaust filter to be replaced once/twice per year...
  • Page 5 Connection of bent end and Extension tube handle grip Round brush nozzle Combi nozzle Crevice nozzle...

  • Page 6: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS Symbols used to mark instructions DANGER Danger that leads directly to serious or irreversible injuries, or even death. WARNING Danger that can lead to serious injuries or even death. CAUTION Danger that can lead to minor injuries and damage. Before starting up your machine for the first time, this instruction manual must be read through carefully.
  • Page 7 • This machine is not intended for use by persons (including chil- dren) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given super- vision or instruction concerning use of the machine by a person re- sponsible for the safety.

  • Page 8: Battery And Charger

    ence of toxic-harmful materials (batteries, etc.), which are subject to standards that require disposal in special centres (see Scrapping chapter). • Before performing any maintenance, repair, cleaning or replace- ment procedure disconnect the battery. • This machine must be used by properly trained operators only. •...
  • Page 9 • Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the in- structions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
  • Page 10 Approved batteri and chargers Battery pack: 10S4P-UR18650RX. Chargers: FW8060/48, BC500. Maintenance All necessary operating, maintenance and repair procedures must be performed by qualified person- nel or by Nilfisk Service Centers. Only original spare parts and accessories must be used. Contact Nilfisk for service or to order spare parts and accessories, specifying the machine model, product code and serial number.

  • Page 11: Specifications

    Specifications GD 5 Battery 36V eco/boost Voltage Rated power Power consumption 190/465 Battery capacity / Wh 7,8/280,8 Battery type Lithium Ion Run time 60/30 Protection grade (moist., dust) ll/IP 20 Protection class (electrical) Airflow with hose and tube litres/sec 21.7/26.7...
  • Page 12 HEAD QUARTER GERMANY PERU TURKEY Nilfi sk GmbH Nilfi sk S.A.C. Nilfi sk A.S. DENMARK Guido-Oberdorfer-Straße 2-10 Calle Boulevard 162, Of. 703, Lima 33- Serifali Mh. Bayraktar Bulv. Sehit Sk. No:7 Nilfi sk A/S 89287 Bellenberg Perú Ümraniye, 34775 Istanbul Kornmarksvej 1 Tel.: (+49) (0)7306/72-444 Lima...
