ThermoWorks 7000 Operating Instructions

Model Order Code
7000 Moisture Meter 224-070
7250 Moisture Meter 224-075
SPECIFICATIONS
Range Scale 1 - Wood (W1) 6.0 to 40.0%
Range Scale 2 - Wood (W2) 8.0 to 40.0%
Range Scale 3 - Plaster (P1) 0.1 to 15.0%
Range Scale 4 - Concrete (C1) 0.5 to 12.0%
Range Scale 5 - Linear/Reference (Lin) 0 to 1000
Resolution 0.1% or 1 (Linear Scale)
Accuracy ±1% moisture content
Battery 3 x 1.5 volt AAA, 350 hours
Display 1 H x 1.5 W inches
(24 H x 38 W mm) LCD
Dimensions 5 H x 2.2 W x 1 D inches
(128 H x 56 W x 25 D mm)
Weight 4.6 oz. (130 g)
1762 W. 20 S. #100, Lindon, UT 84042
Ph: 801-756-7705 Fax: 801-756-8948
www.thermoworks.com
P-14-010-02-a Ref: 547-071 / 28.4.14

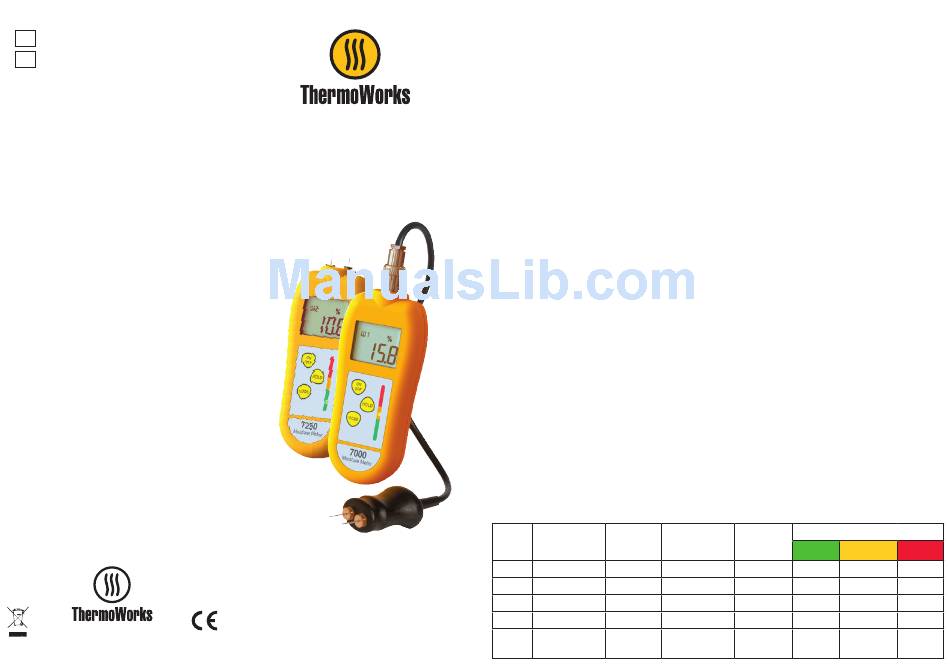

7000 / 7250
Moisture Meters

Operating Instructions

INSTRUMENT OPERATION

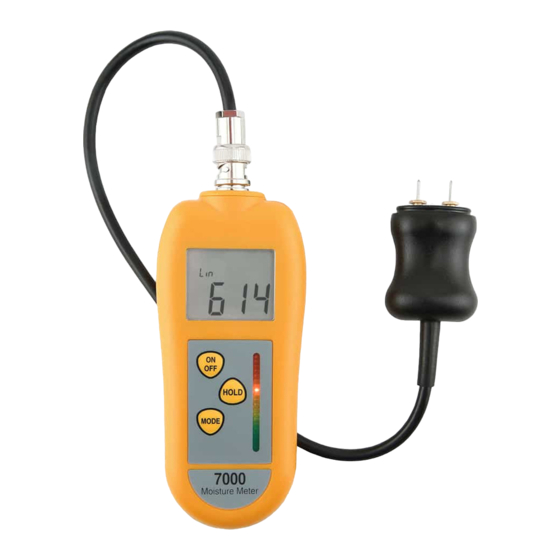

7000 Moisture Meter - Connect a probe
via the BNC socket located at the top of the
instrument and switch the instrument on.
7250 Moisture Meter - Remove the black
protective cap on the top of the instrument,
taking care of the moisture meter pins.
Press the pins on the moisture meter or
probe firmly to the surface to be measured.
A moisture reading will then be displayed
on the screen and the LED's within the
keypad will illuminate to indicate the moisture
measurement. The LED displays three colors
green - OK, amber - WARNING and red -
DAMP .
MODE - The instrument incorporates five
different measurement scales. Press the MODE
button to cycle through the different scales
of measurement which are listed in the table
below.
Linear/Reference is a general scale of moisture
measurement used for all materials and is listed
to cover materials which are not covered by
the scales 1 - 4. This scale can also be used to
compare the material under test to a known dry
sample.
Readings above the fibre saturation point of the
material are only approximations. The saturation
point for different species of wood is typically in
the range of 25 to 30%.
Display
Scale Mode
Icon
1 Wood 1 W1
2 Wood 2 W2
3 Plaster P1
4 Concrete C1
Linear /
5 Lin
Reference
HOLD - Press the HOLD button to freeze the
display, 'HOLD' is displayed on the screen.
Press again to continue measuring.
AUTO-OFF - The instrument will switch off
automatically after 10 minutes. To disable the
auto-off function, press and hold the HOLD
button while switching on the unit - 'auto-off
disabled' will then scroll across the screen to
confirm this.
Please note: when the unit is turned off the
auto-off function will be re-enabled.
BATTERY REPLACEMENT - Replace the
battery when the battery icon is displayed. The
meter will continue to measure accurately, but
after further usage the meter will display 'flat
bat' and 'shutdown'.
Unscrew the screw on the back of the meter
and replace with three AAA batteries, ensuring
the polarity is correct.
LED Display
Range Resolution
GREEN
6.0 to 40.0% 0.1 <14% 14 to 20%
8.0 to 40.0% 0.1 <14% 14 to 20%
0.1 to 15.0% 0.1 <1%
0.5 to 12.0% 0.1 <2.5 2.5 to 4%
0 to 1000 1 <375 375 to 575
AMBER RED
>20%
>20%
1 to 3% >3%
>4%
>575
