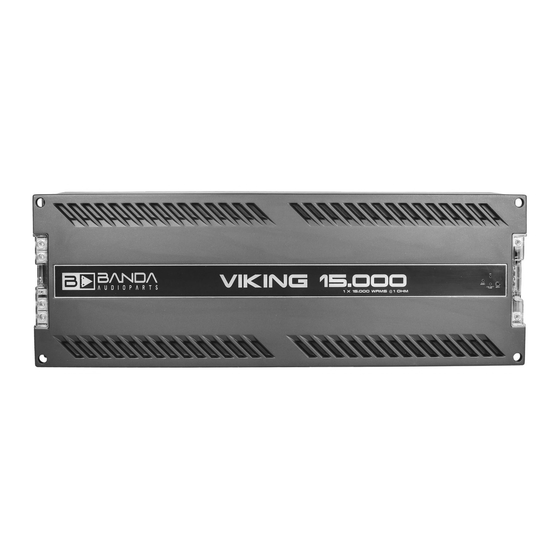

Banda Audioparts VIKING 15.000 User Manual

INDEX
02 .......... Technical Specification
03 .......... Technical Specification, front Panel and active filter
04 .......... Power Supply, Signal Input and Power Output Sections
04 .......... Clip Indicator
04 .......... Subsonic and Crossover Controls
05 ..........Connetion Example
06 ..........Connection Example
07 .......... Protection System And Troubleshooting
08 .......... Warranty
TECHNICAL SPECIFICATION
• Operation topology: Class D
• 12db/octave variable active Linkwitz-Riley crossover: 13Hz - 2kHz
• Frequency response: 13Hz - 2kHz (filter ON)
• Frequency response: 13Hz - 3kHz (filter OFF)
• Variable subsonic filter: 13Hz - 120Hz (filter ON)
• Fuse: MIDIVAL 125A (x 6) + 60A (x 1)
• Clip indicator
• THD < 0.5%
• SNR > 82dB
• Damping factor > 10
• Input sensitivity: 160mVRMS – 6VRMS
• Differential input signal impedance: 17kOhms
• Cooling fans
• Idle Current: 5.3A
• Dimensions: 29.6"L x 2.5"H x 10.1"W
• Weight: 29.8lb
These values are typical and may present some minor variation.
TECHNICAL SPECIFICATION
Output:
1 channel 15.000Wrms 1ohm - 12.6Vdc
1 channel 9.800Wrms 2ohms - 12.6Vdc
1 channel 19.000Wrms 1ohm - 14.4Vdc
Current draw at full power(average music program): 630A*
*Equivalant to current draw with resistive load and sinusoidal signal at half power.
Front panel view
1. Blue LED: • On
2. Red LED: • Blinking - Output distorted (Clip) / Constant - Output short circuit
3. Yellow LED: Fblinking - Low voltage battery / Constant - Fuse blown or missing) •
4. Gain Control
Linkwitz-Riley filter activeted by switch
Switch ON: Filter enable (Linkwitz-Riley 12dB/8ª)
Switch OFF: Filter desable
OBS.: To access the filter switch remove the plastic cover under the amplifier.
The factory default filter position is ON.
1 2 3 4
ON OFF
