Summary of Contents for Banda Audioparts VIKING 15.000

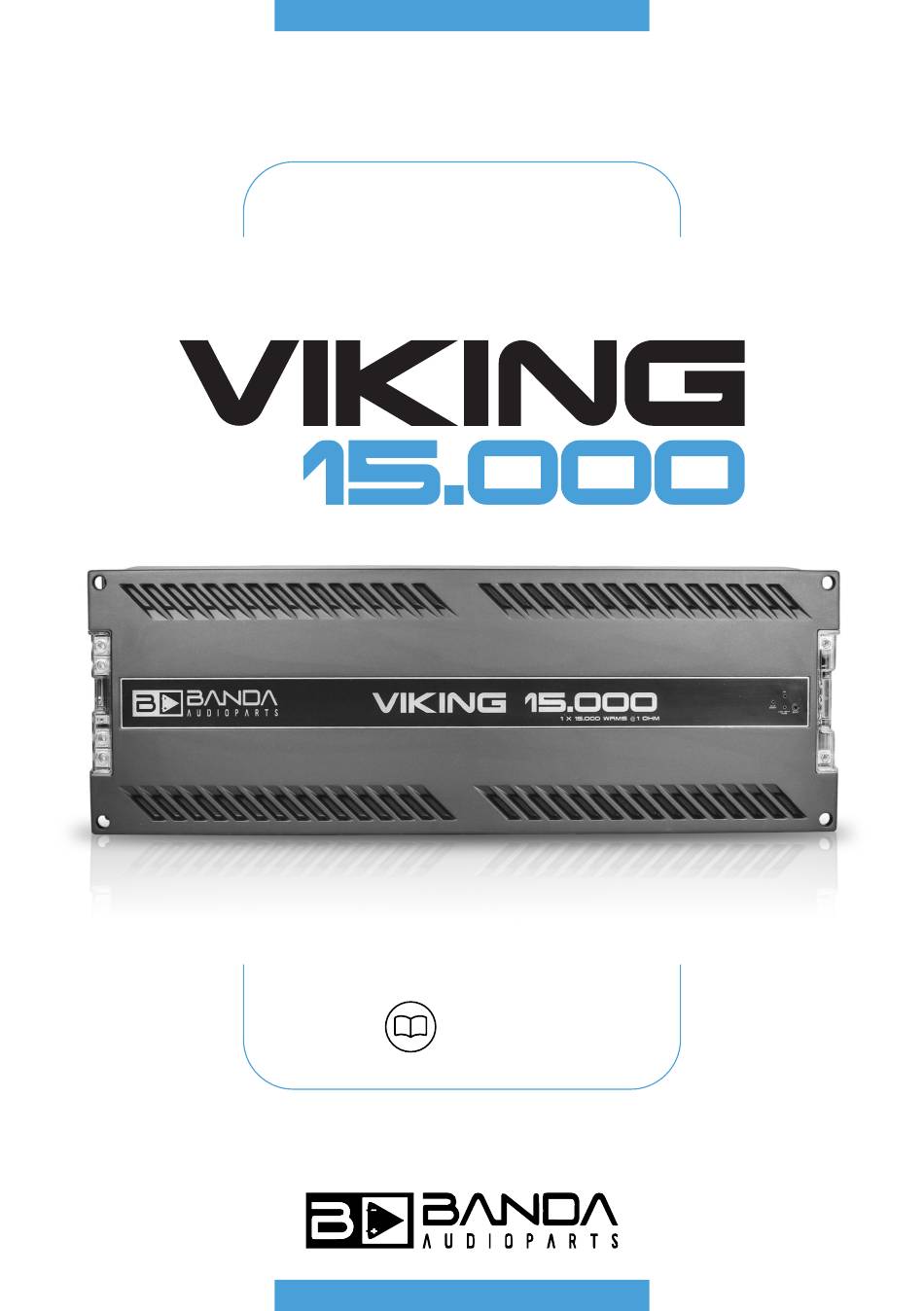

- Page 1 INSTRUCTION MANUAL Read before using...
- Page 2 TABLE OF CONTENTS Introduction Description Technical Specifications Protection System and Troubleshooting /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
- Page 3 INTRODUCTION Congratulations! You have just purchased a product with Banda Audioparts quality. Developed by qualified engineers and in a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference.
-
Page 4: Front Panel View
DESCRIPTION FRONT PANEL VIEW Blue LED: On Red LED: Blinking – Output distorted (Clip) / Constant - Output short circuit Yellow LED: Blinking – Low voltage battery / Constant – Fuse blown or missing Gain Control Switch ON: Filter enable (Linkwitz-Riley 12dB/8ª) LINKWITZ-RILEY FILTER ACTIVETED Switch OFF: Filter desable BY SWITCH... -
Page 5: Clip Indicator
In this case, turn down the head unit volume. CONNECTION EXAMPLES VIKING 15.000 - 1 ohm VIKING 15.000 - 1 ohm 2 Woofers or Subwoofers... - Page 6 DESCRIPTION CONNECTION EXAMPLES VIKING 15.000 - 1 ohm 8 Woofers or Subwoofers 8 ohms 1875Wrms each connected in parallel, resulting 15.000Wrms @ 1 ohm NOTE: These are basic projects, just given as examples.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL VIKING 15.000 - 1 ohm 12,6Vdc 1ohm - 15.000Wrms 12,6Vdc 2ohms - 9.800Wrms 14,4Vdc 2ohms - 19.000Wrms Operation topology Class D 12dB/octave variable active Linkwitz-Riley crossover 13Hz – 2kHz Frequency response 13Hz – 2kHz (filter ON) Frequency response 13Hz –... -
Page 8: Troubleshooting
PROTECTION SYSTEM AND TROUBLESHOOTING SHORT CIRCUIT PROTECTION If short circuit is detected in output terminals, the amplifier shuts down and the red LED lights up. The equipment must be turned off, solve the short circuit problem and turn the equipment on again. If the problem is solved, the blue LED must light up. -
Page 9: Output Noise
TROUBLESHOOTING OUTPUT NOISE Check if there is loose connection in signal input or in the RCA cable Check if there is ground connection in the radio/cd RCA output Check if RCA cables are wired separated from the power cables Check if the +12Vds that powers the amplifier is coming directly from the battery Check if ground cable is connected in car chassis as near as possible of the amplifier Both radio/cd and amplifier must be firmly connected to car chassis ground to avoid noises and voltage fluctuations at amplifier output... -
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Banda Audioparts dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Bandaaudioparts /banda_audioparts @BandaAudiopartsOficial Visit www.bandaaudioparts.com...
