STEP 3
Attach Shelf Panel(A)& Long Pole(1)to
the assembled unit, as shown.
A
A
Recommended Maximum Weight
15
15
15
15
15
15
*Unit in Pound(lbs)
STEP 4
Attach another Shelf Panel(A)and tighten
with Top Cap(3), as shown.
(2)x6pcs
A
A
A
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 20 minutes
Approx. 15 minutes
Approx. 10 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
No Tools Required
Tool Required
Tool Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

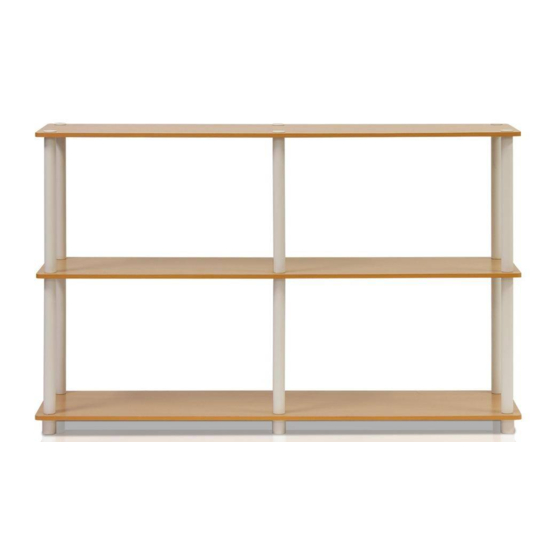

Furinno Turn-N-Tube 3-Tier Double Size
Storage Display Rack
99130
MODEL
:
DIMENSION :
47.2"(W) x 29.5"(H) x 11.6"(D)
9913020140520
