STEP 5
Attach Left/ Right Door (J&K) on Lower Shelf
Panel (M) & Bottom Panel (N), as shown.
M
K
N
Recommended Maximum Weight
10
10
10
*Unit in Pound(lbs)
STEP 6
Attach L-Support (7) to assembled unit using
Screw (7). Cover Screw Head with Stickers (8).
H
x 4pcs
7
H
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
Approx. 30 minutes
Recomm. 2 Person
Tool Required
Customer Support
NEED HELP? For help with assembly, or if you are missing a
part, please call Furinno Customer Service, 1-773-299-8111
from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com
www.furinno.com
Assembly Instruction

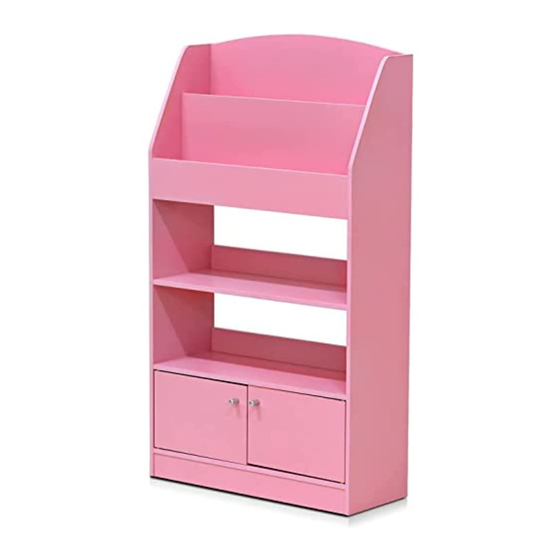

Furinno Magazine/Bookshelf with Toy
Storage Cabinet
FR16119
MODEL
:
FR1611920170629
