- Page 1 65-2302/65-2303 CT-7 Series Toxic Detector Operator’s Manual Part Number: 71-0422 Revision: 0 Released: 6/26/18 www.rkiinstruments.com...
- Page 2 Typical calibration frequencies for most applications are between 3 and 6 months, but can be required more often or less often based on your usage. 65-2302/65-2303 Toxic Detector...
- Page 3 Product Warranty RKI Instruments, Inc. warrants gas alarm equipment sold by us to be free from defects in materials, workmanship, and performance for a period of one year from date of shipment from RKI Instruments, Inc. Any parts found defective within that period will be repaired or replaced, at our option, free of charge.
-
Page 4: Table Of Contents
65-2302 Toxic Detector ........ -
Page 5: Overview
The 65-2303 toxic detector includes the 65-2302 toxic detector and a junction box. The 65-2302 toxic detector does not include a junction box and is normally mounted in one of a controller’s conduit hubs. If you are using a 65-2302 toxic detector, disregard all references to the junction box and junction box terminal strip. -
Page 6: Description

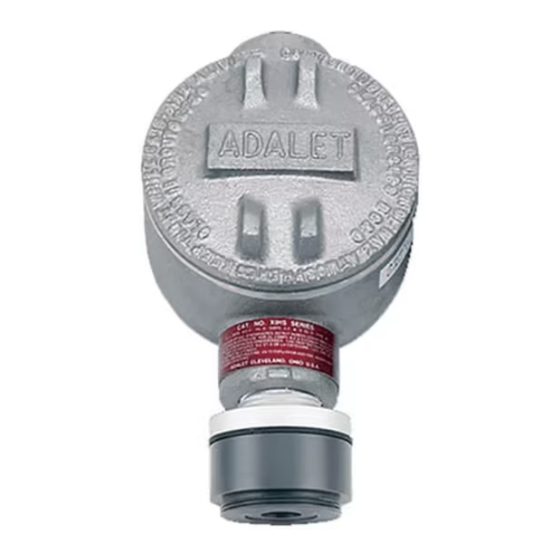

Description This section describes the components of the 65-2302 and 65-2303. The 65-2303 includes the 65-2302 toxic detector and a junction box. The 65-2302 does not include a junction box. Figure 1 below shows the components of the 65-2303. 3/4 NPT Conduit Hub... -
Page 7: Junction Box
Mounting the Toxic Detector NOTE: If you are installing a 65-2302, it does not include a junction box and is usually factory installed in one of a controller’s conduit hubs or may be field installed using the 3/4”... -
Page 8: Wiring The Toxic Detector To A Controller
Calibration Cup 65-2302 65-2303 Figure 3: Outline & Mounting Dimensions, 65-2302 & 65-2303 At the mounting site you select, hang or mount the junction box with the detector facing down (see Figure 3). CAUTION: Mount the toxic detector with the detector facing down (see Figure 3.) - Page 9 10. If using shielded cable, connect the cable’s drain wire to an available chassis ground at the controller. RKI controllers typically have a ground stud that is a convenient grounding location. 11. Reinstall the junction box cover. 65-2302/65-2303 Toxic Detector • 5...
-
Page 10: Startup
Allow the gas to flow for two minutes. g. Set the fresh air reading according to the controller operator’s manual. h. Turn the regulator’s on/off knob clockwise to close it. i. Unscrew the regulator from the calibration cylinder. 6 • 65-2302/65-2303 Toxic Detector... -
Page 11: Maintenance
Use the sample tubing to connect the regulator to the calibration cup. Performing the response test Turn the regulator’s on/off knob counterclockwise to open the regulator (or start the flow of gas from a generator). Gas will begin to flow. 65-2302/65-2303 Toxic Detector • 7... -
Page 12: Troubleshooting
Slow or No Response/Difficult or Unable to Calibrate Symptoms • The detector responds slowly or does not respond during the monthly response test. • Unable to accurately set the zero or response reading during the calibration 8 • 65-2302/65-2303 Toxic Detector... -
Page 13: Replacing Components Of The Toxic Detector
VersaporR Membrane” on page 10. If the calibration/response difficulties continue, replace the plug-in sensor as described later in this section. If the calibration/response difficulties continue, contact RKI Instruments, Inc. for further instruction. Replacing Components of the Toxic Detector This section includes a procedure to replace the plug-in toxic sensor, the VersaporR membrane, and the entire toxic detector assembly. - Page 14 Peel off the VersaporR membrane. It may be necessary to clean off the sensor face to remove any residue left from the adhesive backed membrane. Install the new membrane on the face of the plug-in sensor. Plug the sensor back into the four-socket pattern in the detector housing body. 10 • 65-2302/65-2303 Toxic Detector...
- Page 15 See Figure 4 on page 5 for wiring to a generic controller. See the controller operator’s manual and the controller’s detector head specification sheet for the 65-2302 or 65-2303 detector for wiring specific to your controller.
-
Page 16: Calibration Frequency
RKI Instruments, Inc. recommends using a 0.5 LPM (liters per minute) fixed flow regulator. WARNING: RKI Instruments, Inc. recommends that you dedicate a regulator for use with chlorine (Cl... -
Page 17: Setting The Zero (Fresh Air) Reading
Unscrew the calibration cup from the detector. Make sure that you do not loosen the detector housing cap when you unscrew the calibration cup. NOTE: For convenience, leave the regulator and calibration cup connected by the sample tubing. 65-2302/65-2303 Toxic Detector • 13... -
Page 18: Returning To Normal Operation
(includes plug-in sensor) 65-2302-CLO2 Replacement detector assembly, ClO , 0 - 1.00 ppm range (includes plug-in sensor) 71-0422 65-2302/65-2303 Operator’s Manual (this document) 81-0076RK Zero air calibration cylinder, 17 liter steel 81-0076RK-01 Zero air calibration cylinder, 34 liter steel 81-0076RK-03... - Page 19 Calibration kit, includes regulator, calibration cup, tubing, and 58 liter aluminum calibration cylinder of 2 ppm Cl in nitrogen 81-F605-LV Calibration kit, includes regulator, calibration cup, tubing, and 34 liter aluminum calibration cylinder of 2 ppm Cl in nitrogen 65-2302/65-2303 Toxic Detector • 15...
