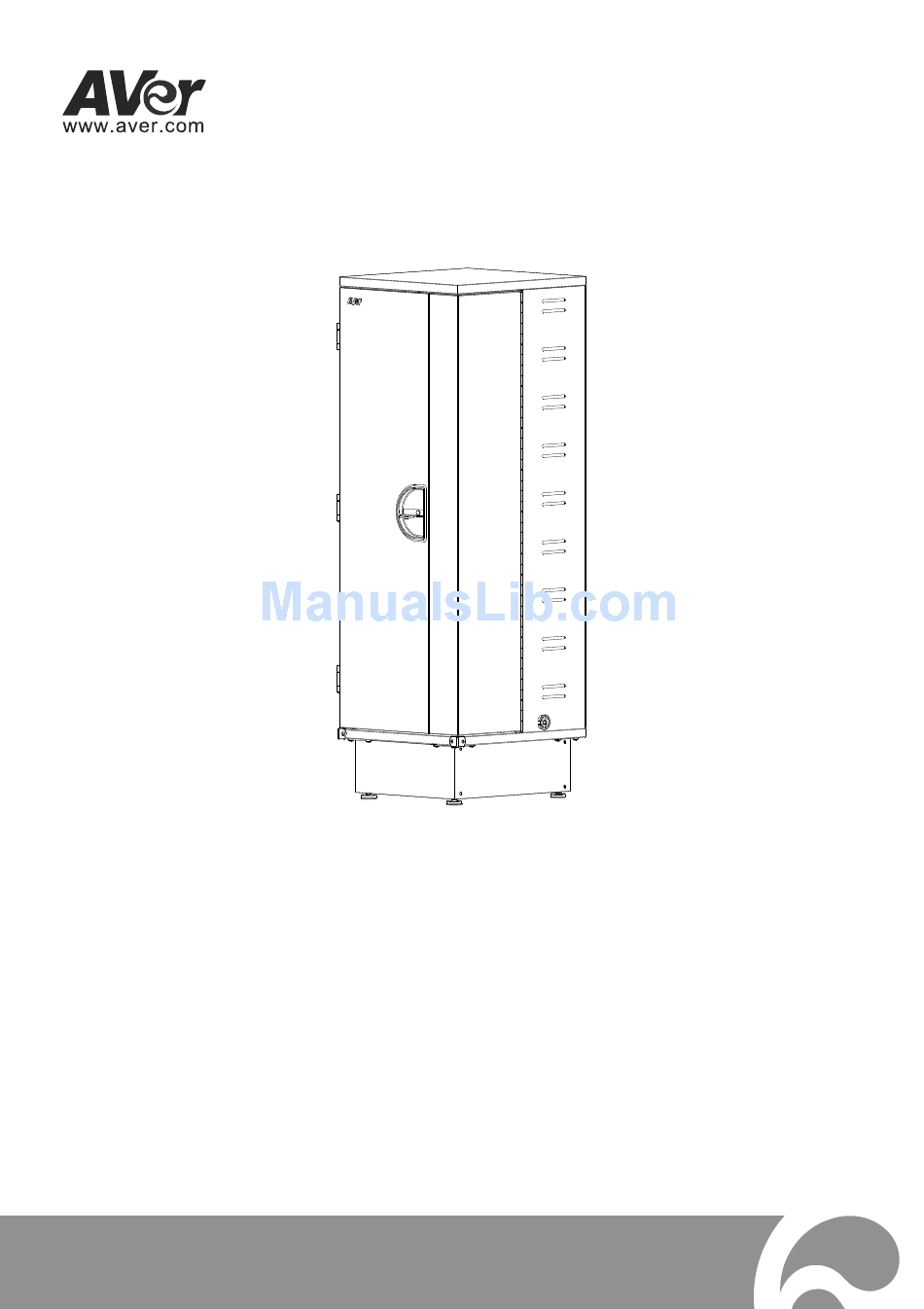

- Page 1 T18 Tower Installation Guide ...
- Page 2 While moving T18 tower, make sure right and left door are closed. DO NOT allow anyone to sit, stand, or climb on the T18 tower. DO NOT lift T18 unit alone. It is strongly advised to have 2 people transport the T18 tower .
- Page 3 Federal Communications Commission NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 The information contained in this documentation is subject to change without notice. In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
-
Page 5: Table Of Contents
Contents PACKAGE CONTENTS ......................1 ASSEMBLY TOOLS REQUIRED ................... 1 INSTALLATION ........................2 SPECIFICATIONS ........................ 10 TROUBLESHOOTING ......................11 SERVICE AND WARRANTY ....................11... -
Page 6: Package Contents
User manual Concrete anchor x 8 Wall mount guide Anchor screw x 8 Washer x 8 Screw x 3 (Assembled on tower already) Screwdriver T18 tower Cable clip x 36 Cable grommet (Assembled on tower already) Assembly Tools Required Drill... -
Page 7: Installation
Installation 1. Please mount the T18 tower on the wall before installing device into the T18 tower. Please refer to instruction on the “Wall mount guide” to mount the T18. 2. After mounting the T18 tower, unlock the door lock and open the left door. - Page 8 3. Next, remove the 3 screws on the right door with a screwdriver to open the door.
- Page 9 4. Place device power adapters into adapter holders like shown. Each adapter holder can place 2 adapters. 5. Pass the DC-end of the power cable to the front through the holes as shown below. DC-end cable...
- Page 10 6. Use cable clip to fix the power cable to the T18 tower. Cable clips can be fixed onto either the right or left side of the tower depending on device orientation / user preference. Remember to reserve enough length of power cable for connecting to the power plug of the device.
- Page 11 7. After fixing the cable clip, route power cable through the cable hook to prevent the power cable falling. 8. Connect the power cable of device to the device. ...
- Page 12 9. (Optional) Organize the remaining power cable by pulling power cables back to adapter holder side and place it to adapter holder. Cables can be bundled together using cable tie or zip-tie. [Note] Cable ties and zip ties are not included in the package. 10.
- Page 13 ~50/60Hz (or 8A under 220-240V ~50/60Hz). European regulation power cord installation: (UK and EU Markets only) Plug the power cord of T18 tower Use retainer clip to fix the power cord into the power strip. while the tower is moving.
- Page 14 Power breaker button 12. After installing all devices and cables onto the T18 tower , close right door (Please close the power adapter compartment, secure right door with the 3 right door screws). Then, close the left door to close the tower. Use a padlock (not included) to lock the tower.
-
Page 15: Specifications
Specifications Model T18 Tower Capacity Charging Type Simultaneous AC charging Support Device Mobile devices up to 16" * Shelves Door Hinge Left door: 265º; Right door: 180º Left door: 3 points mechanism with padlock Security Right door: up, middle and down screws locking... -
Page 16: Troubleshooting
3. Make sure the power plug and current consumption are compliant with electrical specification standards. Q: My T18 tower main power cord or T18 tower components are damaged. Are they covered under warranty? A: Contact AVer customer support. Provided the damage case is covered under the warranty, AVer provides 10 year warranty on tower/tray, and 5 years on electrical components.
