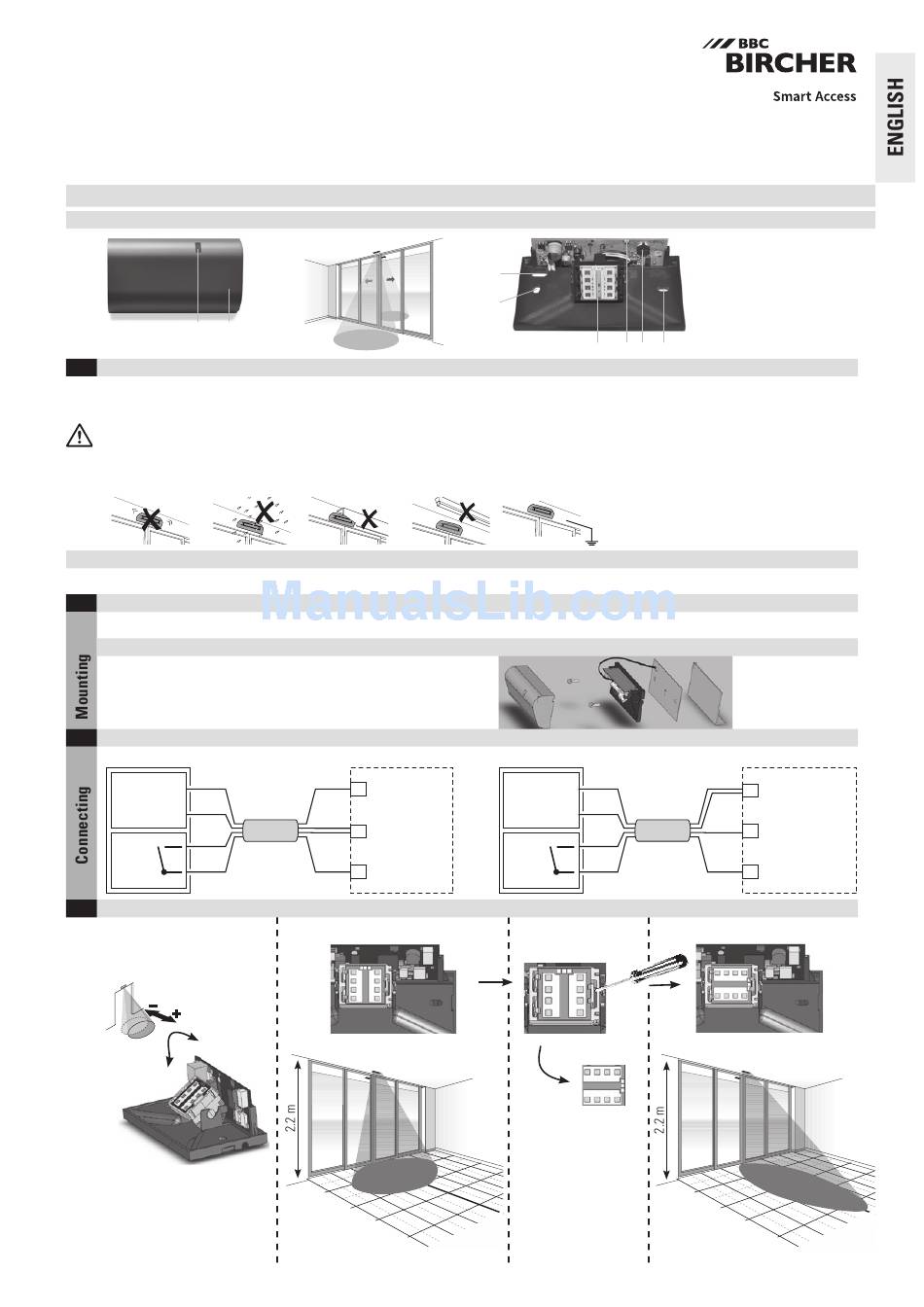

BBC Bircher PrimeMotion C MINI Original Instructions

PrimeMotion
Original instructions
General
b a
PrimeMotion C MINI
1 Safety instructions
Observe the national and international regulations on door safety.
Only trained, qualified personnel may mount and start up the detector.
The unit may only be opened and repaired by the manufacturer.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom profile must be earthed correctly.
Start-up
Recommended start-up sequence:
2 Montage
1. Remove cover hood
I
Mounting of the detector
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
Electrical connections
3
PrimeMotion C MINI
II
white
Power
Supply
brown
green
Potential-
free
yellow
output
Low Active
4 Mechanical fine tuning
Manual settings of the
inclination
0° ... +45° in 5° steps
–
+
+
–
C MINI
Radar field
Radarfield
I. Mounting II. Connection
2. Lay and connect cable
Controller
brown
+ 12–36 VDC
12–28 VAC
3 m
white
Cable
GND
green
yellow
Controller input
Wide radar field
1m
2m
3m
Inclination angle: 35°
0m
1m
2m
3m
2m
4m
min. = 1.6 x 0.8 m
max. = 4.8 x 2.3 m (WxD)
Microwave motion detector for opening



3. Mount detector
PrimeMotion C MINI
white
Power
Supply
brown
green
Potential-
free
yellow
output
turn 90°
a
b
90°
0m
1m
automatically controlled doors
a Hood
b Light window detector indication
 Cable bushing
 Mounting
 Microwave module
 LED microwave: green
 Potentiometer
  
brown
12–36 VDC
+
12–28 VAC
yellow
3 m
white
Cable
GND
green
Controller input
High Active
Narrow radar field
1m
2m
3m
Inclination angle: 35°
0m
1m
2m
3m
4m
min. = 0.8 x 1.6 m
max. = 2.3 x 4.8 m (WxD)
329529B
02/18
Controller
0m
1m
2m
