- Page 1 PLEASE READ This user manual is from the manufacturer — Jive Communications may not support some features discussed in this document. Please see our online documentation or contact us for a complete list of supported features. Thanks for choosing Jive!
-

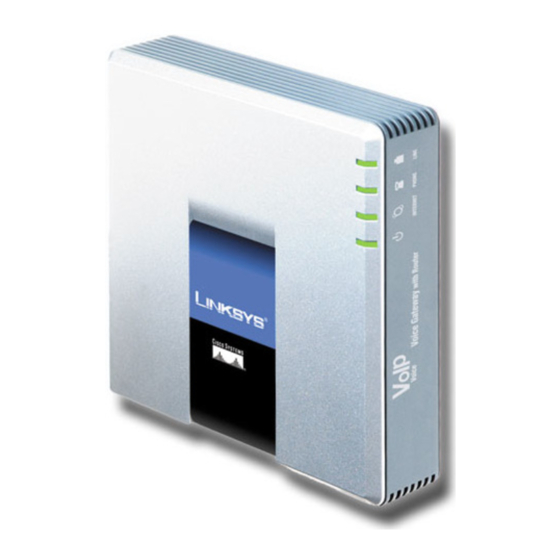

Page 2: Configuration Guide
Minimum Requirements • Active Freshtel Internet Phone account o http://www.freshtel.net • Broadband Internet Connection o 256/64 kbps minimum • Broadband Modem/Router o Must have an Ethernet port to connect to the Linksys. • Analogue Telephone with RJ-11 line (Desktop or Cordless) -
Page 3: Before You Begin
If you are using the Freshtel Internet Softphone on your PC with the same Freshtel number that you wish to use in your Linksys, we advise you to uninstall or disable the Freshtel softphone. Your Freshtel account can only be active at one point on our network at any one time, and having two identical active accounts will cause conflicts. - Page 4 Next, click the ADVANCED link next to it. If you have a Linksys ATA with a built-in router, such as the SPA-3102, you will then need to click the VOICE tab at the top of the page.
- Page 5 SIP Set-up Figure 1.2 Figure 1.3 Note: All other settings should be left as default. 1. Click on the LINE 1 tab 2. Enter the following: a. LINE ENABLE: b. SIP PORT: 5060 c. PROXY: sip.freshtel.net d. MAKE CALL WITHOUT REG: e.
- Page 6 DIAL PLAN Set-up Figure 1.4 1. Click on the LINE 1 tab 2. Enter the following: DIAL PLAN: Dial Plan (Australia only -- user has no local call prefix set) (*123|*xxxxxxxx|<000:61000>S0|<112:61112>S0|<106:61106>S0|61000S0|61112S0|61106S0| 0[2378][2-9]xxxxxxx|0[4569]xxxxxxxx|611300xxxxxx|611800xxxxxx|6113xxxx|6118xxxx|[1-9]x.) Dial Plan (Australia only -- user has local call prefix set) (*123|*xxxxxxxx|000S0<:@gw0>|112S0<:@gw0>|106S0<:@gw0>|001[0- 9]x.|0[4569]xxxxxxxx|0[2378][2-9]xxxxxxx|[2- 9]xxxxxxx|1300xxxxxx|1800xxxxxx|13xxxx|18xxxx|1[4-79]x.)
- Page 7 STUN Set-up Figure 1.5 1. Click on the SIP tab 2. Enter the following: a. Handle VIA Received: b. Insert VIA Received: c. Handle VIA rport: d. Insert VIA rport: e. STUN ENABLE: 3. Click on SUBMIT ALL CHANGES...
- Page 8 Call Progress Tones Figure 1.6 1. Click on the REGIONAL tab Enter the following: Dial tone: 400@-19,425@-19,450@-19;10(*/0/1+2+3) Busy Tone: 425@-19;10(.375/.375/1) Reorder Tone: 425@-19,425@-29;60(.375/.375/1,.375/.375/2) Ringback Tone: 400@-19,425@-19,450@19;*(.4/.2/1+2+3,.4/2/1+2+3) MWI Dial Tone: 400@-19,425@-19,450@19;2(.1/.1/1+2);10(*/0/1+2) Ring1 Cadence: 60(.4/.2,.4/2)
- Page 9 Figure 1.7 Control Timer Values a. HOOK FLASH TIMER MIN: 0.07 b. HOOK FLASH TIMER MAX: 0.13 Distinctive Call Waiting Tone Patterns c. CWT8 CADENCE: 30(.2/.2,.2/4.4) Distinctive Ring Patterns d. RING 1 CADENCE: • 60(1.5/3.4) e. RING 3 CADENCE: • 60(1.5/3.4,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/. 2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2,.4/.2,.4/2)
- Page 10 Miscellaneous Figure 1.8 f. TIME ZONE: GMT+10:00 (or relevant to your area) g. FXS PORT IMPEDANCE: 220+820||120nF 3. Click on SUBMIT ALL CHANGES...
- Page 11 PSTN Line Settings If you have a Linksys ATA with a FXO port for connecting a PSTN line, such as a SPA3000 or a SPA3102, you will now need to click on the PSTN Line tab. Otherwise, you may skip this step.
- Page 12 Extra Information If you ever need to reset the device to its factory defaults, perform the following with your handset: 1. Dial “ **** “ 2. Dial “ 73738# “ 3. Dial “ 1” (to confirm) Please note – this should only be done if you need to erase all the settings you’ve entered!
- Page 13 Making Your Call Please refer to the following examples for making calls via your handset using the Linksys. Examples FRESHTEL Number: 1. *8000 1234 Landline Number: 1. 61 3 9123 4567, or 2. 03 9123 4567, or 3. 9123 4567 (with local prefix set to relevant state) Mobile Number: 1.
- Page 14 Setting Local Call Prefix on Your Account 1. Log into your account at http://www.freshtel.net 2. Click on MY ACCOUNT Figure 1.11 Figure 1.12...
- Page 15 3. Click on UPDATE MY DETAILS Figure 1.13 3. Scroll down to the PREFIX section, and select from one of the following options a. “Not Specified” No Prefix to be set b. “NSW, ACT” c. “Queensland” d. “SA, WA, NT” e.
- Page 16 Definitions BIT - Binary Digit - Bits are widely used as a measurement for network • transmission. One hundred megabits per second means that 100 million pulses are transmitted per second. Broadband – Internet Connection that has a connection speed greater than •...
