GE JVW5301EJ Dimensions And Installation Information

JVW5301sJ/eJ
GE 30" Wall-Mount Pyramid Chimney Hood
®

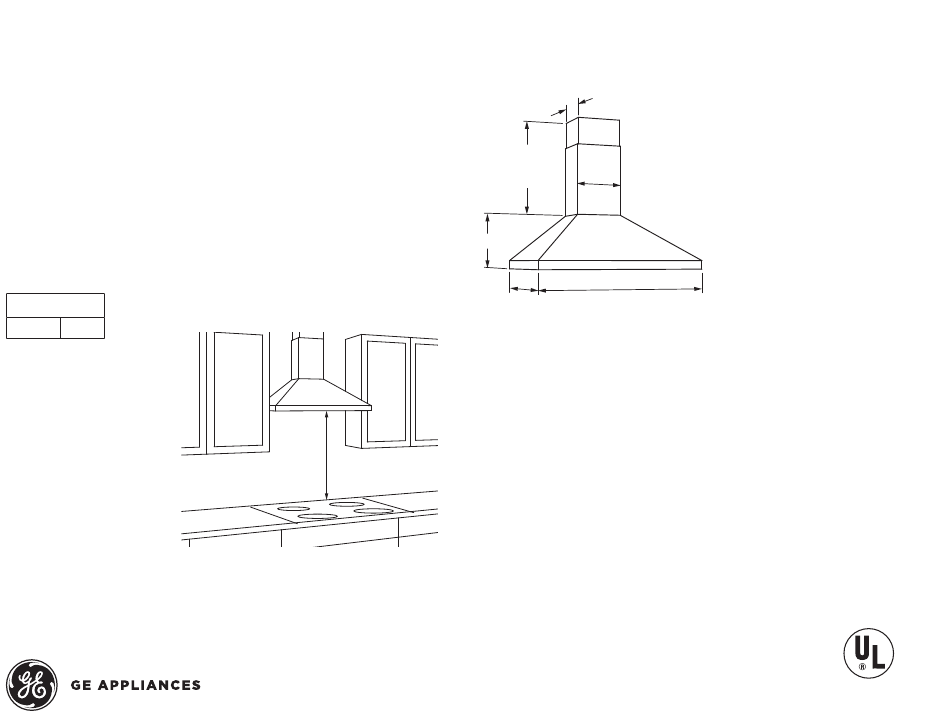

DImensIons anD InstallatIon InformatIon (In Inches)
InstallatIon InformatIon:
Before installing, consult Use & Care/installation instructions
JVW5301SJ_EJ
packed with product for current dimensional data.
optIonal accessorIes
JXDC72SS/ES-10(ft.) Ceiling Duct Cover Kit
Max ceiling height installation with kit - 10'-0"
JXRC70-Remote Control
*The supplied duct cover fits 7'-4" to 9'-0" ceiling heights
JXCF72-Charcoal Filter
(needed if used in recirculation mode)
Amp Rating
120V 2.5
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 38" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF72 will need to be purchased separately.
7"
*Height
to
8-1/2"
Ceiling
9-3/4"
JVW5301SJ_EJ
30"
18-1/2"
30" models require a 30"-wide opening
(10' with optional high ceiling kit JXDC72)
24" Min
For answers to your Monogram,
or GE appliance questions, visit our website
®
at geappliances.com or call GE Answer Center
service, 800.626.2000.
7"
*Height
to
8-1/2"
Ceiling
9-3/4"
18-1/2"
30" models require a 30"-wide opening
*The supplied duct cover fits 7'-4" to 9'-0" ceiling heights
(10' with optional high ceiling kit JXDC72)
The vent hood must be installed 24" min. and 36" max. above the cooking surface.
The hood installation height above the cooking surface depends upon ceiling height.
The telescopic duct cover conceals the ductwork running from the top of the hood to
the ceiling.
24" Min
NOTE: Installation height should be measured from the cooking surface to the low-
est part of the hood. This hood may be installed onto a wall and vented to the out-
doors, or it can be installed for recirculating operation. Parts for recirculating opera-
tion are supplied with the hood. However, when installed for recirculating operation,
the optional charcoal filter JXCF72 will need to be purchased separately.
GE Profile
® ™
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
®
hood more than 38" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
30" Models Require a 30"-Wide Opening
*The supplied duct cover fits 7'-4" to 8'-10" ceiling
heights (10" with optional high ceiling kit JXDC72)
30"
