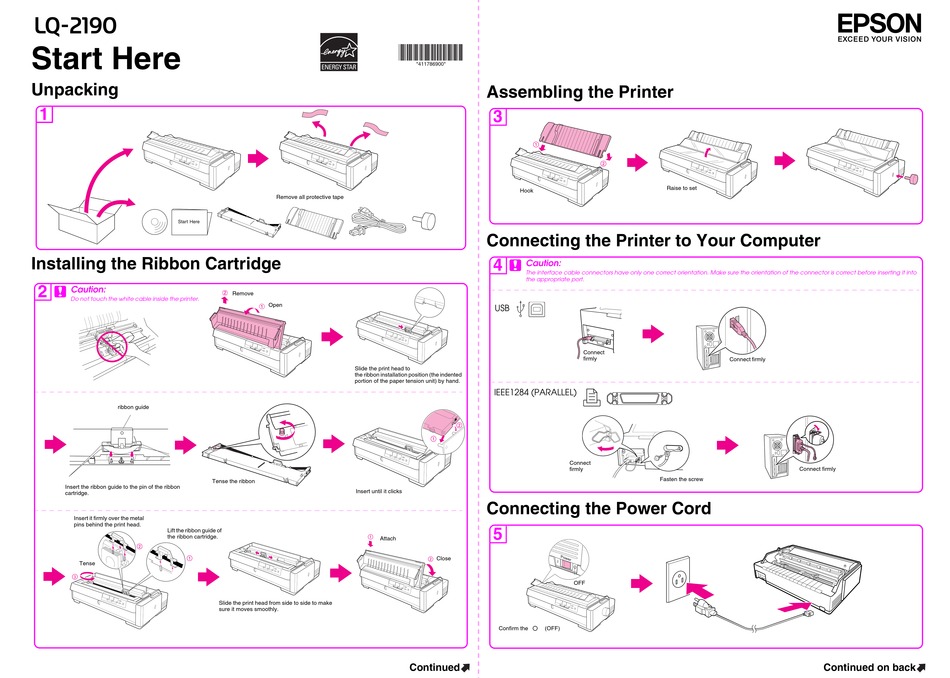

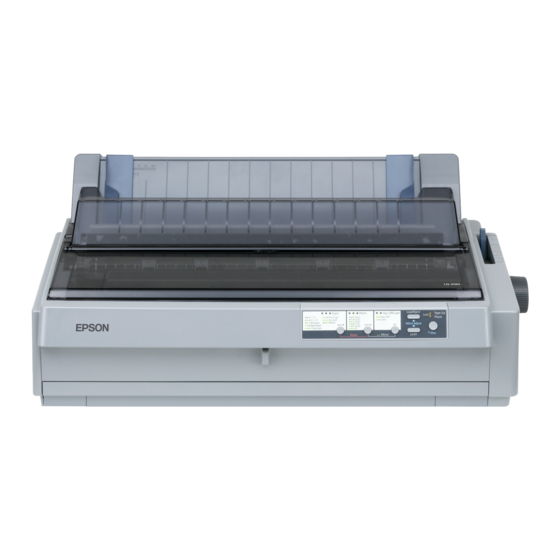

Start Here
Unpacking
1
Installing the Ribbon Cartridge
2
Caution:
c
Do not touch the white cable inside the printer.
ribbon guide
Tense the ribbon
Insert the ribbon guide to the pin of the ribbon
cartridge.
Insert it firmly over the metal
pins behind the print head.
Lift the ribbon guide of
the ribbon cartridge.
Tense
Remove all protective tape
Remove
Open
Slide the print head to
the ribbon installation position (the indented
portion of the paper tension unit) by hand.
Insert until it clicks
Attach
Slide the print head from side to side to make
sure it moves smoothly.
Assembling the Printer
3
Hook
Connecting the Printer to Your Computer
4
Caution:
c
The interface cable connectors have only one correct orientation. Make sure the orientation of the connector is correct before inserting it into
the appropriate port.
USB
Connect
firmly
IEEE1284 (PARALLEL)
Connect
firmly
Connecting the Power Cord
5
Close
OFF
Confirm the
(OFF)
Continued
Raise to set
Connect firmly
Connect firmly
Fasten the screw
Continued on back
