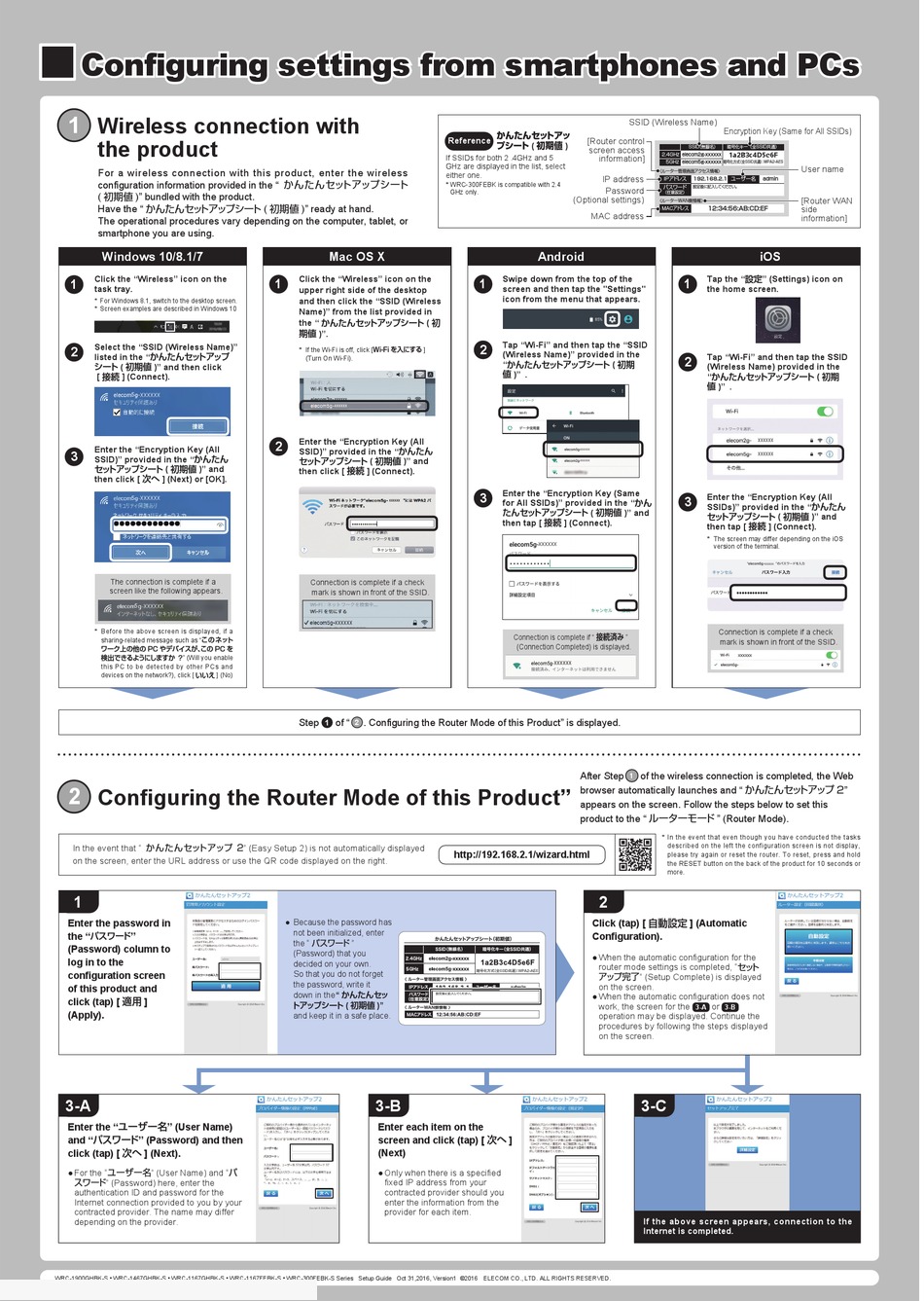

Elecom WRC-1900GHBK-S Setup Manual page 2

Configuring settings from smartphones and PCs Configuring settings from smartphones and PCs
1
Wireless connection with
the product
For a wireless connection with this product, enter the wireless
configuration information provided in the " かんたんセッ トアップシート
( 初期値 )" bundled with the product.
Have the " かんたんセッ トアップシー ト ( 初期値 )" ready at hand.
The operational procedures vary depending on the computer, tablet, or
smartphone you are using.
Windows 10/8.1/7
Click the "Wireless" icon on the
1
task tray.
* For Windows 8.1, switch to the desktop screen.
* Screen examples are described in Windows 10
Select the "SSID (Wireless Name)"
2
listed in the "かんたんセッ トアップ
シー ト ( 初期値 )" and then click
[ 接続 ] (Connect).
5
XXXXXX
Enter the "Encryption Key (All
3
SSID)" provided in the "かんたん
セッ トアップシー ト ( 初期値 )" and
then click [ 次へ ] (Next) or [OK].
5 XXXXXX
The connection is complete if a
screen like the following appears.
5 XXXXXX
* Before the above screen is displayed, if a
sharing-related message such as "このネッ ト
ワーク上の他の PC やデバイスが､この PC を
検出できるようにしますか ? " (Will you enable
this PC to be detected by other PCs and
devices on the network?), click [ いいえ ] (No)
2
Configuring the Router Mode of this Product"
In the event that " かんたんセッ トアップ 2" (Easy Setup 2) is not automatically displayed
on the screen, enter the URL address or use the QR code displayed on the right.
1
Enter the password in
パスワー ド
the " "
(Password) column to
log in to the
configuration screen
of this product and
click (tap) [ 適用 ]
(Apply).
3-A
Enter the "ユーザー名" (User Name)
and "パスワー ド" (Password) and then
click (tap) [ 次へ ] (Next).
● For the "ユーザー名" (User Name) and "パ
スワー ド" (Password) here, enter the
authentication ID and password for the
Internet connection provided to you by your
contracted provider. The name may differ
depending on the provider.
WRC-1900GHBK-S • WRC-1467GHBK-S • WRC-1167GHBK-S • WRC-1167FEBK-S • WRC-300FEBK-S Series Setup Guide Oct 31,2016, Version1 ©2016 ELECOM CO., LTD. ALL RIGHTS RESERVED.
If SSIDs for both 2 .4GHz and 5
GHz are displayed in the list, select
either one.
* WRC-300FEBK is compatible with 2.4
Mac OS X
Click the "Wireless" icon on the
1
upper right side of the desktop
and then click the "SSID (Wireless
Name)" from the list provided in
the " かんたんセッ トアップシー ト ( 初
期値 )".
* If the Wi-Fi is off, click [Wi-Fi を入にする ]
(Turn On Wi-Fi).
XXXXXX
XXXXXX
Enter the "Encryption Key (All
2
SSID)" provided in the "かんたん
セッ トアップシー ト ( 初期値 )" and
then click [ 接続 ] (Connect).
XXXXXX
Connection is complete if a check
mark is shown in front of the SSID.
XXXXXX
Step of " . Configuring the Router Mode of this Product" is displayed.
2
1
● Because the password has
not been initialized, enter
the " パスワー ド "
(Password) that you
decided on your own.
So that you do not forget
the password, write it
down in the" かんたんセッ
トアップシー ト ( 初期値 )"
and keep it in a safe place.
3-B
Enter each item on the
screen and click (tap) [ 次へ ]
(Next)
● Only when there is a specified
fixed IP address from your
contracted provider should you
enter the information from the
provider for each item.
かんたんセッ トアッ
Reference [Router control
プシート ( 初期値 )
screen access
information]
IP address
Password
GHz only.
(Optional settings)
MAC address
Android
Swipe down from the top of the
1
screen and then tap the "Settings"
icon from the menu that appears.
Tap "Wi-Fi" and then tap the "SSID
2
(Wireless Name)" provided in the
"かんたんセッ トアップシー ト ( 初期
値 )" .
XXXXXX
XXXXXX
Enter the "Encryption Key (Same
3
for All SSIDs)" provided in the "かん
たんセッ トアップシー ト ( 初期値 )" and
then tap [ 接続 ] (Connect).
XXXXXX
Connection is complete if " 接続済み "
(Connection Completed) is displayed.
XXXXXX
After Step
browser automatically launches and " かんたんセッ トアップ 2"
appears on the screen. Follow the steps below to set this
product to the " ルーターモー ド " (Router Mode).
http://192.168.2.1/wizard.html
2
Click (tap) [ 自動設定 ] (Automatic
Configuration).
● When the automatic configuration for the
router mode settings is completed, "セッ ト
アップ完了" (Setup Complete) is displayed
on the screen.
● When the automatic configuration does not
work, the screen for the
operation may be displayed. Continue the
procedures by following the steps displayed
on the screen.
SSID (Wireless Name)
Encryption Key (Same for All SSIDs)
SSID （無線名） 暗号化キー（全SSID共通）
2.4GHz elecom2g-xxxxxx 1a2B3c4D5e6F
5GHz elecom5g-xxxxxx
暗号化方式 （全SSID共通） ： WPA2-AES
User name
〈ルーター管理画面アクセス情報〉
IPアドレス 192.168.2.1 ユーザー名 admin
パスワード 設定後に記入してください。
（任意設定）
[Router WAN
〈ルーターWAN側情報〉
12:34:56:AB:CD:EF side
MACアドレス
information]
iOS
Tap the "設定" (Settings) icon on
1
the home screen.
Tap "Wi-Fi" and then tap the SSID
2
(Wireless Name) provided in the
"かんたんセッ トアップシー ト ( 初期
値 )" .
XXXXXX
XXXXXX
Enter the "Encryption Key (All
3
SSIDs)" provided in the "かんたん
セッ トアップシー ト ( 初期値 )" and
then tap [ 接続 ] (Connect).
* The screen may differ depending on the iOS
version of the terminal.
XXXXXX
Connection is complete if a check
mark is shown in front of the SSID.
XXXXXX
of the wireless connection is completed, the Web
1
* In the event that even though you have conducted the tasks
described on the left the configuration screen is not display,
please try again or reset the router. To reset, press and hold
the RESET button on the back of the product for 10 seconds or
more.
or
3-A 3-B
3-C
If the above screen appears, connection to the
Internet is completed.
