Elecom WRC-1900GHBK-S Setup Manual

Setup Guide

■

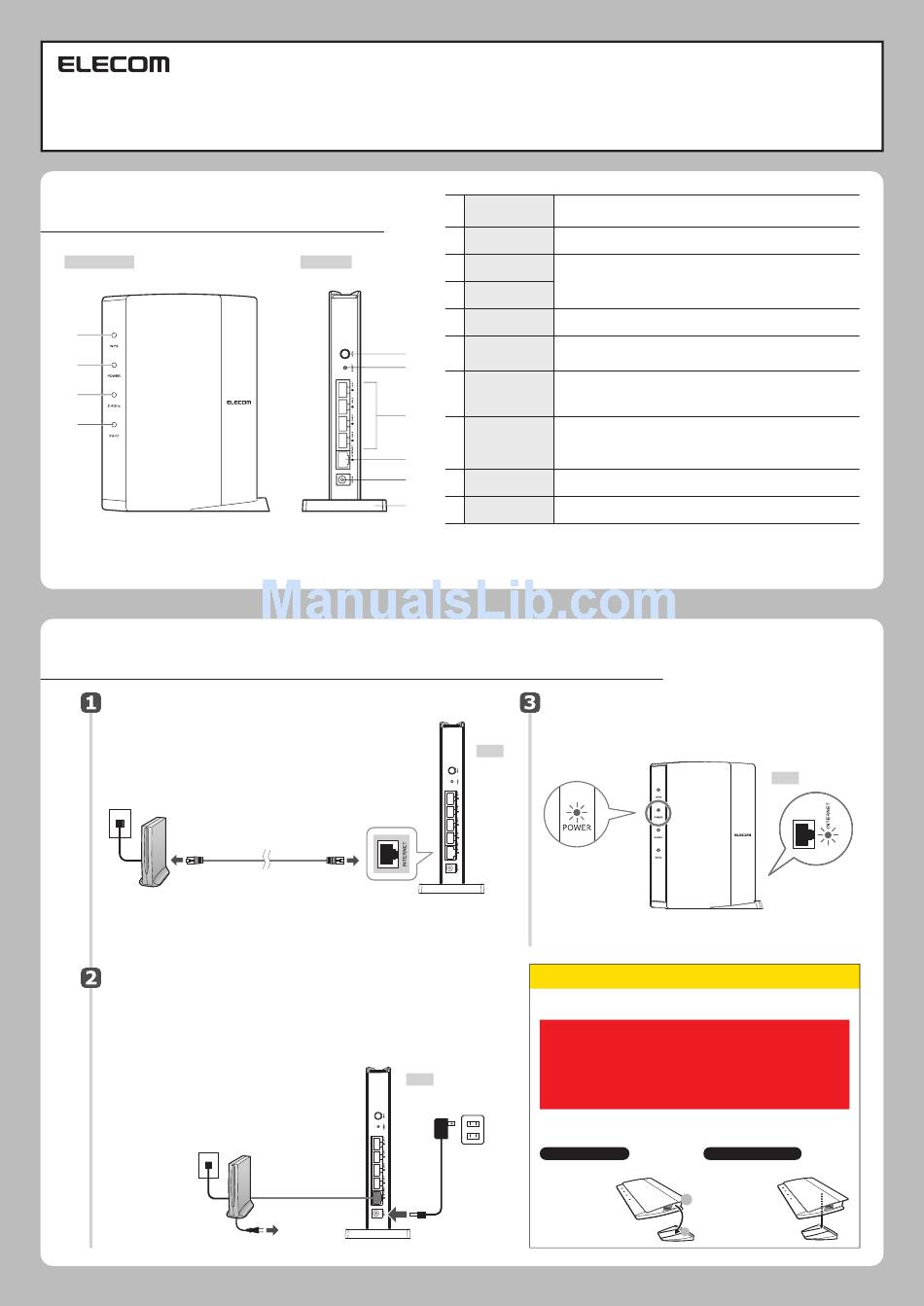

Names and Functions of Parts
Left side view
①
②
③
④
■
Installation of the product (router)
Connect the equipment.
Use the illustration as a reference for wiring various
devices.
Terminal device
(cable TV modem,
ONU, CTU, ADSL)
Turn on the terminal device and this product.
① Connect the power cable of the
terminal device.
If there is a power switch, turn on
the switch.
② Connect the AC adapter included
with the product.
Back view
⑤
⑥
⑦
⑧
⑨
⑩
INTERNET port (blue)
LAN cable
Back
To AC outlet
②
①
To AC outlet
WRC-1900GHBK-S • WRC-1467GHBK-S • WRC-1167GHBK-S • WRC-1167FEBK-S •
WRC-300FEBK-S
This manual provides a summary of and the specifications for this product as well as explains this product's usage
precautions.
It also contains an FAQ that explains actions you can take if you have problems such as the product malfunctioning.
Note that this manual is common for the WRC-1900GHBK-S • WRC-1467GHBK-S • WRC-1167GHBK-S •
WRC-1167FEBK-S • WRC-300FEBK-S (which only supports 2.4 GHz). The WRC-300FEBK-S does not support the
11ac/11a (5 GHz) standards.
Blinking: WPS setting button is pressed and WPS function is running.
①
WPS lamp (red)
Blinking continues at 0.5-second intervals for approximately 2 minutes.
Not lit: WPS function is not running.
②
Power lamp
Lit: Power of this product is on
Not lit: Power of this product is off
(white)
This indicates the connection status of 2.4 GHz band (11n/g/b) and 5GHz band (11ac/n/a).
③
2.4G WLAN lamp
Lit: Wireless LAN connection is established.
(white)
Blinking: Wireless LAN connection is underway.
④
Not lit: Wireless LAN connection is not established.
5G WLAN lamp
(white)
*1
⑤
This is used to connect to a wireless device with WPS function (such as a wireless LAN adapter).
WPS setting
To use this, press the button for 2 seconds or more.
button
*2
⑥
When this button is pressed continuously for more than 10 seconds, the WPS lamp
RESET button
*2
blinks and the product's settings are initialized (returned to the factory default settings).
Do not turn off the power during the WPS lamp is blinking.
⑦
These ports are used to connect PCs and network equipment to this product with a LAN cable.
LAN ports/LAN
Lit: LAN cable connection with PC or network equipment is established.
lamps 1 - 4
Blinking: Data is being transferred.
(white)
*3
Not lit: Cable is not connected.
⑧
Connect the cable of the WAN (Internet)-side devices of various types of modems (ONU,
INTERNET port/
CTU, etc.). An LED lamp is located next to the port.
INTERNET lamp
Lit: Connection with WAN-side device is established.
(white)
*3
Blinking: Data is being transferred.
Not lit: Cable is not connected.
⑨ Connect the AC adapter included with the product. Do not connect any AC adapter other
DC IN
than the one included with the product.
(power supply jack)
⑩ For instructions on how to use the stand, please read the attachment "Installation
Stand
method and precautions".
*1 WRC-300FEBK-S does not have a 5G WLAN lamp.
*2 The positions of the WPS setting button and RESET button on WRC-300FEBK-S are different from those shown in the
illustration.
*3 WRC-300FEBK-S does not have LAN port lamps 1 to 4 and INTERNET lamp.
Check that the lamp is lit.
Check that the lamps on the modem, etc and this
product are lit correctly.
Back
POWER:Lit
Installation method and precautions
* Be sure to follow the installation method described below and use this product
correctly.
• WRC-1900GHBK-S and WRC-1467GHBK-S units cannot be mounted
horizontally. Be sure to use it in the vertical orientation.
• Whether in a horizontal or vertical position, the product should not be placed
in a location such as between a wall and a desk but in a well-ventilated area.
Do not place this product so as to overlap network equipment such as a
modem or terminal device.
• The stand is not secured to the product. Place the product on the stand after
connecting the cables to the product.
As dropping this product or yanking a cable during operation could lead to damage or data
loss, be sure to stabilize the product by placing it on the stand included and take measures
to prevent dropping or yanking.
AC outlet
Vertical placement
• Face the side with the LED lamp forward.
• Refer to the
illustration to set
the back side of the
product on the
provided stand in a
way that it fits
snuggly in the
groove.
Back
INTERNET:
Lit or blinking
* WRC-300FEBK-S does not have a
5G WLAN lamp or INTERNET lamp.
Horizontal placement
• Face the side with the LED lamp upward.
• Place the product
on the center rear
of the provided
stand so that the
body does not
wobble.
