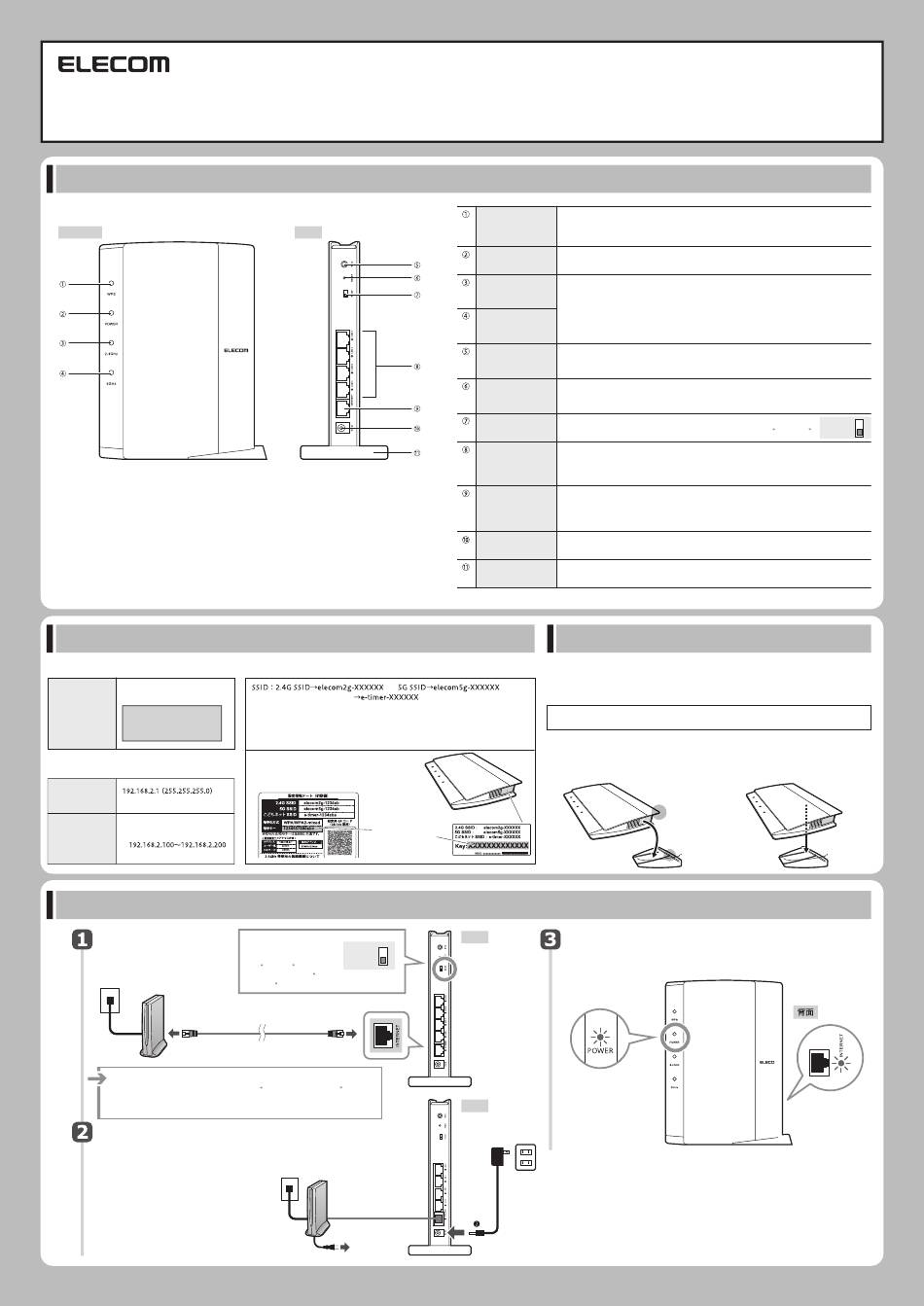

Elecom WRC-2533GHBK-I Setup Manual

Setup Guide

Name and function of each part
Left side
Primary specification and factory default values (initial value)
■The factory default values of setting utility
User name and User name : admin
password for login Password : admin
We strongly recommend
that you change
the password (admin).
■Factory default values related to wired LAN
Router body
IP address (LAN side)
＊Router and AP mode
DHCP server DHCP server function : Valid
function
Assignment IP address :
How to install this product (wireless router)
Connect the devices.
Refer to the diagram and
wire the devices.
Terminal device
(cable TV modem, ONU, CTU, ADSL)
Included stand
Please reference P1 of the attachment Product information for the
details of the method to attach the stand.
Connect all the wires before attaching the stand to this product.
Turn on the terminal device and this product.
❶Connect the power cable of the terminal device.
If a power switch is present, slide
the switch to the on position.
❷Connect the included AC adapter
to this product.
WRC-2533GHBK-I / WRC-1750GHBK2-I / WRC-F1750ACGH / WRC-1167GHBK2-I
WRC-F1167ACG / WRC-1167GEBK-I / WRC-F1167ACF / WRC-733GHBK-I
WRC-733GEBK-I / WRC-300GHBK2-I
This manual provides a summary of and the specifications for this product as well as explains this product's usage
precautions.
It also contains an FAQ that explains actions you can take if you have problems such as the product malfunctioning.
Back
■Factory default values (initial value) related to wireless LAN
Child net SSID (2.4G only)
Encryption system : WPA2-PSK (AES)
Encryption key (password) : Written on the encryption key label on the product and
the included setup information sheet (see below)
＊SSID is written on the included setup information sheet Xs are random half-width
characters selected from the numbers 0 to 9 and letters a to f.
Encryption key
Encryption key is written on the encryption key label on
the bottom surface of product and the included setup
information sheet.
Setup information sheet
Encryption key
(A 13-character random
combination of the
numbers 0 to 9 and
letters A to H will go in
the place of X.)
Before wiring, check the
mode switch on the
AP mode
back of product is on
RT mode
the RT side .
＊Initial setting is RT
mode .
INTERNET port (blue)
LAN cable
❶To an AC outlet
WPS lamp Blinking: The WPS setting button has been pressed, and the WPS function is running.
This lamp blinks once every 0.5 second for approximately 2 minutes.
(red)
Off: The WPS function is not running
POWER lamp Lit : The product is on.
(blue) Off : The product is off.
＊1
2.4G WLAN lamp The lamp indicates the connection status of the 2.4 GHz band (11n/g/b) and
(blue) the 5 GHz band (11ac/n/a).
＊1
Lit : The corresponding band is being connected to a wireless client (wireless adapter).
Blinking : The corresponding band has been connected to a wireless client to use for
5G WLAN lamp
less than 10 seconds.
(blue)
＊1 ＊2
Off : There are no wireless client using the corresponding band.
WPS setting Use this button when you are connecting the product to a wireless slave
button
device (such as a wireless adapter) that is equipped with a WPS function.
To use this function, press this button for 2 seconds or more.
Reset button
When you press this button for more than 10 seconds, the POWER lamp blinks
and the product's settings are initialized (returned to the factory default values).
Do not turn off the product until the POWER lamp stops blinking.
RT/AP mode Use this switch to select whether to use this product in either RT
changeover switch (router) mode or AP (access point) mode. Initial setting is RT mode .
LAN port/ Use these ports to connect this product to PCs or other network devices over a
LAN lamp 1 to 4 wired LAN. There is an LED lamp next to each port.
(blue) Lit : The link to the PC or network device connected over a wired LAN has been
＊1
established. Blinking : Data is being transferred. Off : The cable is disconnected.
INTERNET port/
Connect the cable from the WAN (Internet) device of the modem (ONU, CTU,
INTERNET lamp and other types). There is an LED lamp next to the port.
(blue) Lit : The link to the WAN device has been established. Blinking : Data is being
＊1
transferred. Off : The cable is disconnected.
DC IN
Connect the AC adapter included with this product to this jack. Do not connect
(power supply jack) any AC adapters other than the one included with this product.
Stand
You can use the stand included with this product to orient it vertically or horizontally.
For details on how to use the stand, see "Installation method and precautions" below.
＊1 The lamp of WRC-2533GHBK-I is white (except WPS lamp).
＊2 There is no 5G WLAN lamp on the WRC-300GHBK2-I.
Installation method and precautions
This product can be installed vertically or horizontally. With either orientation, be sure
to stabilize the product by setting it into the included stand. Also, with either orienta-
tion, take measures to prevent the product from falling over and the cables from
being pulled out. The product falling over or the cables being pulled out from the
connectors while the product is in operation may lead to malfunctions or data loss.
The stand is not fixed to the product. Connect the cables to the product, and then
set the product into the stand.
◆Vertical orientation
• Use the side with the LED lamps as the front.
• Refer to the illustration and set the product
into the included stand so that the back of
the product fits snugly in the grooves on the stand.
Encryption key label
Check the lit status of the lamps.
Back
• Check that the lamps on the modem or similar device and
this product are lit correctly.
＊Vertical orientation
POWER : Lit
Back
AC adapter
AC outlet
AP mode
RT mode
◆Horizontal orientation
• Use the side with the LED lamps as the top.
• Place the product on the included stand so that
the product is on top of the center, back part of
the stand, and then ensure that the product is steady.
INTERNET:
Blinking or solid
* There is no 5G WLAN lamp on the WRC-300GHBK2-I.
