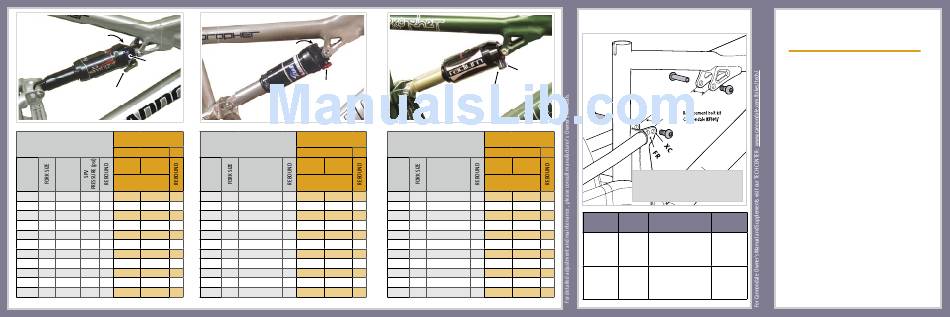

Cannondale PROPHET Setup Manual

AIR PRESSURE
REBOUND
SPV LEVER
(4-positions)
Position shock as shown in the XC or FR swingarm positions.
SWINGER X3
LEFTY MAX 140 - SPV
SWINGARM POSITIONS
xc fr
RIDER FORK
WT. SPRING
(lbs) (Color )
AIR PRESSURE (psi)
120 PT GREEN 40 9 95 85 21
130 SM GREEN 50 9 105 95 21
140 SM GREEN 60 9 115 100 21
150 MD BLUE 50 9 120 105 21
160 MD BLUE 60 8 130 115 20
170 LG RED 60 8 135 120 20
180 LG RED 60 8 145 130 20
190 XL BLACK 60 8 155 140 20
200 XL BLACK 70 7 160 145 19
210 XL BLACK 70 7 165 150 19
220 XL BLACK 80 6 170 155 18
AIR PRESSURE
REBOUND

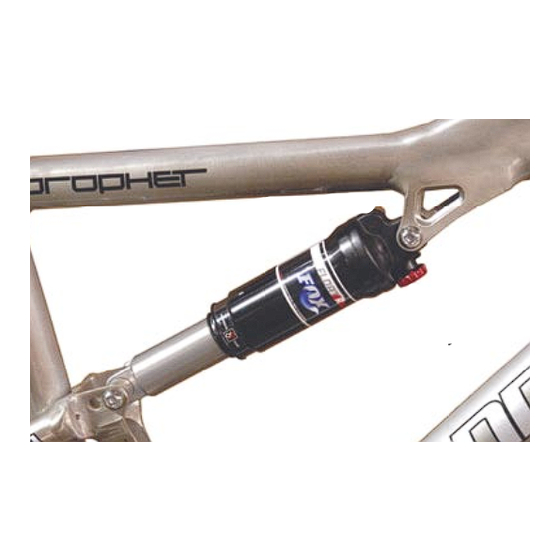

Position shock as shown in the XC or FR swingarm positions.
LEFTY MAX 140 -
FLOAT R
TPC FFD
OR
SWINGARM POSITIONS
xc fr
RIDER FORK SPRING
WT. (Color )
(lbs)
AIR PRESSURE (psi)
120 PT BLUE 9 100 90 4
130 SM BLUE 9 110 105 4
140 SM BLUE 9 115 115 3
150 MD RED 9 125 120 3
160 MD RED 8 135 130 3
170 LG BLACK 8 140 135 2
180 LG BLACK 8 150 145 2
190 XL BLACK 8 160 155 2
200 XL BROWN 7 165 160 1
210 XL BROWN 7 175 165 1
220 XL BROWN 6 185 170 1
REBOUND
AIR PRESSURE
Position shock as shown in the XC or FR swingarm positions.
LEFTY MAX 140 -
RADIUM R
TPC FFD
OR
SWINGARM POSITIONS
xc fr
RIDER FORK SPRING
WT. (Color )
(lbs)
AIR PRESSURE (psi)
120 PT BLUE 9 110 100 9
130 SM BLUE 9 115 105 9
140 SM BLUE 9 125 110 9
150 MD RED 9 135 120 9
160 MD RED 8 145 130 8
170 LG BLACK 8 155 140 8
180 LG BLACK 8 165 150 8
190 XL BLACK 8 175 160 8
200 XL BROWN 7 180 165 7
210 XL BROWN 7 185 170 7
220 XL BROWN 6 190 180 6
PROPHET SWINGARM POSITIONS
35 mm
27.4mm
45 mm
37.4mm
• Shock mounting bolts are 5 mm Allen Key.
• Be sure to use Loctite™ 242 (blue).
• Tighten to 5.0 N•m , 44 In•Lbs.
SUGGESTED
SHOCK HEADTUBE
RESULT REAR SHOCK
POSITION ANGLE
SAG
Cross-country feel. Steeper
13-15mm
head tube and seat tube
xc 69°
angles - quicker turning
(25-30%)
and better climbing.
Freeride style riding. Slack
15-17mm
head tube seat tube angles
fr 67.5°
- more stability- slightly
(30-35%)
better for attacking bumps.
LEFTY MAX 140
Technology Overview
SPV - STABLE PLATFORM VALVE
Features the Manitou SPV compression damper. Adjust
SPV air pressure and volume externally to control pedaling
platform and progressive or linear damping. Additional
features include the Cannondale-Specific rebound system
which provides external rebound damping control with an
indexed dial and wider range of adjustment.
TPC - TWIN PISTON CHAMBER
Features independent damping pistons: one optimized for
rebound, and the other for compression. Additionally, we use
a low pressure, high volume system to eliminate cavitation
(which leads to compression spikes and stiffening) and heat
related problems. Our Quick Range TPC allows minimum to
maximum compression damping adjustment in a half-turn of
the knob. With the combination of Quick Range TPC and the
Cannondale-Specific rebound system, riders can quickly and
easily tune ride qualities.
FFD - FLUID FLOW DAMPING
A TPC derived hydraulic damping system featuring compression
and externally adjustable rebound damping pistons. We use
a low pressure, high volume system to eliminate cavitation
(which leads to compression spikes and stiffening) and heat-
related problems. The FFD still uses the Cannondale-Specific
rebound system.
120020 09/06
