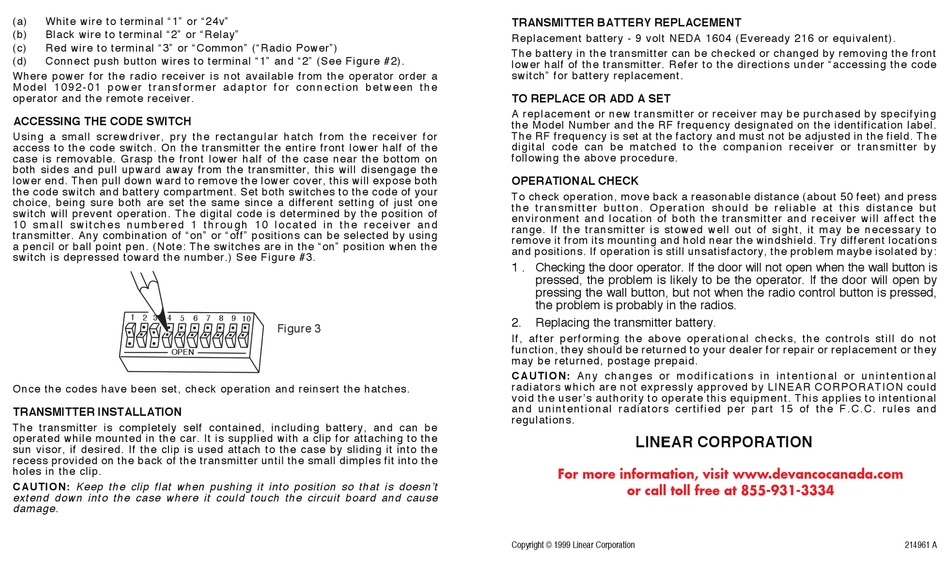

Multi-code 1090 Installation Instructions page 2

(a) White wire to terminal "1" or "24v"
(b) Black wire to terminal "2" or "Relay"
(c) Red wire to terminal "3" or "Common" ("Radio Power")
(d) Connect push button wires to terminal "1" and "2" (See Figure #2).
Where power for the radio receiver is not available from the operator order a
M o d e l 1 0 9 2 - 0 1 p o w e r t r a n s f o r m e r a d a p t o r f o r c o n n e c t i o n b e t w e e n t h e
operator and the remote receiver.
ACCESSING THE CODE SWITCH
Using a small screwdriver, pry the rectangular hatch from the receiver for
access to the code switch. On the transmitter the entire front lower half of the
case is removable. Grasp the front lower half of the case near the bottom on
both sides and pull upward away from the transmitter, this will disengage the
lower end. Then pull down ward to remove the lower cover, this will expose both
the code switch and battery compartment. Set both switches to the code of your
choice, being sure both are set the same since a different setting of just one
switch will prevent operation. The digital code is determined by the position of
1 0 s m a l l s w i t c h e s n u m b e r e d 1 t h r o u g h 1 0 l o c a t e d i n t h e r e c e i v e r a n d
transmitter. Any combination of "on" or "off" positions can be selected by using
a pencil or ball point pen. (Note: The switches are in the "on" position when the
switch is depressed toward the number.) See Figure #3.
OPEN
Once the codes have been set, check operation and reinsert the hatches.
TRANSMITTER INSTALLATION
The transmitter is completely self contained, including battery, and can be
operated while mounted in the car. It is supplied with a clip for attaching to the
sun visor, if desired. If the clip is used attach to the case by sliding it into the
recess provided on the back of the transmitter until the small dimples fit into the
holes in the clip.
CAUTION: Keep the clip flat when pushing it into position so that is doesnʼt
extend down into the case where it could touch the circuit board and cause
damage.
Figure 3
TRANSMITTER BATTERY REPLACEMENT
Replacement battery - 9 volt NEDA 1604 (Eveready 216 or equivalent).
The battery in the transmitter can be checked or changed by removing the front
lower half of the transmitter. Refer to the directions under "accessing the code
switch" for battery replacement.
TO REPLACE OR ADD A SET
A replacem ent or new transm itter or receiver may be purchased by specifying
the Model Number and the RF frequency designated on the identification label.
The RF frequency is set at the factory and must not be adjusted in the field. The
digital code can be m atched to the com panion receiver or transmitter by
following the above procedure.
OPERATIONAL CHECK
To check operation, move back a reasonable distance (about 50 feet) and press
t h e t r a n s m i t t e r b u t t o n . O p e r a tio n s ho uld b e r elia ble at t his di s ta nc e b ut
environm ent and location of both the transmitter and receiver will affect the
range. If the transmitter is stowed well out of sight, it m ay be necessary to
remove it from its mounting and hold near the windshield. Try different locations
and positions. If operation is still unsatisfactory, the problem maybe isolated by:
1 . Checking the door operator. If the door will not open when the wall button is
pressed, the problem is likely to be the operator. If the door will open by
pressing the wall button, but not when the radio control button is pressed,
the problem is probably in the radios.
2. Replacing the transmitter battery.
If, after performing the above operational checks, the controls still do not
function, they should be returned to your dealer for repair or replacement or they
may be returned, postage prepaid.
CAUTION: A n y c h a n g e s o r m o d i f i c a t i o n s i n i n t e n t i o n a l o r u n i n t e n t i o n a l
radiators which are not expressly approved by LINEAR CORPORATION could
void the userʼs authority to operate this equipment. This applies to intentional
a n d u n i n t e n t i o n a l r a d ia to r s c er ti fie d pe r p ar t 1 5 of t he F . C . C . r ule s a nd
regulations.
LINEAR CORPORATION
2055 Corte del Nogal • Carlsbad, CA 92008
For more information, visit www.devancocanada.com
(760) 438-7000
or call toll free at 855-931-3334
Copyright © 1999 Linear Corporation 214961 A
