Multi-code 3089 Installation Instructions

OPERATIONAL CHECK
To check operation, move back a reasonable distance (about 50 ft.) and press
the transmitter button. Operation should be reliable at this distance but
environment and location of both the transmitter and receiver will affect the
range. If the transmitter is stowed well out of sight, it may be necessary to
remove it from its mounting and hold near the windshield. Try different locations
and positions. If operation is still unsatisfactory, the problem may be isolated by:
1. Checking the door operator. If the door will not open when the wall button is
pressed, the problem is likely to be the operator. If the door will open by pressing
the wall button, but not when the radio control button is pressed, the problem is
probably in the radios.
2. Replacing the transmitter battery. If after performing the above operational
checks, the controls still do not function, they should be returned to your dealer for
repair or replacement.
CAUTION: Any changes or modifi cations in intentional or unintentional radiators
which are not expressly approved by LINEAR LLC could void the user's authority
to operate this equipment. This applies to intentional and unintentional radiators
certifi ed per Part 15 of the F.C.C. rules and regulations.
(800) 421-1587 • (760) 438-7000
www.linearcorp.com
Copyright © 2008 Linear LLC
LINEAR LLC

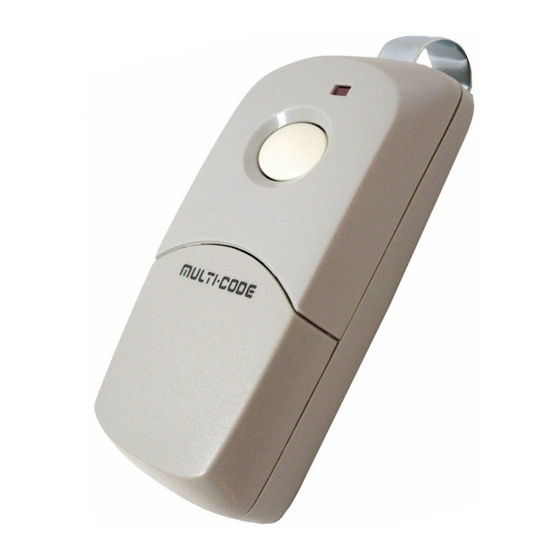

DIGITAL TRANSMITTER MODEL 3089
Congratulations! You have just purchased a MULTI-CODE Digital Transmitter,
which we believe to be the fi nest product of its kind on the market. With a little
care this transmitter should provide you with many years of excellent service.
Please take a moment to read the following instructions and you will fi nd that setting
your new transmitter will be quite an easy matter.
ACCESSING THE CODE SWITCH
Insert a small coin into the slot located at the bottom end of the transmitter. Twist
the coin and remove the access cover to expose the code switch and battery
compartment.
215641 B
®

INSTALLATION INSTRUCTIONS
