Register your product and get support at
www.philips.com/support
AJ3400
EN
User manual
ZH-HK 用戶手冊
This product has been manufactured by, and is sold
under the responsibility of Gibson Innovations Ltd., and
Gibson Innovations Ltd. is the warrantor in relation to
this product.
Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used
under license.
AJ3400_05_UM_V5.0
EN
1
Important
Read these instructions.
Heed all warnings.
Follow all instructions.
Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
Only use attachments/accessories specified by the manufacturer.
Unplug this clock radio during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the clock radio has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the clock radio, the clock radio
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
Battery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the clock radio:
Install the battery correctly, + and - as marked on the clock radio.
Remove the battery when the clock radio is not used for a long time.
The battery shall not be exposed to excessive heat such as
sunshine, fire or the like.
This clock radio shall not be exposed to dripping or splashing.
AJ3400_05_QSG_V6.0.indd 1
Do not place any sources of danger on the clock radio (e.g. liquid
filled objects, lighted candles).
Where the plug of the Direct Plug-in Adapter is used as the disconnect
device, the disconnect device shall remain readily operable.
2

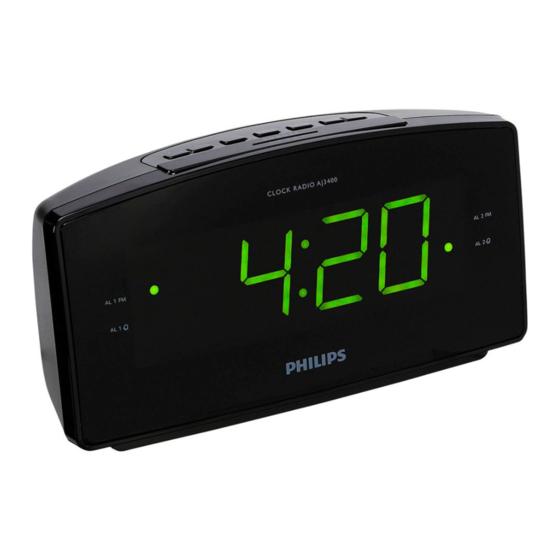

Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
What's in the box
4
User manual
3
Get started
Always follow the instructions in this chapter in sequence.
Install battery
Tune to FM radio stations
If there is power interruption, the clock memory backup allows your
alarm and clock settings to be stored for up to a day. The display
backlight will be off.
Caution
Risk of explosion! Keep the battery away from heat, sunshine
or fire. Never discard battery in fire.
The battery contains chemical substances, so it should be
disposed of properly.
Insert 2 x 1.5V AAA battery (not supplied) with correct polarity
(+/-) as illustrated.
Store FM radio stations manually
You can store up to 10 FM radio stations.
Connect power
1 Tune to an FM radio station.
2 Press and hold PRESET for two seconds.
Caution
3 Press
Risk of product damage! Make sure that the power voltage
4 Press PRESET again to confirm.
corresponds to the voltage printed on the back or underside
of the clock radio.
5 Repeat steps 1 to 4 to store other stations.
Risk of electric shock! When you unplug the power adapter,
always pull the plug from the socket. Never pull the cord.
Note
The type plate is located at the bottom of the clock radio.
Select a preset radio station
In tuner mode, press PRESET repeatedly to select a preset number.
Adjust volume
While listening, press - VOLUME + to adjust volume.
5
Set alarm timer
Set alarm
Set time
Note
You can only set time in standby mode.
Follow the illustration to set the first alarm.
1
2
PRESET/
HOUR
SET TIME
2 sec
3
4
PRESET/
MIN
SET TIME
Listen to FM radio
Note
Keep the clock radio away from other electronic devices to
Select alarm source
avoid radio interference.
For better reception, fully extend and adjust the position of the
You can select FM radio or buzzer as the alarm source.
FM antenna.
1
2
RADIO
TUNING
2 sec
ON/OFF
MIN
4
3
TUNING
- VOLUME +
Activate/deactivate alarm timer
2 sec
HOUR
Press AL1 or AL2 repeatedly to activate or deactivate the alarm timer.
Snooze alarm
When alarm sounds, press SNOOZE.
Set sleep timer
This clock radio can switch to standby mode automatically after a
preset period.
" The preset number begins to blink.
To deactivate the sleep timer:
TUNING
repeatedly to select a number.
Tip
To remove a pre-stored station, store another station in its place.
120
" The volume level (1~15) shows in the display.
Other features
Adjust brightness
Press BRIGHTNESS repeatly to adjust display brightness.
Note
You can only set the alarm in standby mode.
When alarm sounds, volume rises gradually. You cannot adjust
the alarm volume manually.
Make sure that you have set the clock correctly.
AL1: set the first alarm.
AL2: set the second alarm.
6
1
2
2 sec
HOUR
AL1
Specifications
Amplifier
Total Output Power
3
4
MIN
AL1
Tuner (FM)
Tuning range
Tuning grid
Sensitivity
- Mono, 26 dB S/N Ratio
- Stereo, 46 dB S/N Ratio
Total Harmonic Distortion
Tip
Signal to Noise Ratio
The clock radio exits alarm setting mode when being idle for 10 seconds.
General information
AC power (power adapter)
" The corresponding alarm icon lights up.
The AL2 setting is the same as AL1.
Operation Power Consumption
Standby Power Consumption
AL1 FM
Dimensions:
AL1
Main Unit (W x H x D)
Weight: -Main Unit
AL
1
7
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and
" If the alarm timer is deactivated, the alarm indicator turns off.
the model number and serial number are available.
" The alarm repeats ringing for the next day.
No power
• Ensure that the AC power plug of the unit is connected properly.
• Ensure that there is power at the AC outlet.
No sound
" The alarm snoozes and repeats ringing nine minutes later.
• Adjust the volume.
No response from the unit
• Disconnect and reconnect the AC power plug, then turn on the
Poor radio reception
• Increase the distance between the unit and your TV or VCR.
• Fully extend the FM antenna.
Press SLEEP repeatedly until [OFF] appears.
Alarm does not work
• Set the clock/alarm correctly.
Clock/alarm setting erased
• Power has been interrupted or the power plug has been disconnected.
SLEEP
• Reset the clock/alarm.
8
Any changes or modifications made to this device that are not
expressly approved by Gibson Innovations may void the user's
authority to operate the equipment.
Hereby, Gibson Innovations declares that this product is in
compliance with the essential requirements and other relevant
90
60
30
15
provisions of Directive 2014/53/EU. You can find the Declaration of
Conformity on www.philips.com/support.
OFF
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
BRIGHTNESS
This symbol on a product means that the product is covered by
European Directive 2012/19/EU. Inform yourself about the local
separate collection system for electrical and electronic products.
Follow local rules and never dispose of the product with normal
household waste. Correct disposal of old products helps prevent
negative consequences for the environment and human health.
Product information
Note
Product information is subject to change without prior notice.
0.4W RMS
87.5-108 MHz
50 KHz
<22 dBf
<49.5 dBf
<2%
>50 dBA
Brand name: Philips;
Model: AS030-050-EI050;
Input: 100-240 V~, 50/60 Hz;
0.15 A;
Output: 5.0 V
0.5 A
1.2 W
<1 W
191 x 104 x 69 mm
0.33 kg
Troubleshooting
Warning
Never remove the casing of this apparatus.
unit again.
Notice
2017/5/24 14:33:16
