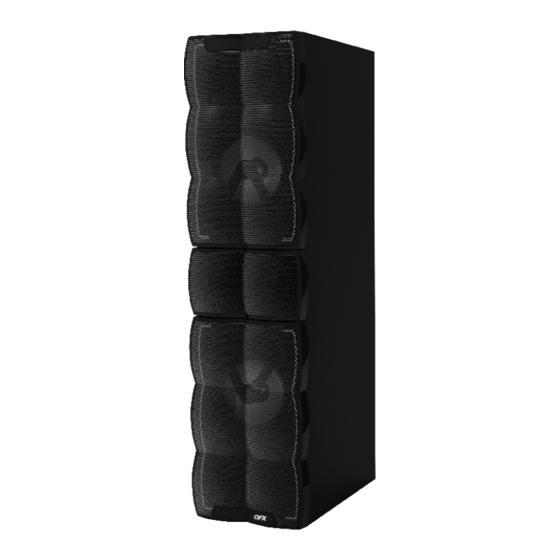

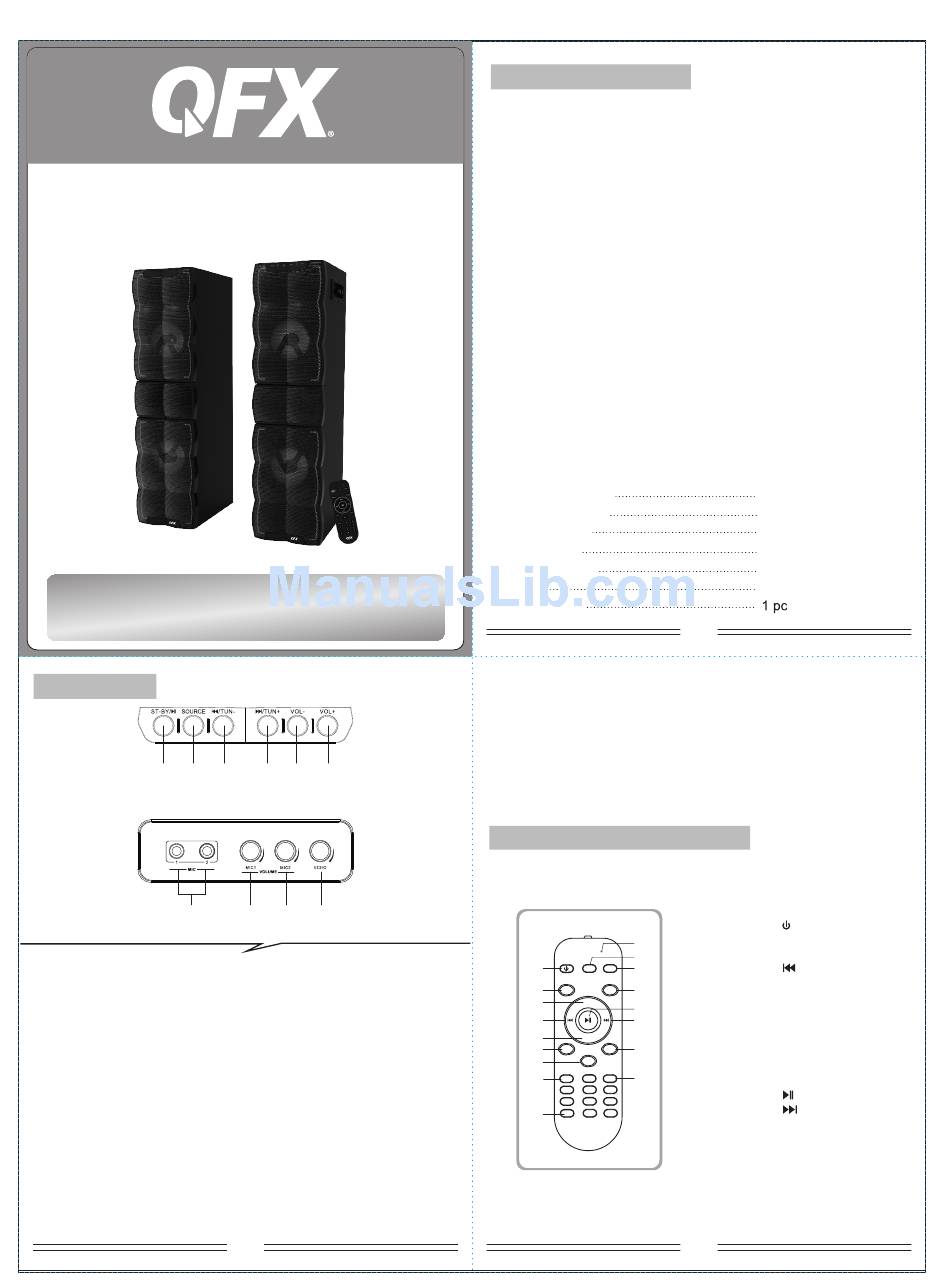

MULTIMEDIA SPEAKER SYSTEM
HE-620700
DEAR CUSTOMER:
Thank you to buy the product !
Prior to first use, please read the manual carefully.
Front panel
(1) (2)

MAIN UNIT (FRONT CONTROLS)

(7)

MAIN UNIT (TONE CONTROLS)

1. ST-BY/PLAY/PAUSE: Long press to St-By ON and short press to St-By
OFF in all modes. In USB/BE mode – Short press to Play/Pause the songs.
In FM/AUX/DVD mode – Short press to mute the set.
2. SOURCE: Short press to select the all modes (USB/FM/BE/AUX/DVD).
USB drive should be inserted to select the mode.
3. PREVIOUS/TUN-: In USB/BE mode - Short press to select the previous
song. In FM mode - Short press to adjust the FM down frequencies by
manual tuning-. Long press to auto tune the down frequency channels
one by one.
4. NEXT/TUN+: In USB/BE mode - Short press to select the next song.
In FM mode- Short press to adjust the FM Up frequencies by manual tuning+.
Long press to anto tune the up frequency channels one by one.
5. VOL-: Press to decrease the volume level in all modes.
6. VOL+: Press to increase the volume level in all modes.
7. MIC1 & MIC2 : Both MIC Sockets are to be used for wired MIC and MIC will
be worked in all modes.
(3) (4) (5) (6)
(8) (9) (10)
NO.2

Operation explanation:

SPECIFICATIONS:

Output Power: 12000W(RMS)
Drive Units: 4 x 6.5" +8 x 2.5"
Frequency Response: Satellites: 120Hz - 20KHz
Subwoofer: 20Hz - 170Hz
FM : 87.5-108 MHZ
Separation: ≥40dB
≥
S/N: 70dB
Distortion: ≤0.5% (1K,1W)
Power Supply: ~200V-240V 50Hz-60Hz
Dimensions: Subwoofer: W215xH820xD341.5(mm)
Satellite: W215xH820xD341.5(mm)

Features:

Ÿ Quality 2.0 speaker system with built-in amplifier
Ÿ Full audio spectrum performances, ideal for your favourite entertainment
from Mp3, Mp4, CD/DVD movies and digital playbacks
Ÿ Specially designed woofer cabinet for bass and resolution
Ÿ Comes with remote control and 3.5mm stereo connection

Package contents:

Subwoofer cabinet
Satellite speakers
Remote control
User manual
Audio input cord
FM ANT
Warranty card
8. MIC1 VOLUME KNOB: If Wired MIC or Cordless MIC is ON then rotate the
knob to adjust the MIC Volume level in all modes, This knob will be work
with both MIC (wired and cordless).
9. MIC2 VOLUME KNOB: If MIC is ON then rotate the knob to adjust the
MIC Volume level in all modes.
10. ECHO KNOB: If MIC is ON then rotate the knob to adjust the MIC
Echo effect in all modes.

How to use the remote control

(17)
(10)
(1) (11)
LED MUTE
(2)
(12)
TREBLE BASS
(3)
VOL+
(13)
(4) (14)
(5)
VOL-
(6)
(15)
AUX USB
(7) BT
(16)
(8) 0
DVD FM
1 2 3
5 6
4
8 9
(9) 7
1 pc
2 pcs
1 pc
1 pc
1 pc
1 pc
NO.1
1.
2. TREBLE
3.
VOL+
4.
5. VOL-
6.
AUX
7. BT
8. DVD
0~9
9.
LED
10.
11. MUTE
12.
BASS
13.
14.
15. USB
16. FM
17. Indicator light
NO.3
