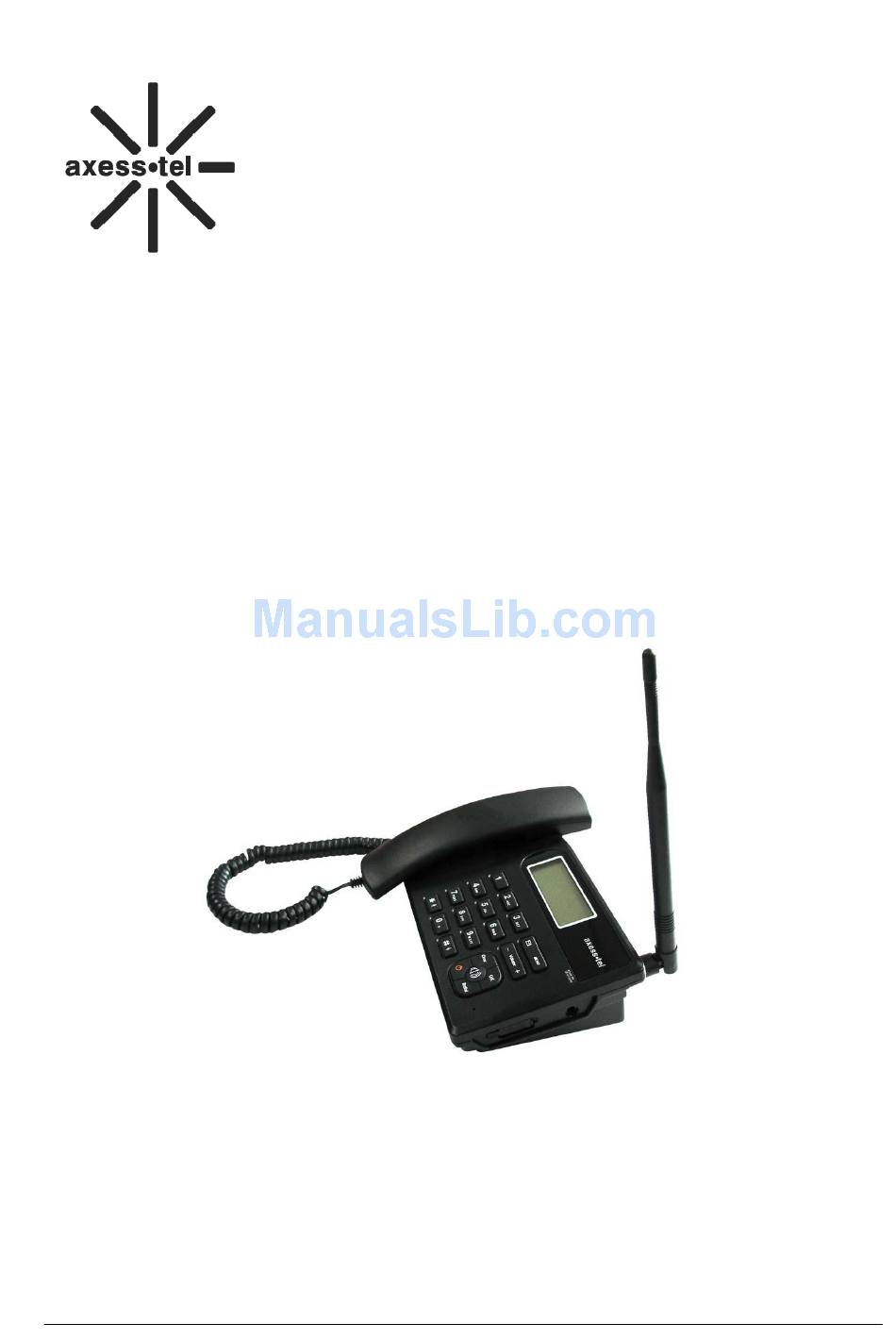

- Page 1 Axesstel Fixed Wireless Phone GSM PG130/131N User Manual...
-
Page 2: Table Of Contents
GSM FWP PG130/131N Index GENERAL INTRODUCTION ........................1 IMPORTANT INFORMATION ........................ 2 PRODUCT OVERVIEW ..........................3 ............................3 ACKING SETTING UP YOUR PHONE ......................4 ........................6 RODUCT NTRODUCTION 3.3.1 Appearance ............................6 3.3.2 Key Definition ........................... 6 3.3.3 FUNCTION KEYS ..........................7 3.3.4 GETTING TO KNOW YOUR PHONE ..................... - Page 3 GSM FWP PG130/131N 10.3 ............................21 10.4 ..............................21 LERT CONFIGURATION ........................... 21 11.1 ............................21 REETING 11.2 ........................... 22 ANGUAGE 11.3 LCD B .......................... 22 ACKLIGHT 11.4 LCD C ..........................22 ONTRAST 11.5 ..........................22 UTO SEND TIME 11.6 ............................
-
Page 4: General Introduction
PG130/131N 1 General Introduction Thank you for choosing the Axesstel GSM PG130/131N Desktop Phone. Please read this user manual carefully before using your phone . The phone has been designed to operate with the latest digital communication technology - GSM. -
Page 5: Important Information
GSM FWP PG130/131N 2 Important Information The product can only be installed indoors. Do not place the phone near high temperature objects, under direct sunlight, near source of water, near fire or near inflammable and explosive materials. Avoid using the phone in high temperature or humidity. -
Page 6: Product Overview
GSM FWP PG130/131N 3 Product Overview 3.1 Packing List Once you open the product package, please check the packing list to make sure there is no part missing. If any part is missing or broken, please contact customer service. The packing list is as follows: 1. -
Page 7: Setting Up Your Phone
GSM FWP PG130/131N 3.2 SETTING UP YOUR PHONE Installing SIM card 1. Remove SIM bracket cover. 2. Lift SIM bracket by pulling. 3. Insert proper SIM card. 4. Put the bracket back in place. 5. Close the cover. - Page 8 * Default PIN code is provided by your service provider. Installing the phone This phone operates by receiving DC power from the AXESSTEL power adaptor, The phone is equipped with a rechargeable Battery as a backup in case of an AC power failure.
-
Page 9: Product Introduction
GSM FWP PG130/131N 3.3 Product Introduction 3.3.1 Appearance Figure 1 GSM PG130/131N Fixed Wireless Phone Appearance 3.3.2 Key Definition Figure 2 Key Layout... -
Page 10: Function Keys
GSM FWP PG130/131N 3.3.3 FUNCTION KEYS 1. <Message> KEY: Press this key to retrieve messages. 2. <MENU> KEY: Press this key to display the phone's main menu. 3/4. <Volume - +> KEY: Press this key to control the volume of keypad, earpiece and speaker. -
Page 11: Getting To Know Your Phone
GSM FWP PG130/131N 3.3.4 GETTING TO KNOW YOUR PHONE 1. Antenna: Adjusting the position of antenna improves the sound quality of the call. 2. Message: Press to access message related menus. 3. MENU: Press to access the phone's menus. 4. Volume Up/Down: Lets you adjust sound levels and scroll through the menu options and displays. 5. -
Page 12: Display Icon
GSM FWP PG130/131N 3.3.5 Display Icon The following icon may appear on the display of the phone: Icon Description Current signal strength. The more bars there are, the stronger the signal is. No signal. Battery capacity indicator. The more bars there are, the more capacity the battery has. -
Page 13: Main Menu
GSM FWP PG130/131N 5 Main Menu 1） Press <<MENU> KEY to enter the main menu from the idle screen. The main menu includes: Contacts, Messages, Recent Calls, Tools, and Settings. The menu tree is as follow: All calls Dialled calls Received calls Call log Missed calls... -
Page 14: Call Log
GSM FWP PG130/131N Services Menu FM Status Channel list FM Radio(Optional) Manual input Preset auto search Settings Figure 4Main Menu Tree 1 Call log 6 Call Log 2 Contacts You can find- All Calls, Dialled Calls, Received Calls, Missed Calls, Back Delete all Log, and Call Duration in the Call Log menu. -
Page 15: Received Calls
GSM FWP PG130/131N 1 All call 2 Dialled calls 2) The Dialed Calls List will be displayed; you can scroll to the desired number, Back 1 123456789 3) Press <OK> KEY to: View the call information; Press <OK> KEY to select 2 987654321 Option: Delete the call log, Save the Number to Phone Book, Call, Edit this Back... -
Page 16: Missed Calls
GSM FWP PG130/131N 3 Received calls 6.4 Missed calls 3 Missed calls In Call log menu, Scroll to Missed Calls via <Volume - +> KEY, press Back <OK> KEY. 1 123456789 The Missed Calls List will be displayed; you can scroll to the desired 2 987654321 number, Back... -
Page 17: Contacts
GSM FWP PG130/131N 7 Contacts Contacts can be used to store contact’s name and contact’s phone numbers, 1 Call log home number, email address, office number and associate sound. You can 2 Contacts store up to 200 entries to phone memory. Back In standby screen, press <Menu>... -
Page 18: View A Contact
GSM FWP PG130/131N NOTE: If this operation in press <SPEAKER> or lift the HANDSET state of complete, May be conflict whit Auto send time function. 7.3 View a Contact In Contacts menu, Scroll to Search via <Volume - +> KEY, press <OK> KEY, input nothing, press <OK>... -
Page 19: Copy Contact
GSM FWP PG130/131N 7.7 Copy contact 5 Copy 6 Delete In Contact menu, scroll to Copy via <Volume - +>KEY, press <OK>KEY. Back You can copy the contact form SIM or phone via <Volume - +>KEY 1 From SIM If you select the From SIM, press<OK> KEY, and press <OK>KEY again to confirm. -
Page 20: Messages
GSM FWP PG130/131N The screen will display the memory status. SIM: 0/200 (current/total) Phone: 0/200 (current/total) 8 Messages You could build a new message, view the inbox、drafts、outbox and templates, perform SMS setting, voice mail broadcast message. In standby screen, you can enter Messages function through Press <SMS> key directly. 8.1 Send a Message 1 New Message You could send a message to one recipient or multiple recipients. -
Page 21: View Sent Messages
GSM FWP PG130/131N Use Number: get all numbers in the message includes the sender’s number. You can dial directly, or Send SMS directly, or save the number to phone book. 8.3 View Sent Messages In Messages, scroll to Outbox via and press <OK> KEY to view the outbox 5 Template Scroll to the message you want to read, press <OK>... -
Page 22: Voice Message
GSM FWP PG130/131N Scroll Memory status via <Volume - +> KEY and press <OK> KEY, you will check the SIM and Phone memory status 8.6 Voice Message 6 Voice Mail In standby screen, press<SMS>KEY, scroll to Voice mail item via<Volume 7 SMS settings - +>... -
Page 23: Set Alarm
GSM FWP PG130/131N If you want to change the format of time and date, select Set format in Time and alarm, press <OK> KEY. Scroll to Time format and press <OK> KEY to set time format, 12hr or 24hr; scroll to date format via <Volume - +>... -
Page 24: Volume
GSM FWP PG130/131N 10.2 Volume 2 Volume 3 Ring type In Sound menu, select Volume, and then press <OK> KEY , you can scroll to the volume for Ring Tone, Key Tone via <Volume - +> KEY. Back Press <OK> KEY enter the setting screen, press <Volume - +> KEY to set the volume, press <OK>... -
Page 25: Set Language
GSM FWP PG130/131N 11.2 Set Language 2 Language In Configuration menu, press<Volume - +> KEY scroll to Language item 3 Backlight and press<OK> KEY. Back Select Language in Configuration, o Automatic Scroll to desired language via <Volume - +> KEY, press <OK> KEY to o English set language. -
Page 26: Call Waiting
GSM FWP PG130/131N 11.6 Call Waiting 6 Call waiting In Configuration menu, press<Volume - +> KEY scroll to Call waiting item 7 Call divert and press<OK> KEY. Back If an incoming call is received while on another call, and the call waiting feature 1 Activate is enabled, you can suspend the current telephone call and switch to the new 2 Deativate... -
Page 27: Call Barring
GSM FWP PG130/131N 7 Call divert 8 Call barring 11.8 Call Barring Back In Configuration menu, press<Volume - +> KEY scroll to Call barring item and press<OK> KEY. 1 Outgoing calls Call Barring allows the user to prevent Incoming Calls and Outgoing 2 Incoming calls Calls. -
Page 28: Owner Number
GSM FWP PG130/131N Phone lock Enter Password PIN Lock Auto keypad lock Back Change PIN Lock Barred dial Hotline/PLAR Phone info Clear memory Restore factory settings 12.1 Owner number In Security menu, scroll to Owner Number item via <Volume - +> KEY, 1 Owner number press <OK>... -
Page 29: Barred Dial
GSM FWP PG130/131N 12.6 Barred dial In Security menu, scroll to Barred dial item via <Volume - +> KEY and press<OK> KEY. You can on/off bar incoming or outgoing. 12.7 Hotline/PLAR Hotline/PLAR is a feature that lets the phone autodial a call you set. In Security menu, scroll to Hotline/PLAR item via <Volume - +>... -
Page 30: Services
GSM FWP PG130/131N List Default Incoming call MIDI 1 Alarm MIDI 3 Power on Tone 1 Ringer Power off Tone 2 Message tone Tone 5 Sounds Keypad tone Tone Ring Tone Volume Key tone Ring type Repeat Alert Greeting Welcome Configuration Contrast 13 Services... -
Page 31: Manual Input
GSM FWP PG130/131N Press < Volume - +> KEY scroll to Frequency press Numeric Keys and <#> KEY input a proper frequency Note: press <#> key input “.” Press <OK> KEY to save this channel. 1 ChannelName Into Channel list again select saved channel press <OK> KEY play, delete or edit this channel.
